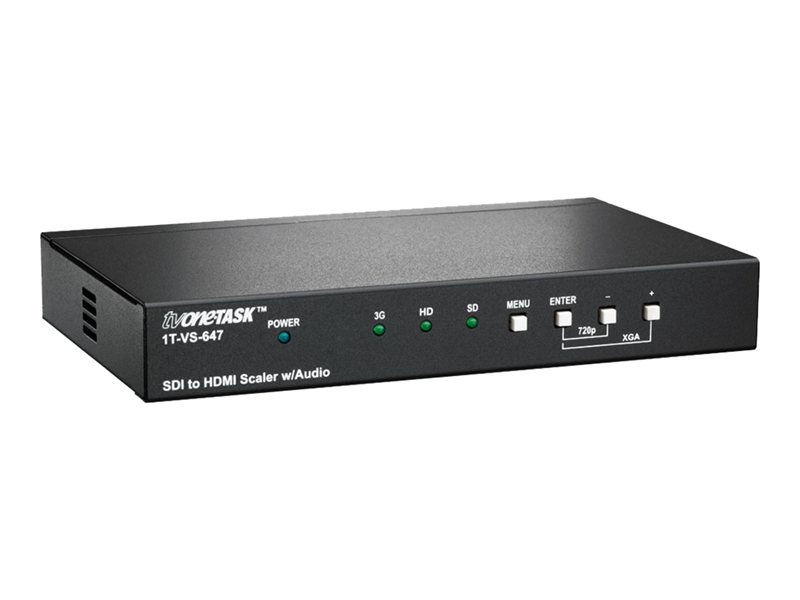

Video converter - 3G-HDSDI - HDMI, 3G-HDSDI
| Main Specifications | |
|---|---|
| Product Description | TV One-Task 1T-VS-647 - video converter |
| Device Type | Video converter |
| Max Resolution | 1920 x 1080 |
| Interfaces | 1 x 3G-HDSDI input - BNC ¦ 1 x 3G-HDSDI output - BNC ¦ 1 x HDMI output - 19 pin HDMI Type A ¦ 1 x audio line-out - RCA x 2 ¦ 1 x audio line-out - RCA |
| Dimensions (WxDxH) | 7.1 in x 5.6 in x 1.2 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video converter |
| Max Resolution | 1920 x 1080 |
| Interfaces | 1 x 3G-HDSDI input - BNC ¦ 1 x 3G-HDSDI output - BNC ¦ 1 x HDMI output - 19 pin HDMI Type A ¦ 1 x audio line-out - RCA x 2 ¦ 1 x audio line-out - RCA |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Compliant Standards | UL, cUL, GS, FCC, RoHS |
| Width | 7.1 in |
| Depth | 5.6 in |
| Height | 1.2 in |
| Weight | 16.22 oz |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| System Requirements | |
| Voltage Required | DC 12 V |
