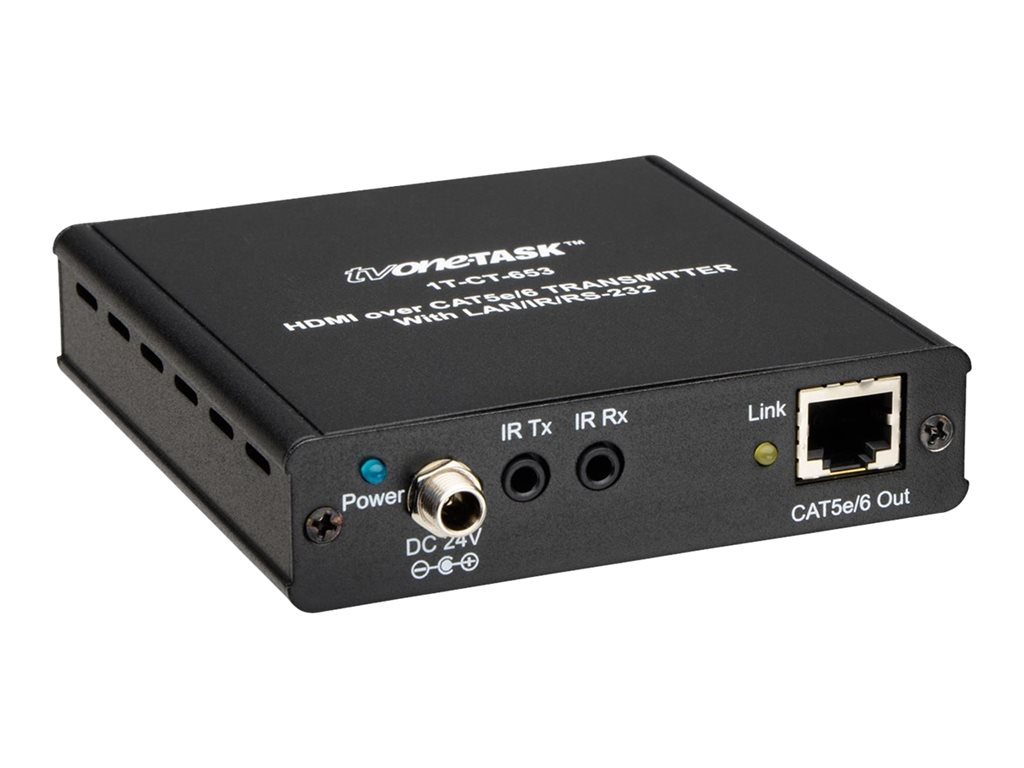

Video/audio/infrared/serial/network extender - transmitter - 100Mb LAN, RS-232, HDMI, HDBaseT - up to 328 ft
| Main Specifications | |
|---|---|
| Product Description | TV One 1T-CT-653 Transmitter - video/audio/infrared/serial/network extender - 10Mb LAN, 100Mb LAN, RS-232, HDMI, HDBaseT |
| Device Type | Video/audio/infrared/serial/network extender (transmitter) |
| Form Factor | External |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, RS-232, HDMI, HDBaseT |
| Max Transfer Distance | 328 ft |
| Dimensions (WxDxH) | 4 in x 4.4 in x 1 in |
| Weight | 8.89 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio/infrared/serial/network extender (transmitter) |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI female ¦ 1 x HDBaseT - RJ-45 female ¦ 2 x IrDA - mini jack female ¦ 1 x RS-232 - DB-9 female ¦ 1 x Ethernet 100Base-TX - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Compliant Standards | UL, cUL, GS, FCC, RoHS, PSE Mark |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, RS-232, HDMI, HDBaseT |
| Max Transfer Distance | 328 ft |
| Features | HDCP compliant, 4K resolution support, HDBaseT technology, 2K resolution support |
| Compliant Standards | HDCP 1.1, DVI 1.0 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 4 in |
| Depth | 4.4 in |
| Height | 1 in |
| Weight | 8.89 oz |
