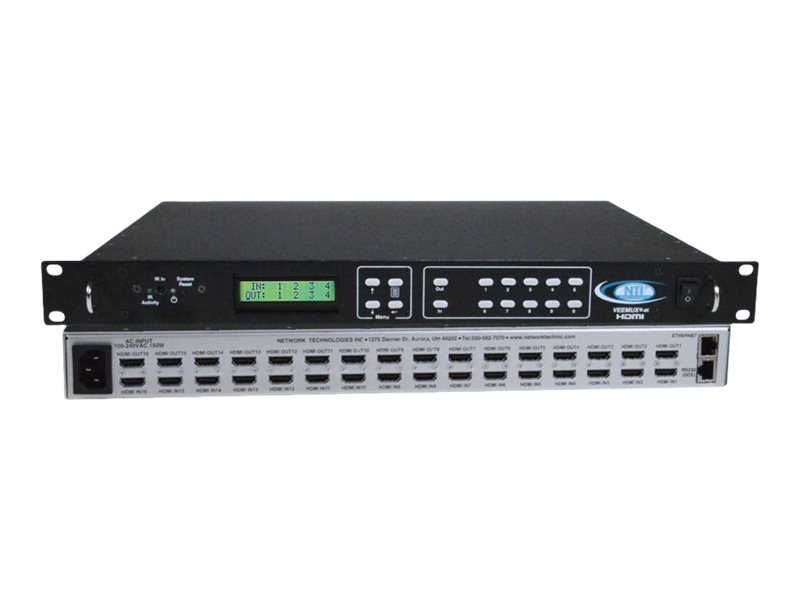

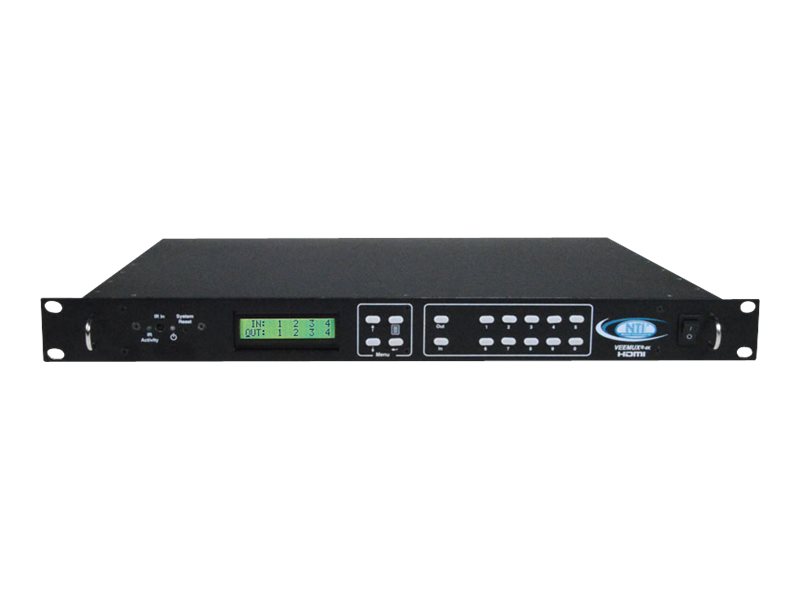

Video/audio switch - rack-mountable - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | NTI VEEMUX SM-16X16-HD4K - video/audio switch - rack-mountable - TAA Compliant |
| Device Type | Video/audio switch |
| Enclosure Type | Rack-mountable 1U |
| Subtype | HDMI |
| Performance | Bandwidth: 18 Gbps |
| Remote Management Protocol | HTTP, HTTPS, DHCP |
| Features | ARP support, HDCP compliant, IPv4 support, 3D support, 7.1 channel audio support, 12-bit Deep Color support, LPCM 7.1 support, Dolby TrueHD support, DTS-HD Master Audio support, Dolby Digital support, HDR support, 4:4:4 chroma subsampling support, managed, UDP support |
| Compliant Standards | HDCP 1.4, HDCP 2.2 |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 19 in x 14.6 in x 1.7 in |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Video/audio switch |
| Enclosure Type | Rack-mountable 1U |
| Subtype | HDMI |
| Performance | Bandwidth: 18 Gbps |
| Remote Management Protocol | HTTP, HTTPS, DHCP |
| Encryption Algorithm | TLS 1.2 |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Max Video Bandwidth | 600 MHz |
| Features | ARP support, HDCP compliant, IPv4 support, 3D support, 7.1 channel audio support, 12-bit Deep Color support, LPCM 7.1 support, Dolby TrueHD support, DTS-HD Master Audio support, Dolby Digital support, HDR support, 4:4:4 chroma subsampling support, managed, UDP support |
| Compliant Standards | HDCP 1.4, HDCP 2.2 |
| Expansion / Connectivity | |

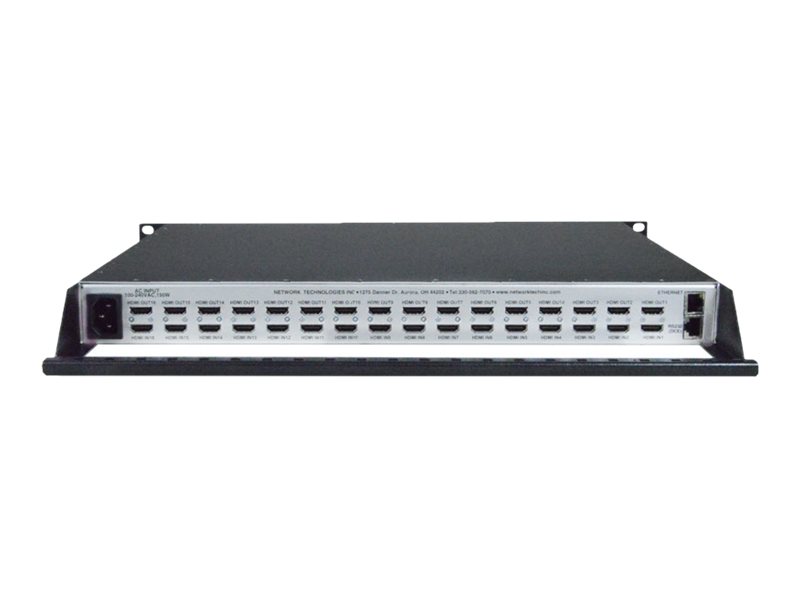

| Interfaces | 16 x HDMI input ¦ 16 x HDMI output ¦ 1 x serial (RS-232) RJ-45 ¦ 1 x management RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | RoHS |
| TAA Compliant | Yes |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -22 °F |
| Max Storage Temperature | 140 °F |
| Humidity Range Storage | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 14.6 in |
| Height | 1.7 in |
