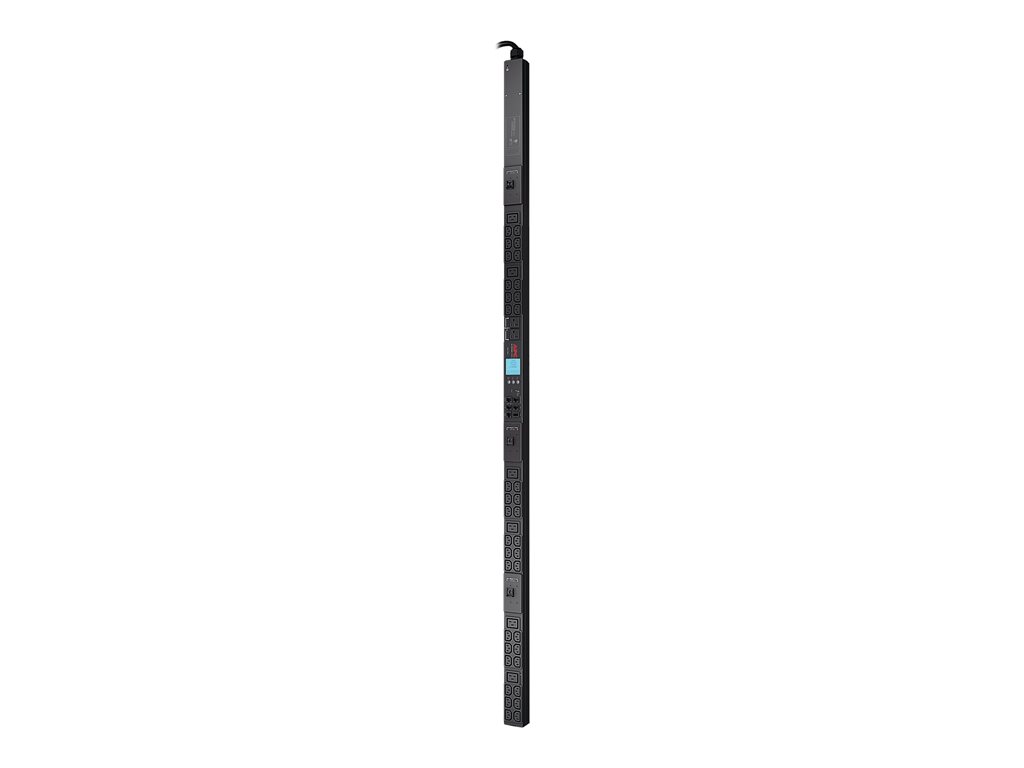

Power distribution strip (rack-mountable) - AC 208 V - 8.6 kW - input: NEMA L21-30 - output connectors: 44 (6 x IEC 60320 C19, 2 x NEMA 5-20, 36 x IEC 60320 C13) - 0U - 6 ft cord - black
| Main Specifications | |
|---|---|
| Product Description | APC Metered Rack PDU - power distribution strip - 8.6 kW |
| Device Type | Power distribution strip - rack-mountable |
| Cord Length | 6 ft |
| Rack Size | 0U |
| Weight | 16.75 lbs |
| Input Voltage | AC 208 V |
| Output Voltage | AC 208 V |
| Power Capacity | 8.6 kW |
| Input Connectors | Power NEMA L21-30 |
| Output connectors | 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 ¦ 2 x power NEMA 5-20 |
| Remote Management Protocol | SNMP, Telnet, HTTP |
| Color | Black |
| Dimensions (WxDxH) | 2.2 in x 1.8 in x 70.5 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution strip - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 6 ft |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x management |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 6 ft ¦ Serial cable - external |
| Rack Mounting Kit | Included |
| Features | LCD display, current meter, LED indicators, overload protection |
| Compliant Standards | CSA C22.2, RoHS, UL 60950-1 |
| Networking | |
| Remote Management Protocol | SNMP, Telnet, HTTP |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 95% |
| Power Device | |
| Input Voltage | AC 208 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power NEMA L21-30 |
| Power Output Connectors Details | 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 ¦ 2 x power NEMA 5-20 |
| Output Voltage | AC 208 V |
| Max Electric Current | 30 A |
| Power Capacity | 8.6 kW |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 1.8 in |
| Height | 70.5 in |
| Weight | 16.75 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.4 in |
| Shipping Depth | 4.2 in |
| Shipping Height | 78.7 in |
| Shipping Weight | 20.28 lbs |
