Router - WWAN 2-port switch - 1GbE
| Main Specifications | |
|---|---|
| Product Description | Pepwave MAX BR1 ENT - router - WWAN - desktop |
| Device Type | Router - wireless cellular modem - 2-port switch (integrated) |
| Enclosure Type | Desktop |
| Digital Signaling Protocol | H.323 |
| Cellular Protocol | LTE Advanced Pro |
| Cellular Band | LTE B13, LTE B2, LTE B4, LTE B12, LTE B3, LTE B7, LTE B20, LTE B1, LTE B26, LTE B5, LTE B29, LTE B8, LTE B66, LTE B30, LTE B41, LTE B18, LTE B19, LTE B46, LTE B9, LTE B14, LTE B32, LTE B42, LTE B43, LTE B48, DC-HSPA+ B1, DC-HSPA+ B2, DC-HSPA+ B4, DC-HSPA+ B5, DC-HSPA+ B6, DC-HSPA+ B8, DC-HSPA+ B9, DC-HSPA+ B19 |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Routing throughput: 300 Mbps ¦ Downlink bandwidth: 600 Mbps ¦ Uplink bandwidth: 150 Mbps ¦ PepVPN/SpeedFusion throughput: 100 Mbps ¦ PepVPN/SpeedFusion throughput (256-bit AES): 60 Mbps |
| Capacity | Recommended users: 25 - 150 ¦ 802.1q virtual interfaces (VLANs): 16 ¦ IPSec tunnels: 5 ¦ Maximum PPTP/L2TP/OpenVPN users: 3 |
| Network / Transport Protocol | IPSec, PPPoE, DHCP, DNS, DDNS |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI |
| VoIP Protocols | H.323, SIP |
| Features | NAT support, VLAN support, Syslog support, DoS attack prevention, ALG support, High Availability, IPSec VPN, DHCP server, DNS proxy, port forwarding, reset button, SPIF, e-mail notification, DHCP reservation, metal housing, SpeedFusion technology, Web Filtering, port-based VLAN, black list, Advanced QoS, DynDNS, InControl Cloud Management, PepVPN, FirstNet ready |
| Compliant Standards | IEEE 802.1Q, UPnP |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 5.8 in x 5 in x 1.6 in |
| Weight | 15.34 oz |
| Localization | Americas |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Router - 2-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Routing throughput: 300 Mbps ¦ Downlink bandwidth: 600 Mbps ¦ Uplink bandwidth: 150 Mbps ¦ PepVPN/SpeedFusion throughput: 100 Mbps ¦ PepVPN/SpeedFusion throughput (256-bit AES): 60 Mbps |
| Capacity | Recommended users: 25 - 150 ¦ 802.1q virtual interfaces (VLANs): 16 ¦ IPSec tunnels: 5 ¦ Maximum PPTP/L2TP/OpenVPN users: 3 |
| Network / Transport Protocol | IPSec, PPPoE, DHCP, DNS, DDNS |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI |
| Encryption Algorithm | 256-bit AES |
| Authentication Method | RADIUS |
| Features | NAT support, VLAN support, Syslog support, DoS attack prevention, ALG support, High Availability, IPSec VPN, DHCP server, DNS proxy, port forwarding, reset button, SPIF, e-mail notification, DHCP reservation, metal housing, SpeedFusion technology, Web Filtering, port-based VLAN, black list, Advanced QoS, DynDNS, InControl Cloud Management, PepVPN, FirstNet ready |
| Compliant Standards | IEEE 802.1Q, UPnP, FCC, RoHS |
| Built-in Devices | GPS |
| Status Indicators | Status, cellular mode |
| Expansion / Connectivity | |

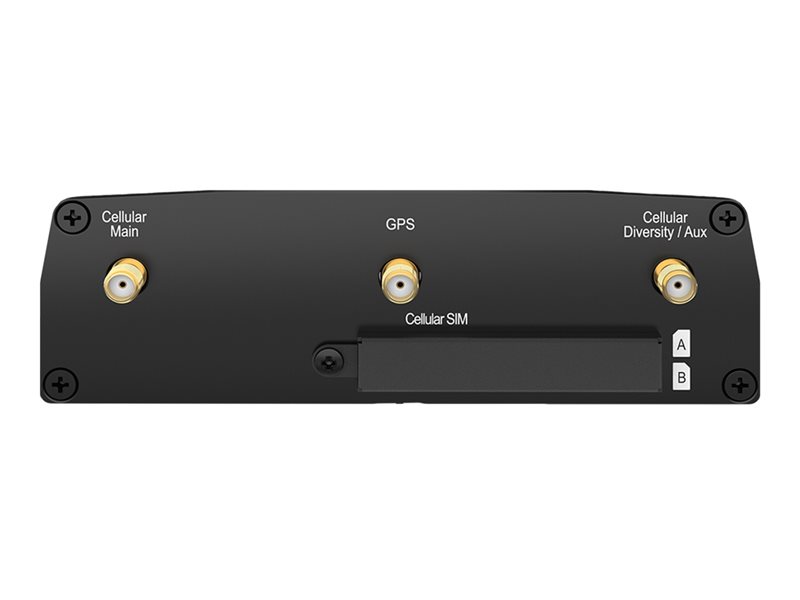

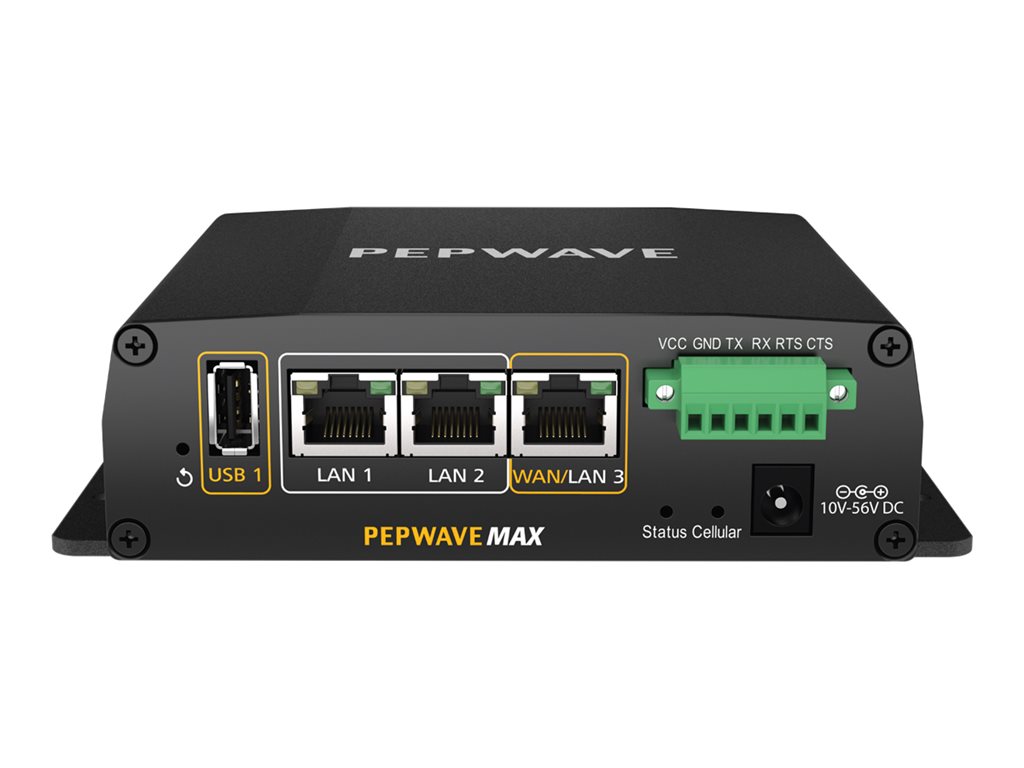

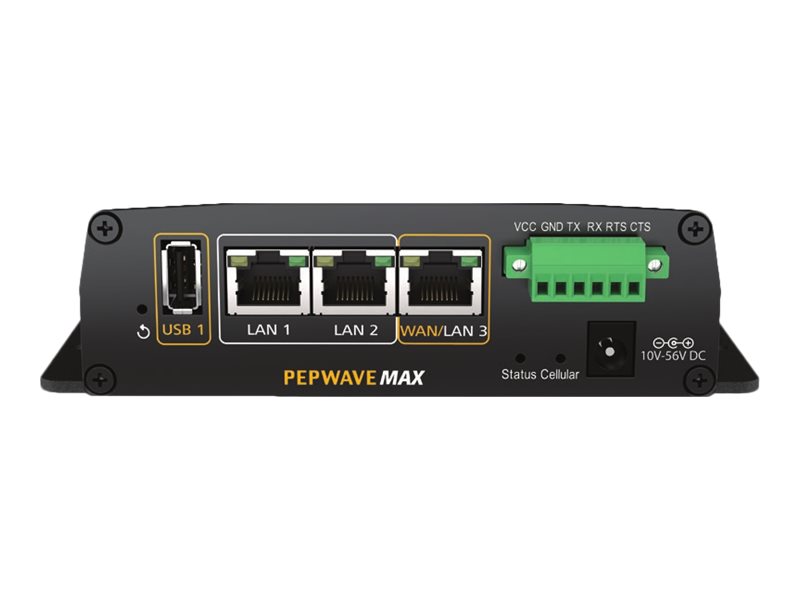

| Interfaces | WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB: 1 x 4 pin USB Type A ¦ Antenna: 2 x SMA ¦ AUX: 1 x SMA |
| Expansion Slots | 2 (total) / 2 (free) x Mini-SIM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | GPS antenna, terminal block connector, 2 x LTE antennas |
| Localization | Americas |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 11 watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Communications | |
| Type | Wireless cellular modem |
| Digital Signaling Protocol | H.323 |
| Cellular Protocol | LTE Advanced Pro |
| Cellular Band | LTE B13, LTE B2, LTE B4, LTE B12, LTE B3, LTE B7, LTE B20, LTE B1, LTE B26, LTE B5, LTE B29, LTE B8, LTE B66, LTE B30, LTE B41, LTE B18, LTE B19, LTE B46, LTE B9, LTE B14, LTE B32, LTE B42, LTE B43, LTE B48, DC-HSPA+ B1, DC-HSPA+ B2, DC-HSPA+ B4, DC-HSPA+ B5, DC-HSPA+ B6, DC-HSPA+ B8, DC-HSPA+ B9, DC-HSPA+ B19 |
| Max Transfer Rate | 600 Mbps |
| Dimensions & Weight | |
| Width | 5.8 in |
| Depth | 5 in |
| Height | 1.6 in |
| Weight | 15.34 oz |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 2 |
| IP Telephony | |
| VoIP Protocols | H.323, SIP |
