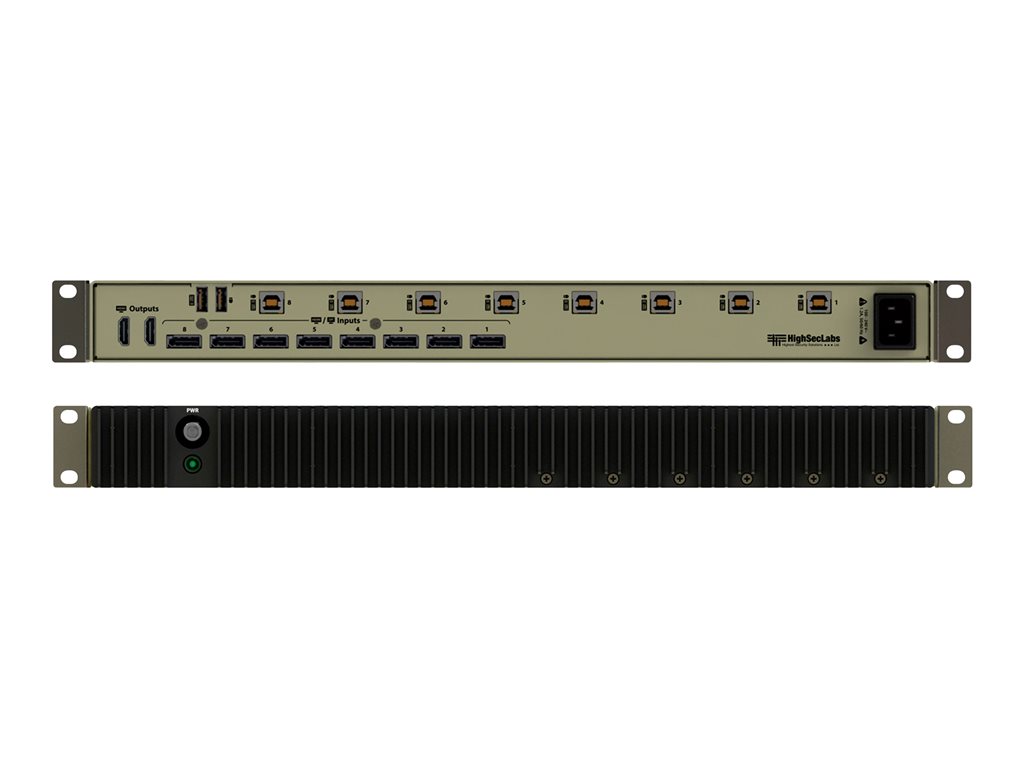

KVM / USB switch - 8 x KVM / USB - 1 local user - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | HighSecLabs Secure - KVM / USB switch - 8 ports - rack-mountable |
| Device Type | KVM / USB switch - 8 ports |
| Enclosure Type | Rack-mountable |
| Subtype | KVM |
| Ports | 8 x KVM / USB |
| KVM Users Qty | 1 local user |
| Features | 4K resolution support |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 17.6 in x 11.8 in x 1.7 in |
| Weight | 7.5 lbs |
| System Requirements | Apple MacOS, Linux, Microsoft Windows |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | KVM / USB switch - 8 ports |
| Enclosure Type | Rack-mountable |
| Subtype | KVM |
| Ports | 8 x KVM / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Features | 4K resolution support |
| Expansion / Connectivity | |
| Interfaces | 8 x DisplayPort/HDMI input ¦ 8 x keyboard (USB) / mouse (USB) Type B ¦ 1 x keyboard (USB) Type A console ¦ 1 x mouse (USB) Type A console ¦ 2 x HDMI console |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| MTBF | 10 years |
| Compliant Standards | FCC Class B certified, TUV, VCCI, RCM |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 35 Watt |
| Software / System Requirements | |
| OS Required | Apple MacOS, Linux, Microsoft Windows |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Dimensions & Weight | |
| Width | 17.6 in |
| Depth | 11.8 in |
| Height | 1.7 in |
| Weight | 7.5 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23 in |
| Shipping Depth | 16.5 in |
| Shipping Height | 7.2 in |
| Shipping Weight | 14.77 lbs |
