Firewall - 14 ports - 1GbE - Wi-Fi - 2.4 GHz - 1U - desktop
| Main Specifications | |
|---|---|

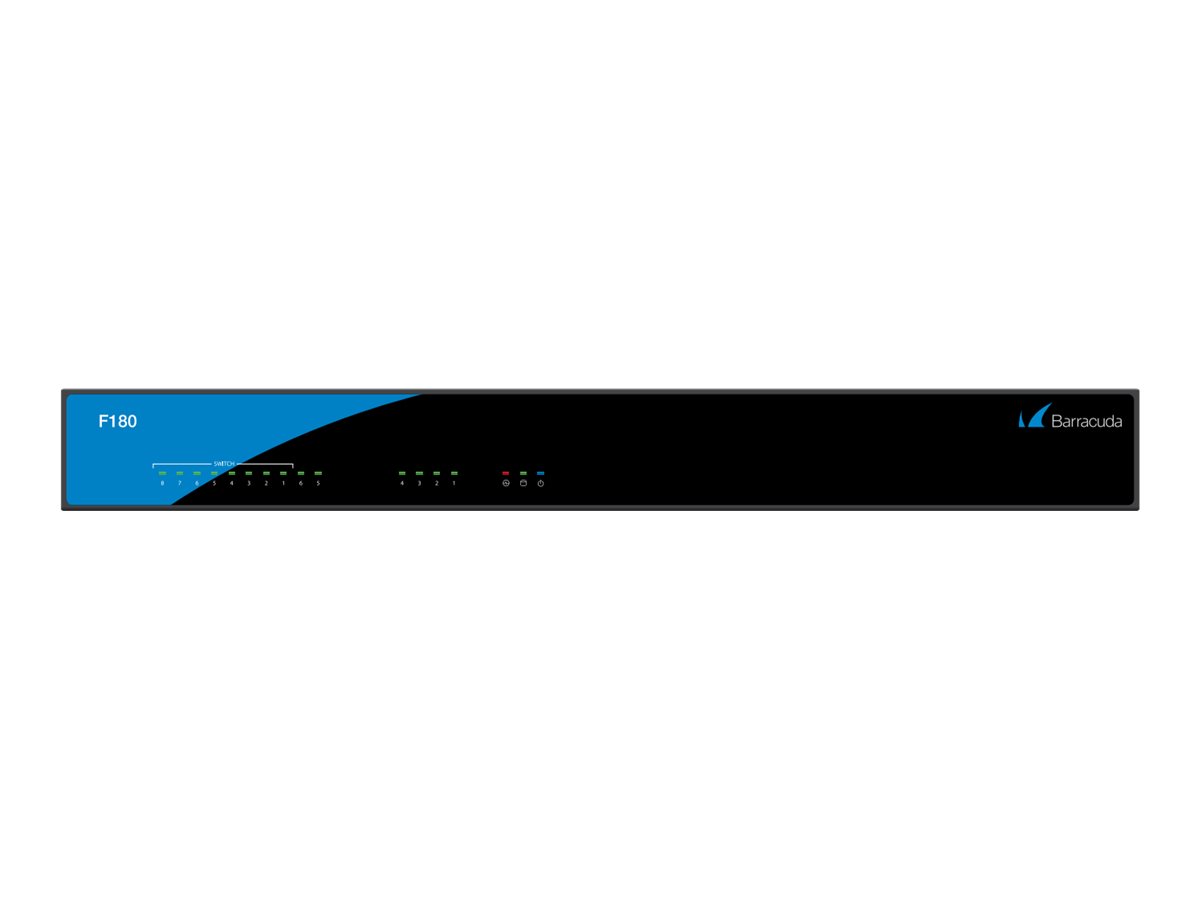

| Product Description | Barracuda CloudGen Firewall F-Series F180 - firewall - Wi-Fi |
| Device Type | Firewall |
| Form Factor | Desktop - 1U |
| Localization | EMEA, International |
| Processor | 1 x Intel Atom |
| RAM | 2 GB |
| Hard Drive | 80 GB x 1 |
| Ports Qty | 14 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Performance | Firewall throughput (UDP): 1.7 Gbps ¦ VPN throughput (128-bit AES, TINA): 300 Mbps ¦ VPN throughput (256-bit AES, TINA): 260 Mbps ¦ VPN throughput (256-bit AES, SHA-256): 220 Mbps ¦ VPN throughput (256-bit AES, MD5): 240 Mbps ¦ VPN throughput (256-bit AES, GCM): 220 Mbps ¦ IPS throughput (UDP): 500 Mbps ¦ NGFW throughput: 550 Mbps ¦ Threat protection throughput: 480 Mbps |
| Capacity | Concurrent sessions: 100000 ¦ New sessions per second: 9000 ¦ Maximum number of users: 75 - 150 |
| VoIP Protocols | H.323, SCCP, SIP |
| Included Accessories | USB flash drive, rack mount kit, wall mounting kit |
| OS Required | Linux Kernel 2.4, Linux Kernel 2.6, Microsoft Windows Vista / 7 / 8 / 10, Apple MacOS X 10.5 - 10.11 |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 14.9 in x 6.4 in x 1.7 in |
| Weight | 4.63 lbs |
| General | |
| Device Type | Firewall |
| Height (Rack Units) | 1U |
| Built-in Devices | LED panel, 8-port switch |
| Width | 14.9 in |
| Depth | 6.4 in |
| Height | 1.7 in |
| Weight | 4.63 lbs |
| Localization | EMEA, International |
| Expansion / Connectivity | |
| Interfaces | 14 x 1000Base-T - RJ-45 ¦ 4 x USB 2.0 - Type A ¦ 1 x console - RJ-45 ¦ 1 x VGA - HD-15 |
| Miscellaneous | |
| Included Accessories | USB flash drive, rack mount kit, wall mounting kit |
| Cables Included | 1 x network cable ¦ 1 x serial cable |
| MTBF | 5 years |
| Compliant Standards | FCC, RoHS |
| Networking | |
| Form Factor | Desktop |
| Ports Qty | 14 |
| Connectivity Technology | Wireless, wired |
| Line Coding Format | DBPSK, DQPSK, CCK, 64 QAM, BPSK, QPSK, 16 QAM, OFDM, DSSS |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Spread Spectrum Method | OFDM, DSSS |
| Switching Protocol | Ethernet |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, IPSec, PPPoE, PPPoA, ARP, SMTP, FTP, DHCP, DNS, POP3, SMB, DDNS, SMTPS |
| Routing Protocol | OSPF, RIP, BGP |
| Remote Management Protocol | SNMP, HTTP, SSH, CLI, SMTP, SMTPS |
| Frequency Band | 2.4 GHz |
| Performance | Firewall throughput (UDP): 1.7 Gbps ¦ VPN throughput (128-bit AES, TINA): 300 Mbps ¦ VPN throughput (256-bit AES, TINA): 260 Mbps ¦ VPN throughput (256-bit AES, SHA-256): 220 Mbps ¦ VPN throughput (256-bit AES, MD5): 240 Mbps ¦ VPN throughput (256-bit AES, GCM): 220 Mbps ¦ IPS throughput (UDP): 500 Mbps ¦ NGFW throughput: 550 Mbps ¦ Threat protection throughput: 480 Mbps |
| Capacity | Concurrent sessions: 100000 ¦ New sessions per second: 9000 ¦ Maximum number of users: 75 - 150 |
| Status Indicators | Power, HDD activity, status, link/activity |
| Features | Firewall protection, NAT support, VPN support, PAT support, ARP support, traffic shaping, Stateful Packet Inspection (SPI), DoS attack prevention, Intrusion Detection System (IDS), IPv6 support, Intrusion Prevention System (IPS), DDos attack prevention, IPSec Virtual Private Network (VPN), anti-spam protection, Quality of Service (QoS), SSH support, DHCP server, FTP proxy, HTTP proxy, IPv4 support, web threat protection, e-mail protection, DHCP relay, anti-spoofing protection, SNMP trap, DHCP client, Virtual Routing and Forwarding (VRF), SMS remote control, DNS caching, VoIP support, anti-virus protection, traffic replication, event notification, Web Filtering, push notification, 1 fan, Jumbo Frames support (up to 9000 bytes), black list, white list, bridge mode, Transparent Proxy, built-in hardware crypto accelerator, flooding detection |
| Encryption Algorithm | DES, Triple DES, Blowfish, CAST, 128-bit WEP, 64-bit WEP, SSL, TLS, WPA, WPA2, PKI, 128-bit AES, 256-bit AES |
| Authentication Method | SecurID, RADIUS, X.509 certificates, TACACS+, LDAP, Active Directory, NTLM |
| Compliant Standards | IEEE 802.1Q, IEEE 802.11b, IEEE 802.11g, X.509, IEEE 802.11n |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 45 Watt |
| Software / System Requirements | |
| OS Required | Linux Kernel 2.4, Linux Kernel 2.6, Microsoft Windows Vista / 7 / 8 / 10, Apple MacOS X 10.5 - 10.11 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x Intel Atom |
| RAM | 2 GB |
| Hard Drive | SSD 80 GB x 1 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 30.9 in |
| Shipping Depth | 19.5 in |
| Shipping Height | 18.5 in |
| Shipping Weight | 9.92 lbs |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 2 |
| IP Telephony | |
| VoIP Protocols | H.323, SCCP, SIP |
