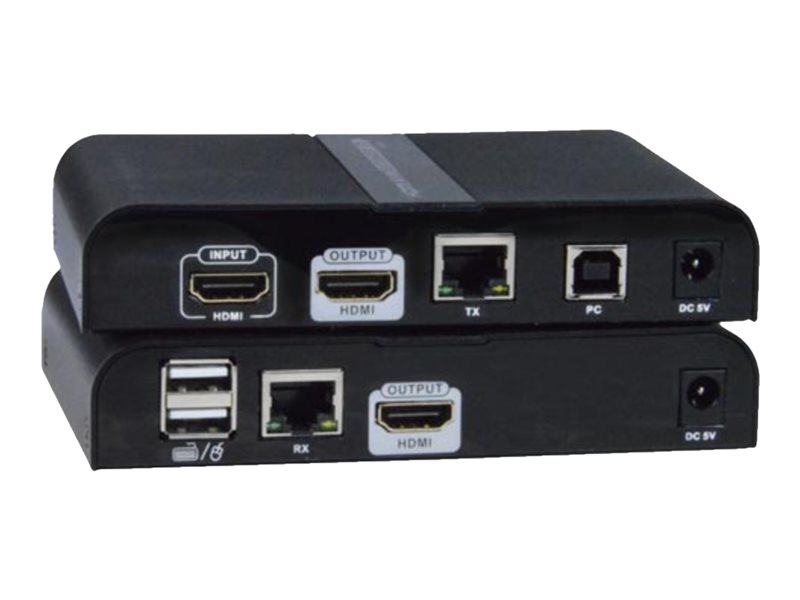

Remote and local unit - KVM / USB extender - USB 2.0, HDMI - over CAT 6/6a/7 - USB - up to 328 ft
| Main Specifications | |
|---|---|
| Product Description | NTI XTENDEX ST-IPUSB4K-LC - remote and local unit - KVM / USB extender - USB 2.0, HDMI |
| Device Type | KVM / USB extender - USB |
| Form Factor | External |
| Data Link Protocol | USB 2.0, HDMI |
| Transmission Medium | CAT 6/6a/7 |
| Max Transfer Distance | 328 ft |
| Power | AC 100-240 V |
| System Requirements | SunSoft Solaris, Linux, Microsoft Windows 2000 Server, FreeBSD, Microsoft Windows Server 2003, Apple MacOS 9.x or later, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/10 |
| Dimensions (WxDxH) | 5.2 in x 3.5 in x 1 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | KVM / USB extender |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (remote unit) - 19 pin HDMI Type A ¦ 2 x USB keyboard / USB mouse (remote unit) ¦ 1 x network (remote unit) - RJ-45 ¦ 1 x HDMI input (local unit) - 19 pin HDMI Type A ¦ 1 x HDMI output (local unit) - 19 pin HDMI Type A ¦ 1 x USB 2.0 (local unit) - Type B ¦ 1 x network (local unit) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x USB-A to USB-B cable - 3.3 ft |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | USB 2.0, HDMI |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Max Video Bandwidth | 340 MHz |
| Max Transfer Distance | 328 ft |
| Features | LPCM 7.1 support, EDID Management, 36-bit Deep Color support, DTS support |
| Compliant Standards | HDCP 1.4 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | SunSoft Solaris, Linux, Microsoft Windows 2000 Server, FreeBSD, Microsoft Windows Server 2003, Apple MacOS 9.x or later, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/10 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 5.2 in |
| Depth | 3.5 in |
| Height | 1 in |
