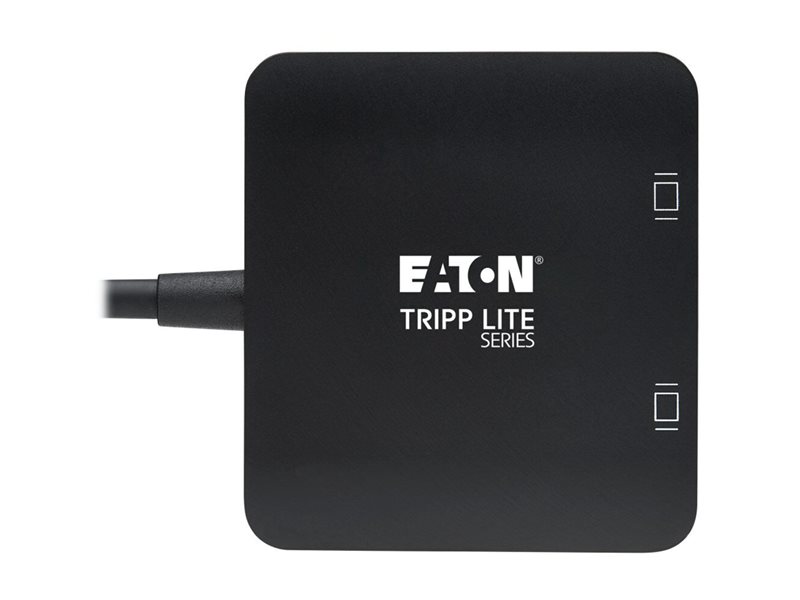

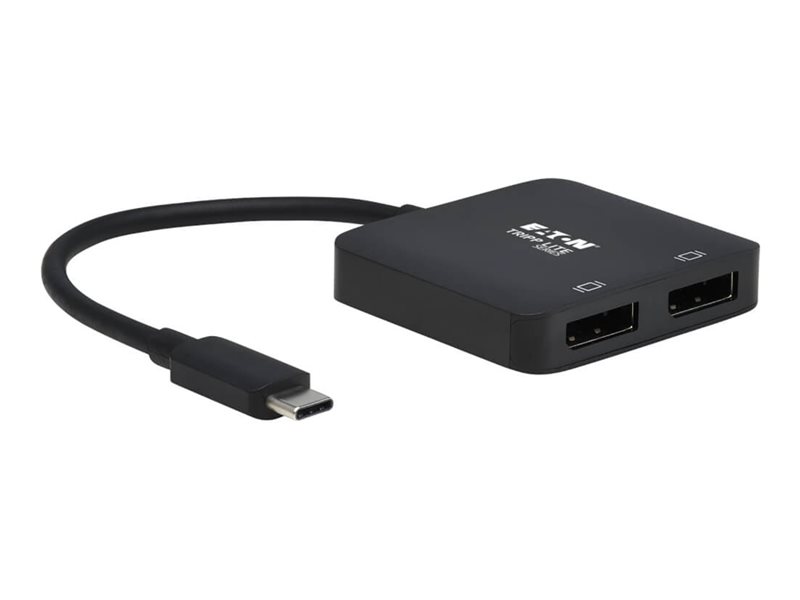

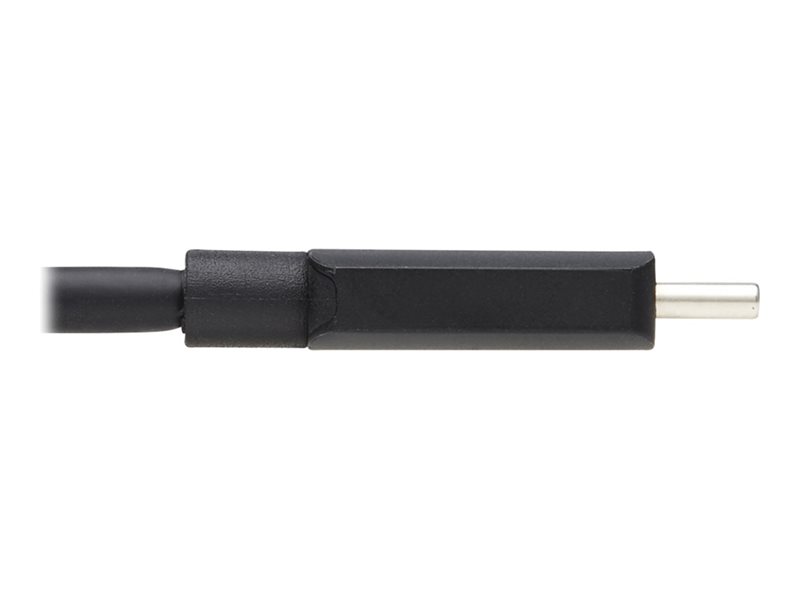

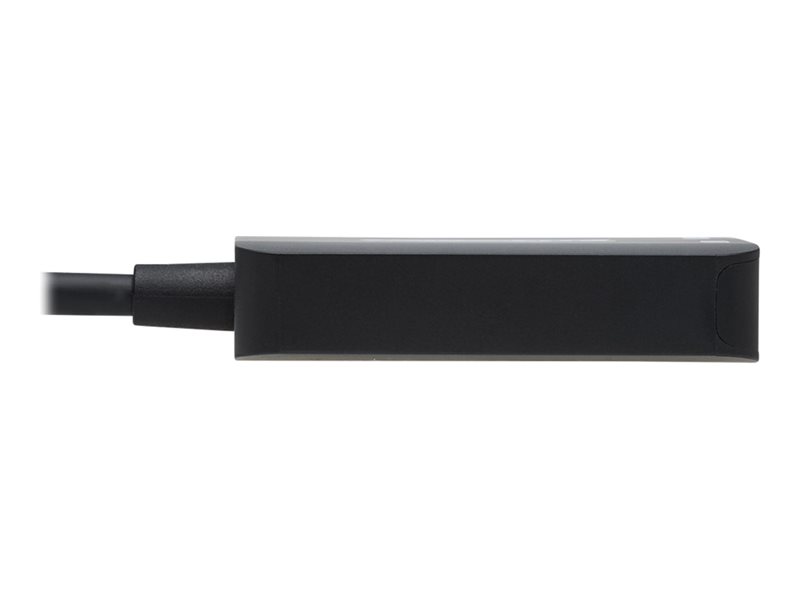

4K 60 Hz DisplayPort, 8K, HDR, 4:4:4, HDCP 2.2, DP 1.4 Alt Mode, Black - Adapter - 24 pin USB-C (M) to DisplayPort (F) - USB 3.1 Gen 2 / DisplayPort 1.4 - 4.7 in - 8K30Hz support - black
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series USB-C Adapter, Dual Display - 4K 60 Hz DisplayPort, 8K, HDR, 4:4:4, HDCP 2.2, DP 1.4 Alt Mode, Black - video adapter - USB-C to DisplayPort - 12 cm |
| Type | Video adapter |
| Features | 8K30Hz support, HDR support, DisplayPort Multi-Stream Transport (MST), 7.1 audio channel support, Chroma subsampling (4:4:4), Chroma subsampling (4:2:2), Chroma subsampling (4:2:0), 3D support, Mirror mode, Extended Mode, outer diameter 4.3 mm |
| Cable Length | 12 cm |
| Connector | 24 pin USB-C - male |
| Connector (Second End) | 2 x 20 pin DisplayPort - female |
| Compliant Standards | USB 3.1 Gen 2 / DisplayPort 1.4 |
| Color | Black |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Type | Video adapter |
| American Wire Gauge (AWG) | 24/32/34 |
| Plated Connector | Nickel |
| Features | 8K30Hz support, HDR support, DisplayPort Multi-Stream Transport (MST), 7.1 audio channel support, Chroma subsampling (4:4:4), Chroma subsampling (4:2:2), Chroma subsampling (4:2:0), 3D support, Mirror mode, Extended Mode, outer diameter 4.3 mm |
| Cable Length | 12 cm |
| Color | Black |
| Width | 2.2 in |
| Depth | 2 in |
| Height | 0.5 in |
| Weight | 1.41 oz |
| Miscellaneous | |
| Compliant Standards | USB 3.1 Gen 2 / DisplayPort 1.4, Plug and Play, FCC, RoHS, REACH, HDCP 2.2, HDCP 1.4 |
| Connectivity | |
| Connector | 24 pin USB-C - male |
| Connector (Second End) | 2 x 20 pin DisplayPort - female |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 4.7 in |
| Shipping Depth | 3.9 in |
| Shipping Height | 0.8 in |
| Shipping Weight | 1.76 oz |
| Service & Support | 3-year warranty |
