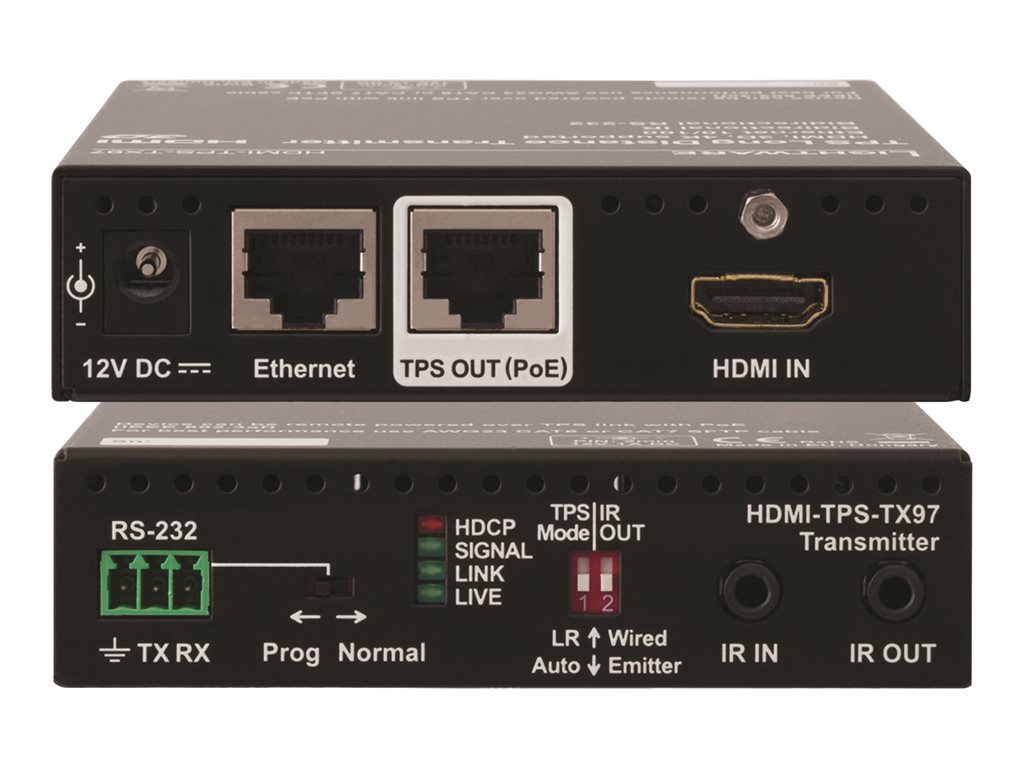

Video/audio/infrared/serial/network extender - transmitter - 100Mb LAN, RS-232, HDMI, HDBaseT, infrared - over CATx - up to 558 ft
| Main Specifications | |
|---|---|
| Product Description | Lightware TPS HDMI-TPS-TX97 - video/audio/infrared/serial/network extender - 10Mb LAN, 100Mb LAN, RS-232, HDMI, HDBaseT, infrared |
| Device Type | Video/audio/infrared/serial/network extender (transmitter) |
| Form Factor | External |
| Data Transfer Rate | 10.2 Gbps |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, RS-232, HDMI, HDBaseT, infrared |
| Transmission Medium | CATx |
| Max Transfer Distance | 558 ft |
| Power Over Ethernet (PoE) | PoE |
| Dimensions (WxDxH) | 4 in x 4 in x 1 in |
| Weight | 11.64 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio/infrared/serial/network extender (transmitter) |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x RS-232 - 3 pin terminal block female ¦ 1 x IR (input) - mini jack female ¦ 1 x IR (output) - mini jack female ¦ 1 x HDBaseT (PoE) - RJ-45 female ¦ 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | HDCP, EDID compatible |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, RS-232, HDMI, HDBaseT, infrared |
| Data Transfer Rate | 10.2 Gbps |
| Max Resolution | 4096 x 2160 @ 30 Hz |
| Max Transfer Distance | 558 ft |
| Status Indicators | Status, link/activity, HDCP, video |
| Features | HDCP compliant, 3D support, 4K resolution support, Advanced EDID Management, HDCP Pass-Through |
| Power | |
| Power Over Ethernet (PoE) | PoE |
| Power Device | External power adapter |
| Power Consumption Operational | 5.3 Watt |
| Dimensions & Weight | |
| Width | 4 in |
| Depth | 4 in |
| Height | 1 in |
| Weight | 11.64 oz |
