Video/audio switch - desktop
| Main Specifications | |
|---|---|

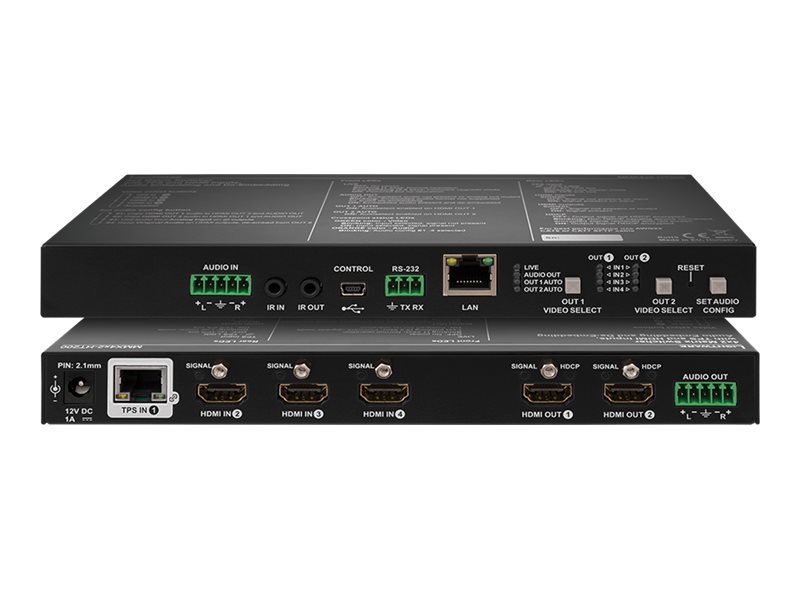

| Product Description | Lightware MMX4x2-HT200 - video/audio switch |
| Device Type | Video/audio switch |
| Subtype | HDMI |
| Features | 4K resolution support, EDID Management, HDCP compliant, audio embedding/de-embedding, 3D support, Dolby TrueHD support, DTS-HD Master Audio support, LPCM 7.1 support, metal housing |
| Compliant Standards | HDCP 1.4 |
| Dimensions (WxDxH) | 8.7 in x 4 in x 1 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio switch |
| Enclosure Type | Desktop |
| Subtype | HDMI |
| Max Resolution | 4096 x 2160 @ 30 Hz |
| Max Video Bandwidth | 297 MHz |
| Features | 4K resolution support, EDID Management, HDCP compliant, audio embedding/de-embedding, 3D support, Dolby TrueHD support, DTS-HD Master Audio support, LPCM 7.1 support, metal housing |
| Compliant Standards | HDCP 1.4 |
| Expansion / Connectivity | |
| Interfaces | 3 x HDMI input ¦ 2 x HDMI output ¦ 1 x HDBaseT input RJ-45 ¦ 1 x audio output 5 pin Phoenix ¦ 1 x audio input 5 pin Phoenix ¦ 1 x LAN RJ-45 ¦ 1 x IrDA input ¦ 1 x IrDA output ¦ 1 x serial (RS-232) 3 pin Phoenix ¦ 1 x USB mini-USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Power | |
| Power Device | External power adapter |
| Power Provided | 12 V - 2 A |
| Power Consumption Operational | 10 watt |
| Dimensions & Weight | |
| Width | 8.7 in |
| Depth | 4 in |
| Height | 1 in |
