Video/audio switch - 4 x 2 - desktop
| Main Specifications | |
|---|---|

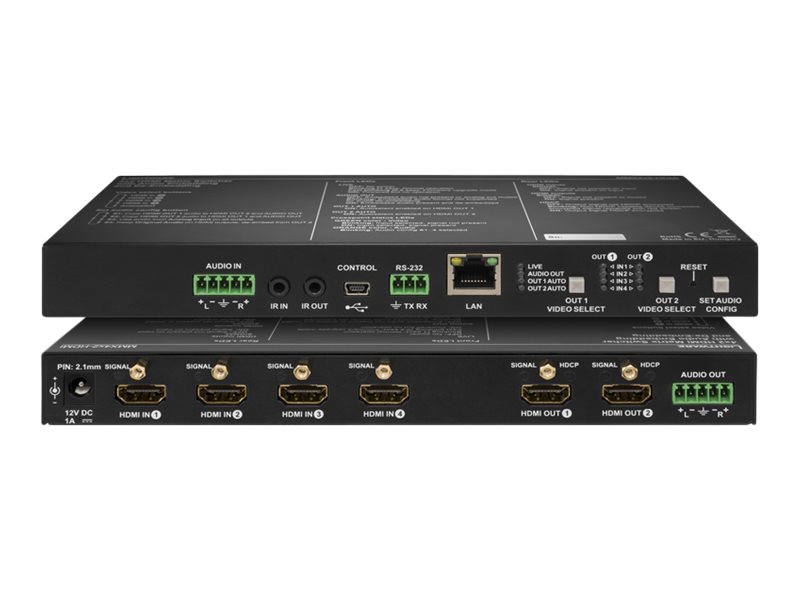

| Product Description | Lightware MMX4x2-HDMI - video/audio switch - 4 x 2 |
| Device Type | Video/audio switch - 4 x 2 |
| Enclosure Type | 1U |
| Subtype | HDMI |
| Features | Firmware upgradable, HDCP compliant, 3D support, 4K resolution support, Advanced EDID Management, Dolby TrueHD support, DTS-HD Master Audio support, audio breakaway switching, reclocking, audio embedding/de-embedding, event management, TCP support, zero latency |
| Compliant Standards | DVI 1.0, HDCP 1.4 |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 8.7 in x 4 in x 1 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio switch - 4 x 2 |
| Enclosure Type | Desktop 1U |
| Subtype | HDMI |
| Max Resolution | 4096 x 2160 @ 30 Hz |
| Max Video Bandwidth | 300 MHz |
| Features | Firmware upgradable, HDCP compliant, 3D support, 4K resolution support, Advanced EDID Management, Dolby TrueHD support, DTS-HD Master Audio support, audio breakaway switching, reclocking, audio embedding/de-embedding, event management, TCP support, zero latency |
| Compliant Standards | DVI 1.0, HDCP 1.4 |
| Expansion / Connectivity | |

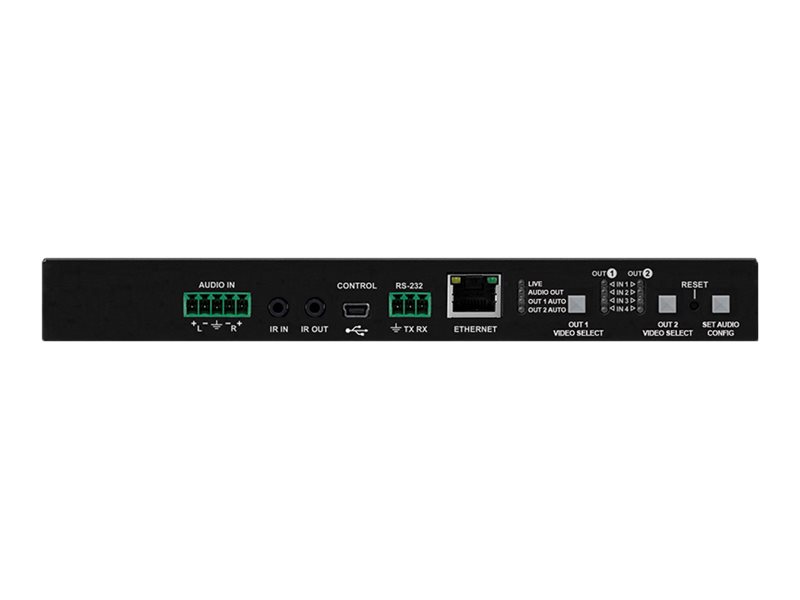

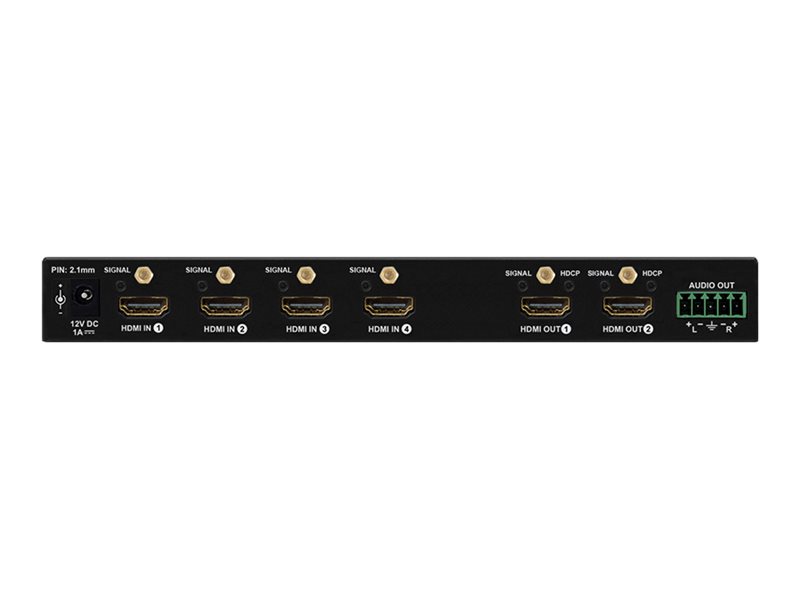

| Interfaces | 4 x HDMI input ¦ 2 x HDMI output ¦ 1 x audio output 5 pin Phoenix ¦ 1 x audio input 5 pin Phoenix ¦ 1 x LAN RJ-45 ¦ 1 x IrDA input mini-jack ¦ 1 x IrDA output mini-jack ¦ 1 x serial (RS-232) 3 pin Phoenix ¦ 1 x USB mini-USB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | IR receiver, IR transmitter |
| Rack Mounting Kit | Optional |
| Compliant Standards | CEC, HDCP |
| Power | |
| Power Device | External power adapter |
| Power Provided | 12 V - 2 A |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 7 Watt |
| Dimensions & Weight | |
| Width | 8.7 in |
| Depth | 4 in |
| Height | 1 in |
