Presentation controller
| Main Specifications | |
|---|---|

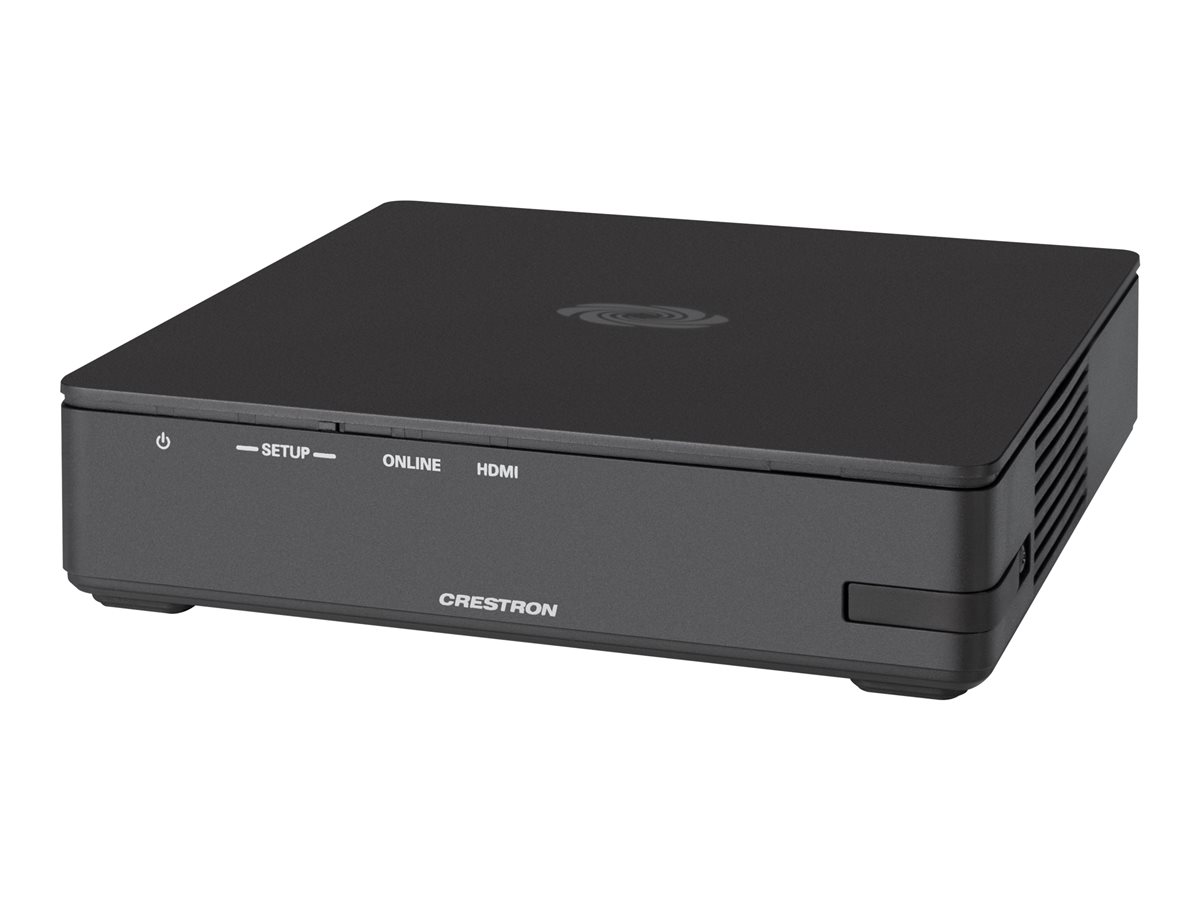

| Product Description | Crestron AirMedia Series 3 AM-3100-WF presentation controller |
| Type | Presentation controller |
| Dimensions (WxDxH) | 5 in - 5 in - 1.2 in |
| Weight | 11.64 oz |
| General | |
| Type | Presentation controller |
| Width | 5 in |
| Depth | 5 in |
| Height | 1.2 in |
| Weight | 11.64 oz |
| Power | |
| Power Consumption | 13.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Terminals | |

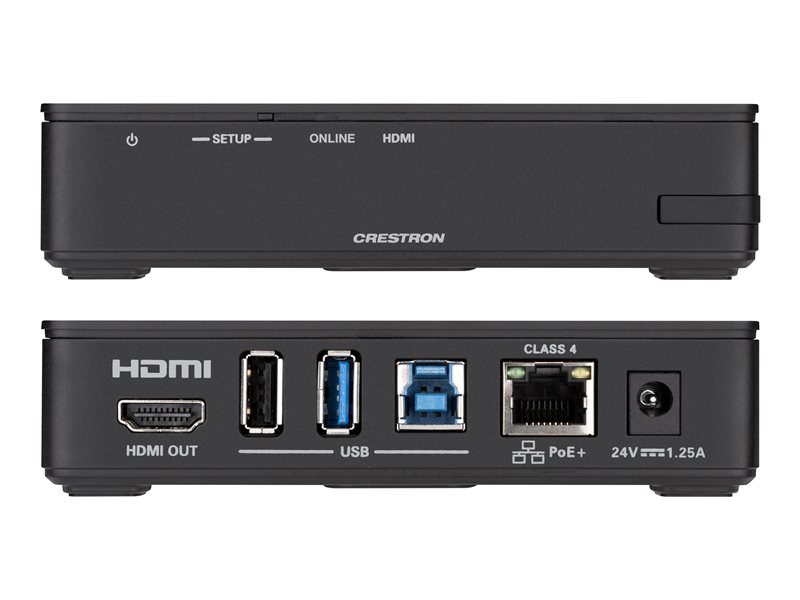

| Terminals | (1) x HDMI output - 19 pin HDMI Type A ¦ (1) x USB 2.0 - 4 pin USB type A ¦ (1) x USB 3.0 - 9 pin USB Type A ¦ (1) x USB 3.0 - 9 pin USB Type B ¦ (1) x network - RJ-45 |
| Studio & Production Equipment | |
| Features | EDID support, Power Over Ethernet support, HDCP 2.2 compliant, 4K60 signal support, IEEE 802.11 a/b/g/n/ac/ax support |
