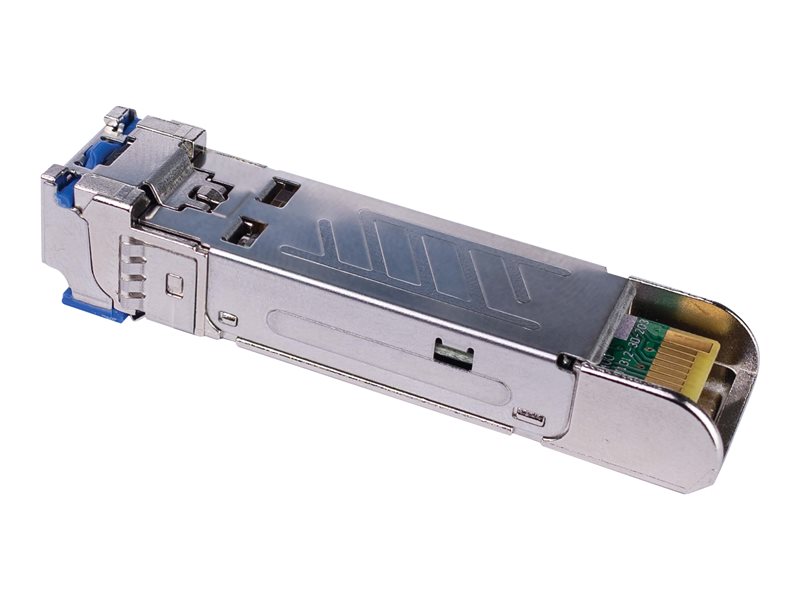

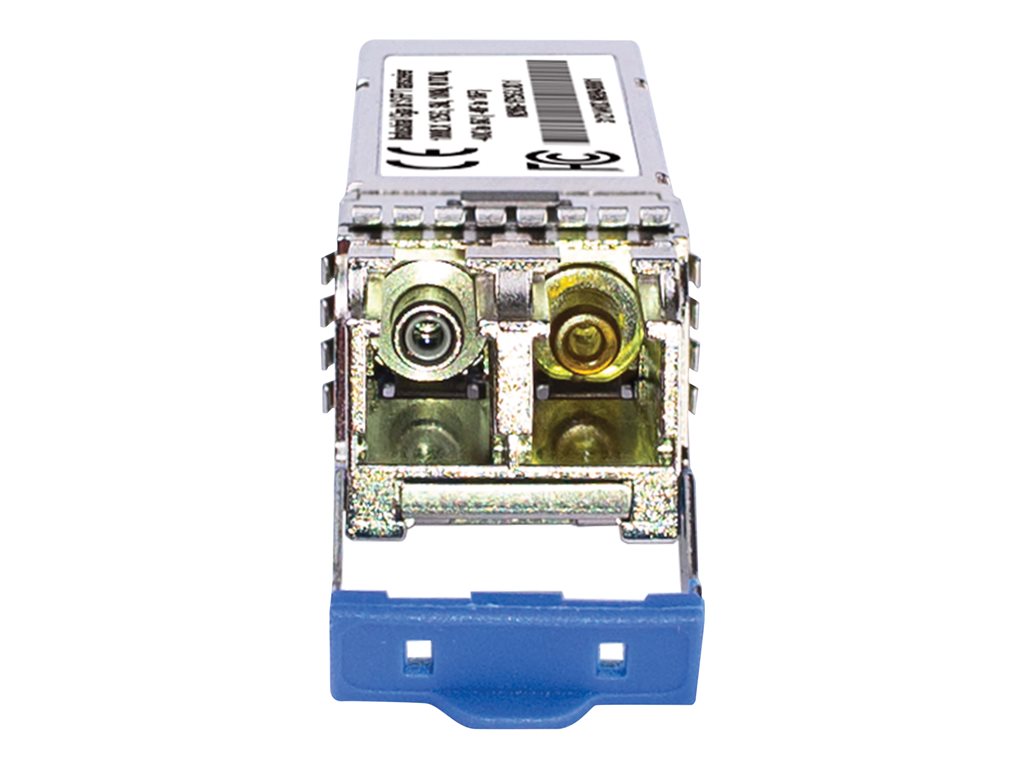

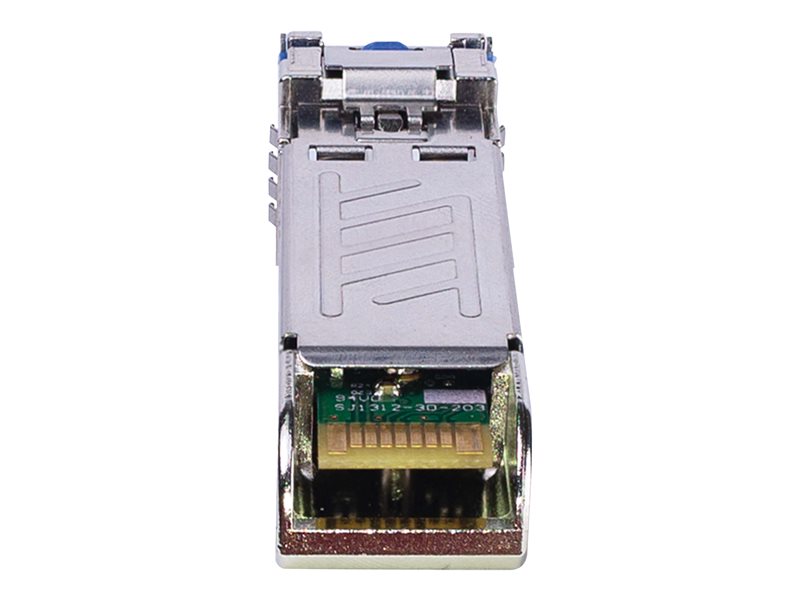

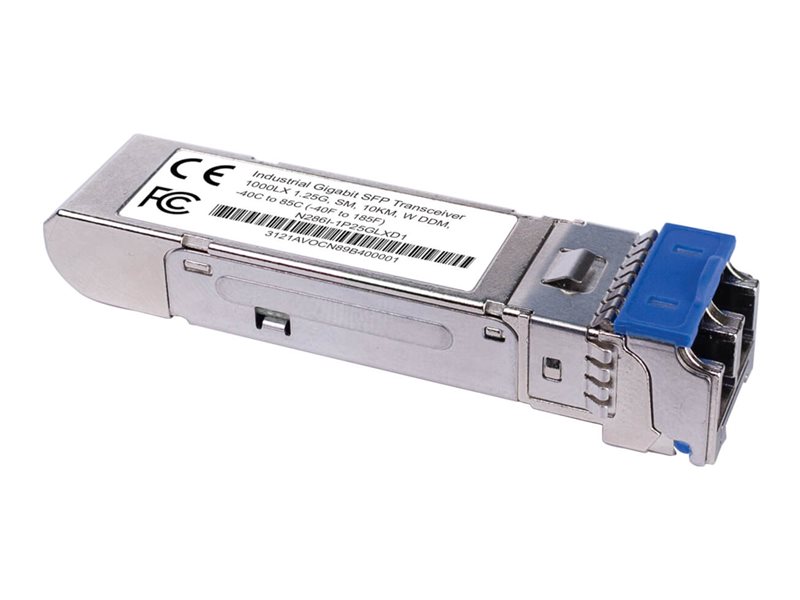

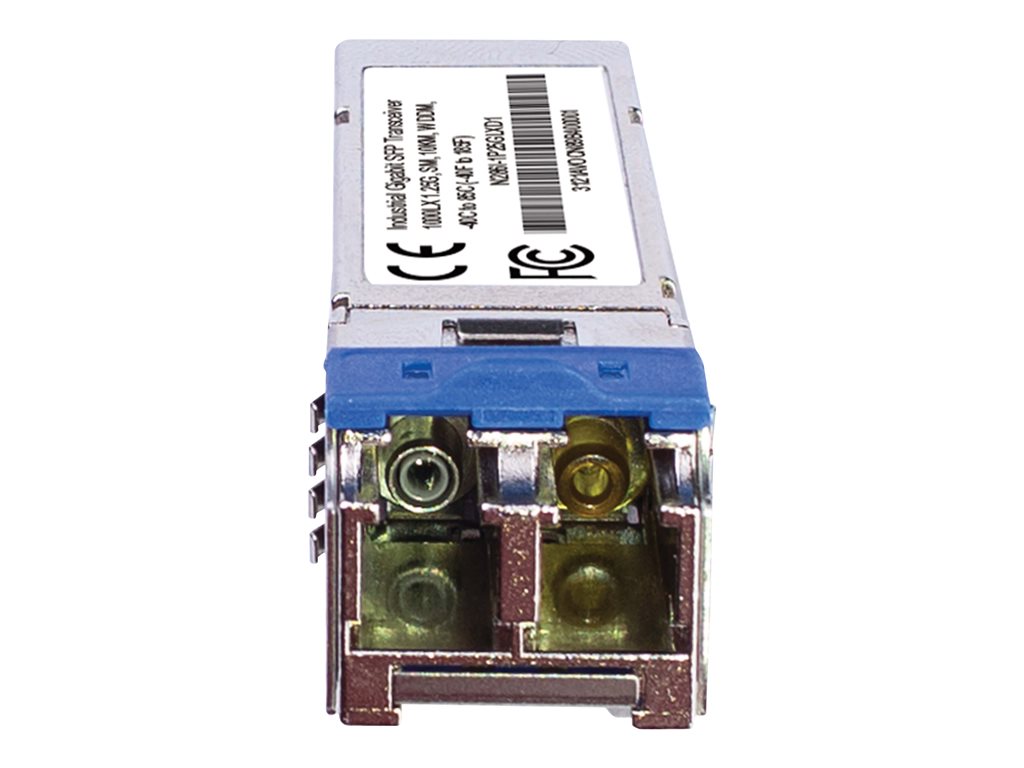

1000Base-LX, Singlemode, LC Duplex, DDM, -40° to 85°C, 10 km (6.2 mi.) - SFP (mini-GBIC) transceiver module - 1GbE - 1000Base-LX - LC single-mode - up to 6.2 miles - 1310 nm
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series Industrial Gigabit SFP Transceiver - 1000Base-LX, Singlemode, LC Duplex, DDM, -40° to 85°C, 10 km (6.2 mi.) - SFP (mini-GBIC) transceiver module - 10Mb LAN, 100Mb LAN, 1GbE |
| Device Type | SFP (mini-GBIC) transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 1000Base-LX |
| Data Transfer Rate | 1.25 Gbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Max Transfer Distance | 6.2 miles |
| Dimensions (WxDxH) | 0.6 in x 2.6 in x 0.4 in |
| Weight | 0.6 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-LX - LC single-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-LX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1.25 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 6.2 miles |
| Features | Digital Diagnostics Monitoring (DDM) |
| Compliant Standards | IEEE 802.3z |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 0.6 in |
| Depth | 2.6 in |
| Height | 0.4 in |
| Weight | 0.6 oz |
