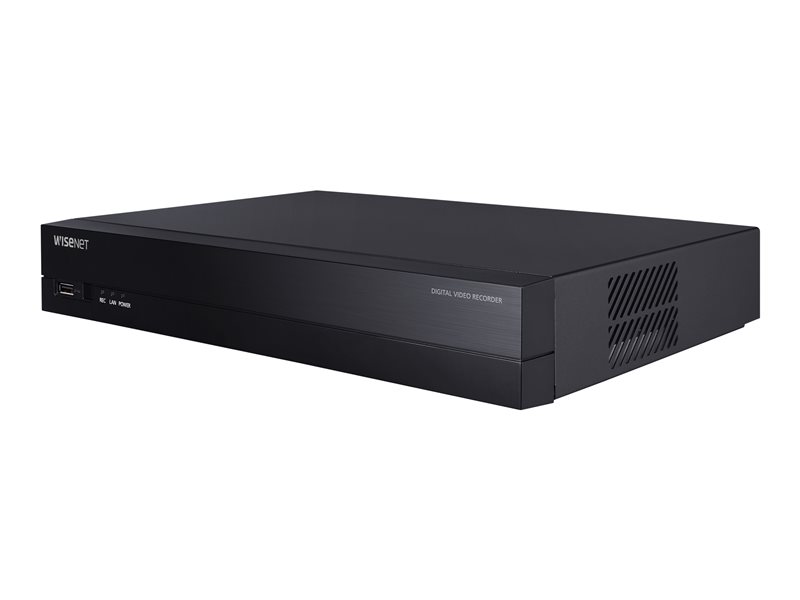

Standalone DVR - 4 channels 4 TB - networked
| Main Specifications | |
|---|---|
| Product Description | Hanwha Vision WiseNet HRX-434 - standalone DVR - 4 channels |
| Device Type | Standalone DVR - 4 channels - networked |
| IP Cameras Supported | 6 |
| Frame Rate | 8 fps, 12 fps, 15 fps, 20 fps, 25 fps, 30 fps, 240 fps |
| Compression Format | H.265, H.264, MJPEG, G.711, G.726, AVI |
| TV System | NTSC/PAL |
| Image Resolution | 3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720 |
| Hard Drive | 4 TB |
| Hard Drive(s) Supported | Quantity: 1 - total capacity: 6 TB |
| Voltage | 12 V |
| Dimensions (WxDxH) | 11.8 in x 8.2 in x 1.9 in |
| Weight | 3.31 lbs |
| General | |
| Device Type | Standalone DVR |
| Video Channels | 4 |
| IP Cameras Supported | 6 |
| TV System | NTSC/PAL |
| Image Resolution | 3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720 |
| Compression Format | H.265, H.264, MJPEG, G.711, G.726, AVI |
| Compliant Standards | EAC, cULus, NDAA, FCC, UL, KC |
| Color | Black |
| Networking | |
| DDNS Support | Yes |
| Network Interfaces | Ethernet 10Base-T/100Base-T |
| Supported Protocols | ONVIF, SUNAPI, RTP, RTSP, HTTP, CGI, TCP/IP, UDP/IP, UDP, TCP, NTP, DHCP, PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP |
| Features | Built-in buzzer, Source-Specific Multicast (SSM), unicast mode, Hanwha DDNS, multicast mode, IP address filtering, user access log, 802.1x authentication, Hanwha Techwin Root CA encryption |
| Power | |
| Voltage | 12 V |
| Power Consumption | 22 watt |
| Power Consumption Details | With HDD |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 85% RH |
| System Requirements | |
| Operating Systems | Apple iOS, Android |
| Hard Drive | |
| Quantity Supported | 1 |
| Capacity | 4 TB |
| Interface | Serial ATA |
| Supported Max Total Capacity | 6 TB |
| Connections | |
| Video Input Ports | BNC x 4 |
| Video Input Signal Level | 1.0Vp-p 75 Ohm |
| Video Output Ports | HDMI x 1, VGA x 1, BNC x 1 |
| Audio Output Ports | RCA x 1 |
| Alarm Ports | Alarm input x 4, alarm output x 1 |
| Camera Control Interface (PTZ) | RS-485 |
| Network Port | 10/100Base-T |
| Other Ports | USB 2.0 x 2, relay output x 1 |
| Dimensions & Weight | |
| Width | 11.8 in |
| Depth | 8.2 in |
| Height | 1.9 in |
| Weight | 3.31 lbs |
| Security DVR | |
| Frame Rate (Record) | 8 fps, 12 fps, 15 fps, 20 fps, 25 fps, 30 fps, 240 fps |
| Video Recording Resolution | 8 Megapixels, CIF |
| Record Events | Manual, scheduled, continuous, event, pre-event, post-event, dual track, alarm, video loss, motion detection, tamper detection, sensor, analytics, enter/exit detection, passing detection, appear/disappear detection, face detection, audio detection, defocus detection |
| Networked | Yes |
| Features | Analog High Definition (AHD), High Definition Transport Video Interface (HDTVI), High Definition Composite Video Interface (HDCVI), recording data rate up to 30 Mbps, e-mail alarm notifications, PTZ position presets, Fisheye Dewarp function, Webviewer, SmartViewer, Auto Recovery Backup (ARB), 2-way audio communication, Amcrest Pentabrid technology |
| Video Server | |
| Features | Supports CVBS/AHD/CVI/TVI encoding |
