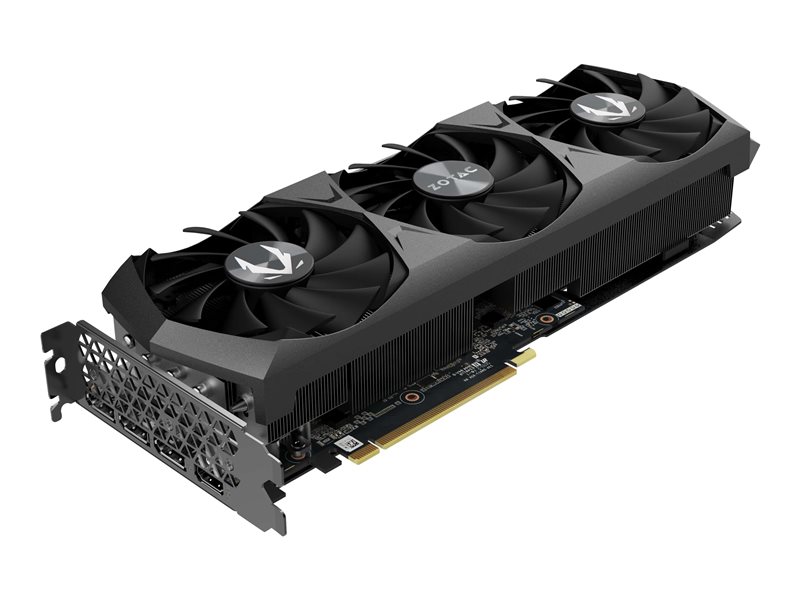

Graphics card - GF RTX 3070 - 8 GB GDDR6X - PCIe 4.0 x16 - 3 x DisplayPort, HDMI
| Main Specifications | |
|---|---|
| Product Description | ZOTAC GAMING GeForce RTX 3070 Ti Trinity OC - graphics card - GF RTX 3070 - 8 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 x16 |
| Graphics Engine | NVIDIA GeForce RTX 3070 |
| Memory | 8 GB GDDR6X |
| Memory Speed | 19 Gbps |
| Boost Clock | 1800 MHz |
| CUDA Cores | 6144 |
| Memory Interface | 256-bit |
| Max Resolution | 7680 x 4320 |
| Max Resolution Details | DisplayPort: 7680 x 4320 at 60 Hz / HDMI: 7680 x 4320 at 60 Hz |
| Max Monitors Supported | 4 |

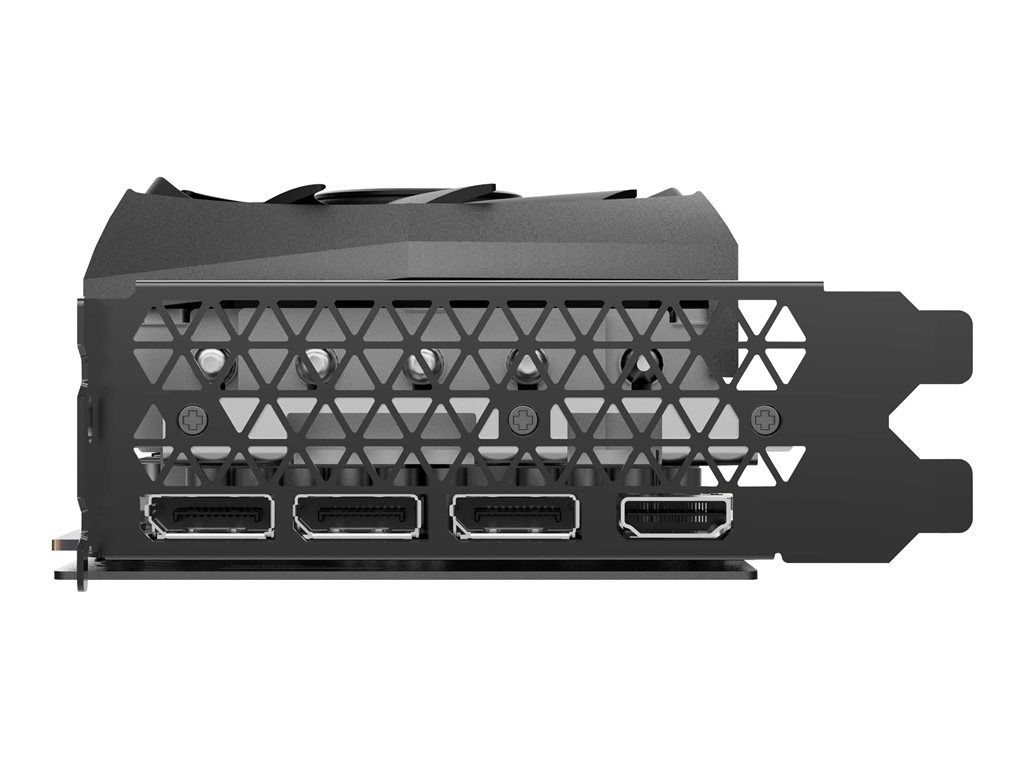

| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6 |
| Dimensions (WxDxH) | 2.3 in x 12.5 in x 4.6 in |
| Manufacturer Warranty | 3-year warranty with product registration |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 4.0 x16 |
| Graphics Engine | NVIDIA GeForce RTX 3070 |
| Boost Clock | 1800 MHz |
| CUDA Cores | 6144 |
| VR Ready | Yes |
| Max Resolution | 7680 x 4320 at 60 Hz |
| Max Resolution Details | DisplayPort: 7680 x 4320 at 60 Hz / HDMI: 7680 x 4320 at 60 Hz |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6 |
| Features | IceStorm 2.0, 2.5-slot Fan Cooler, 2nd gen Ray Tracing Cores, 3rd gen Tensor Cores, SPECTRA 2.0 Lighting System, Freeze Fan Stop, NVIDIA Ampere GPU technology, Nvidia DLSS, HDCP |
| Memory | |
| Size | 8 GB |
| Technology | GDDR6X SDRAM |
| Memory Speed | 19 Gbps |
| Bus Width | 256-bit |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Power Consumption Operational | 310 watt |

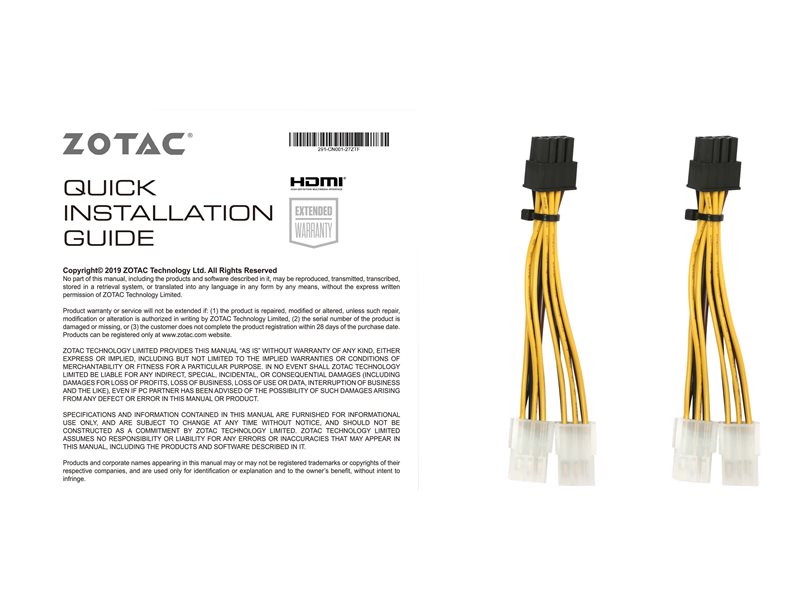

| Included Accessories | 2 x Dual 6-pin PCIe to 8-pin power adapter |
| Software Included | ZOTAC FireStorm |
| Compliant Standards | DisplayPort 1.4a, HDCP 2.3 |
| Width | 2.3 in |
| Depth | 12.5 in |
| Height | 4.6 in |
| System Requirements | |
| OS Required | Windows 10 64-bit Edition |
| Required Power Supply | 750 W |
| Additional Requirements | 2 x 8 pin PCI Express power connector |
