4x2 matrix switcher / audio disembedder
| Main Specifications | |
|---|---|

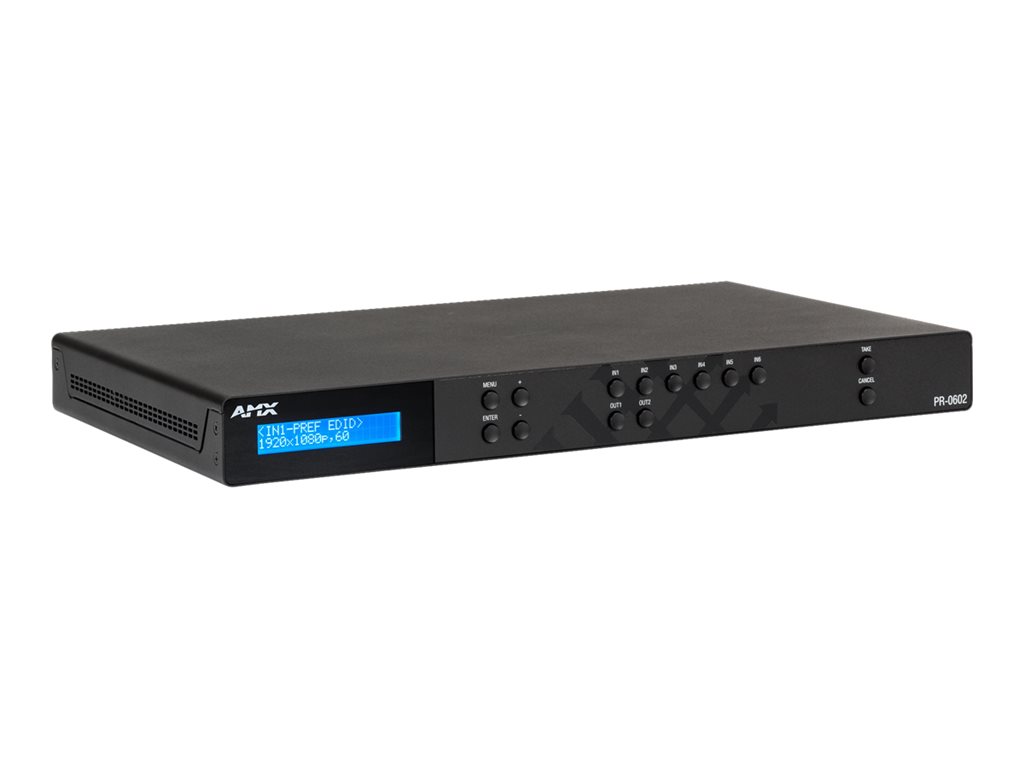

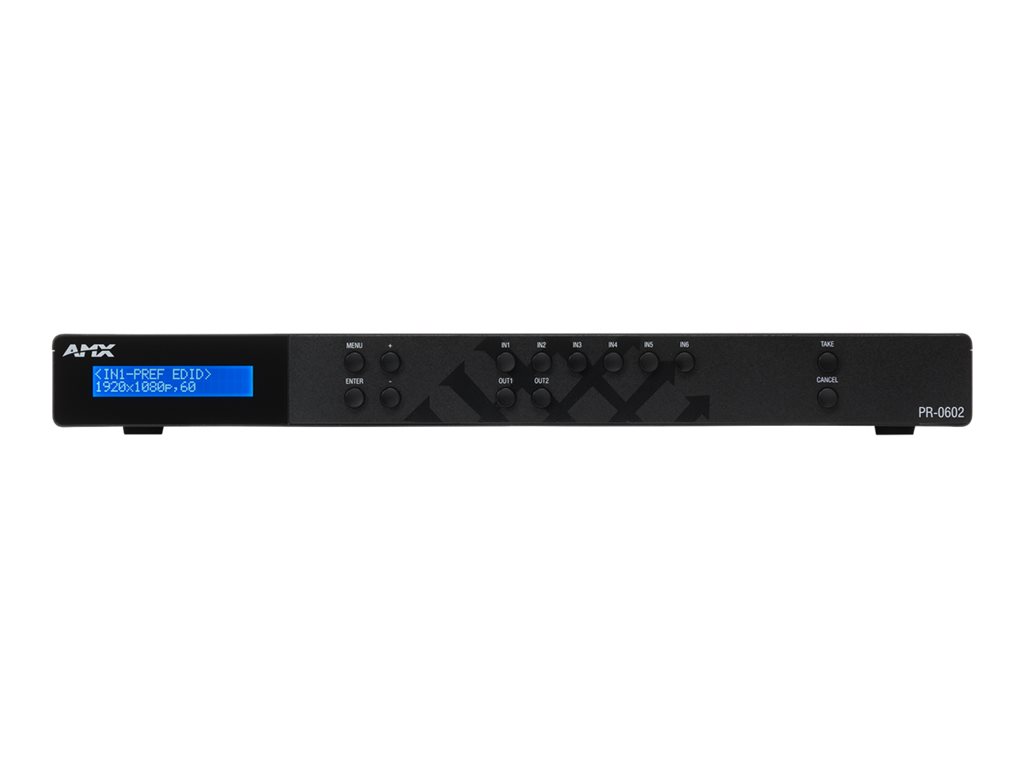

| Product Description | AMX Precis PR-0602 4x2 matrix switcher / audio disembedder |
| Type | 4x2 matrix switcher / audio disembedder |
| Dimensions (WxDxH) | 17.2 in - 10.6 in - 1.7 in |
| Weight | 6.28 lbs |
| General | |
| Type | 4x2 matrix switcher / audio disembedder |
| Width | 17.2 in |
| Depth | 10.6 in |
| Height | 1.7 in |
| Weight | 6.28 lbs |
| Power | |
| Low Voltage Power | DC 12 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Terminals | |

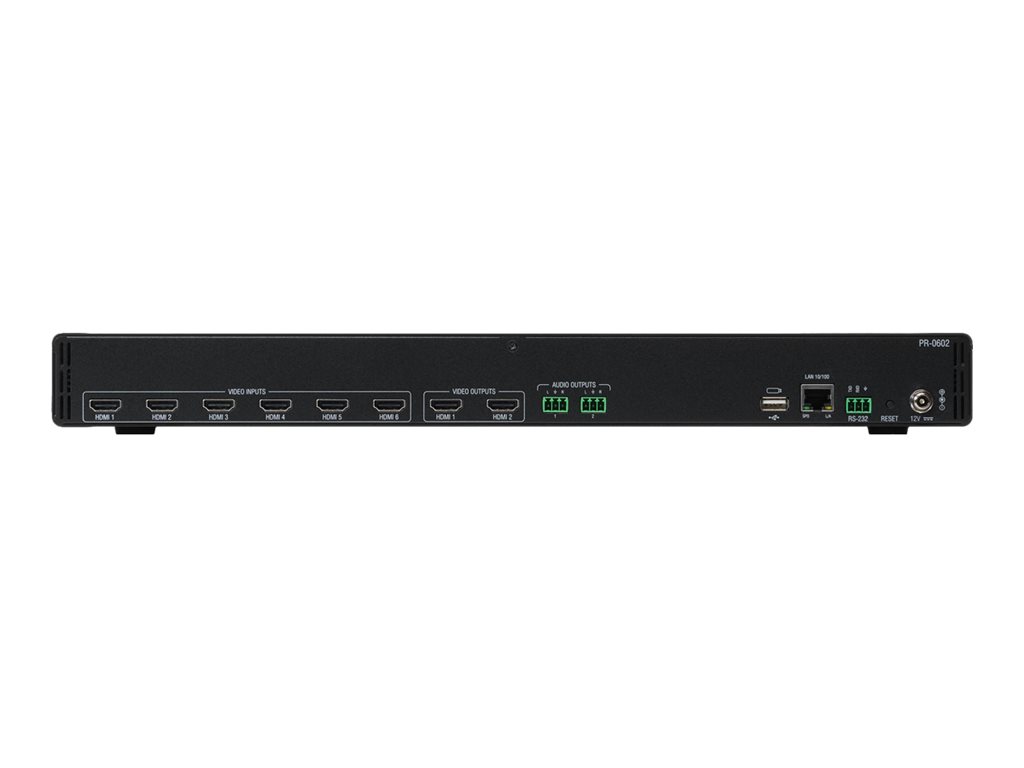

| Terminals | (6) x HDMI input - 19 pin HDMI Type A ¦ (2) x HDMI output - 19 pin HDMI Type A ¦ (1) x network - RJ-45 ¦ (2) x unbalanced audio output - 3-pin terminal block ¦ (1) x serial - 3-pin terminal block - RS-232 ¦ (1) x USB - 4 pin USB type A |
| Studio & Production Equipment | |
| Features | 4K60 4:4:4 signal support, HDR10 support, HDCP 2.2 compliant, Dolby Vision support, auto-switching capability, built-in LCD |
