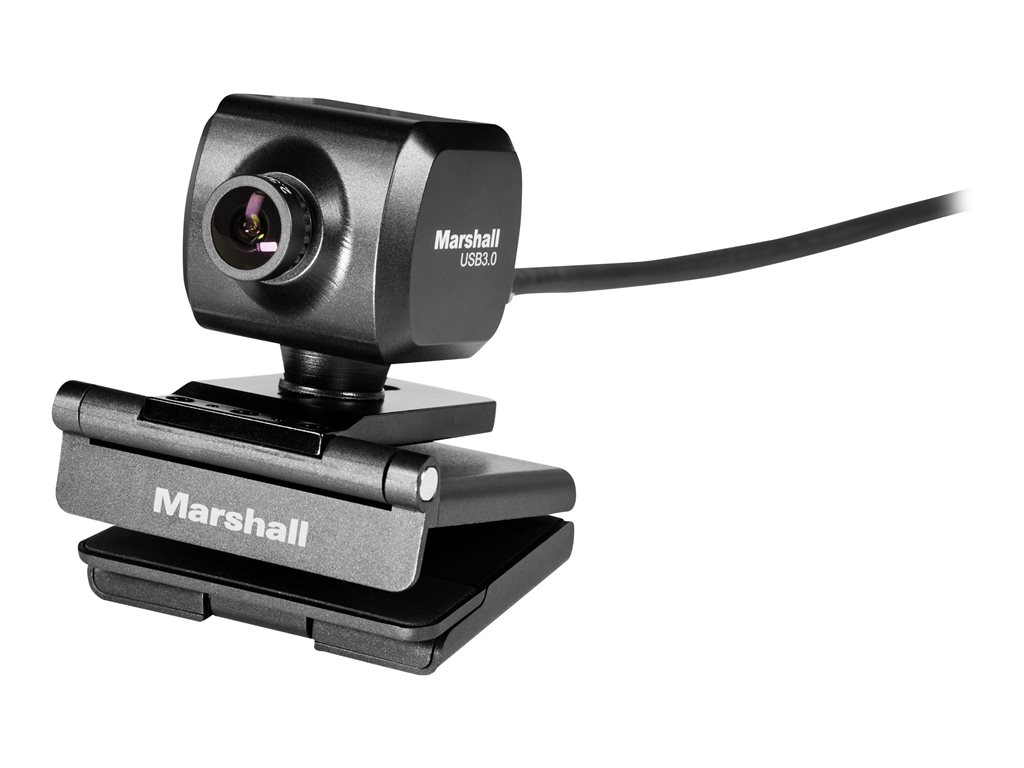

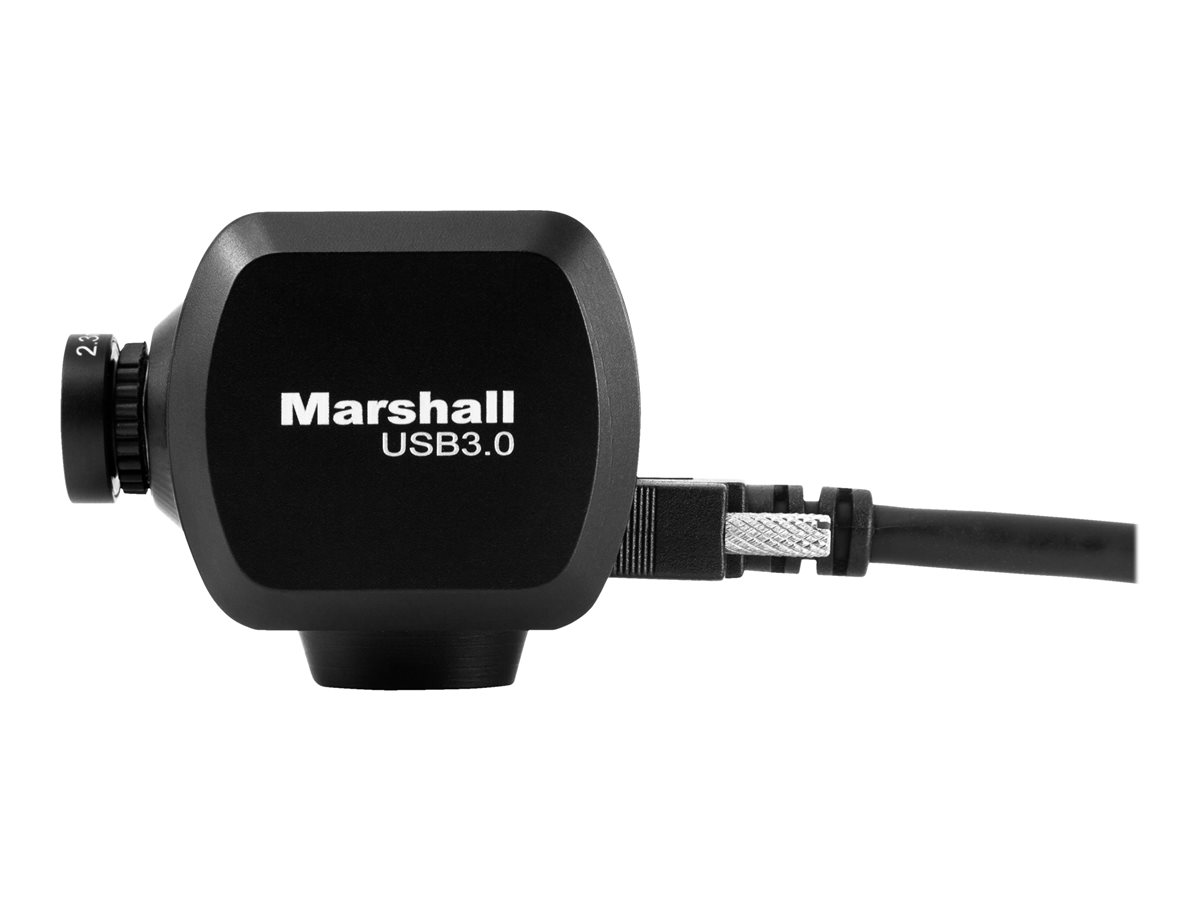

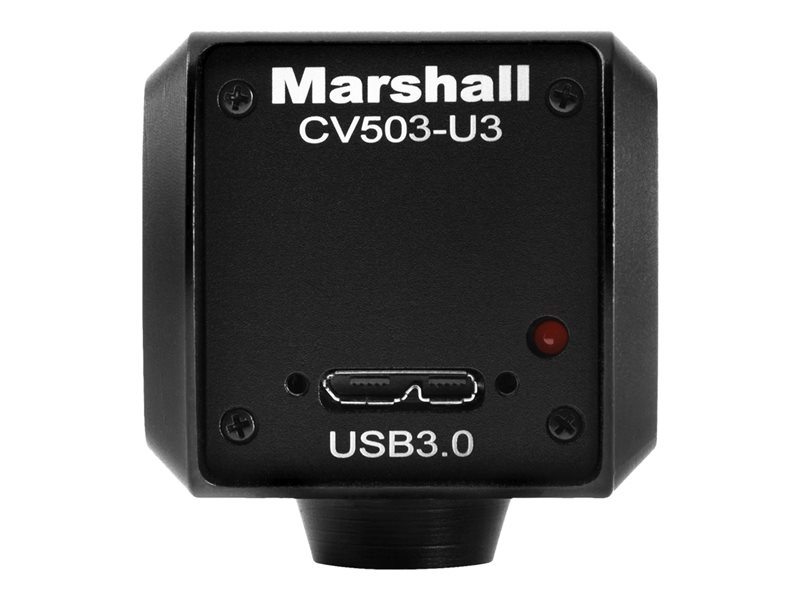

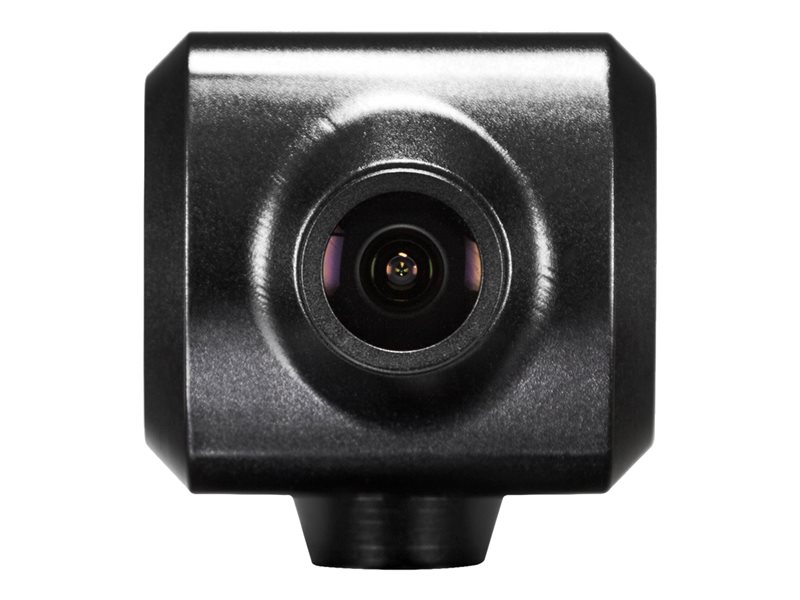

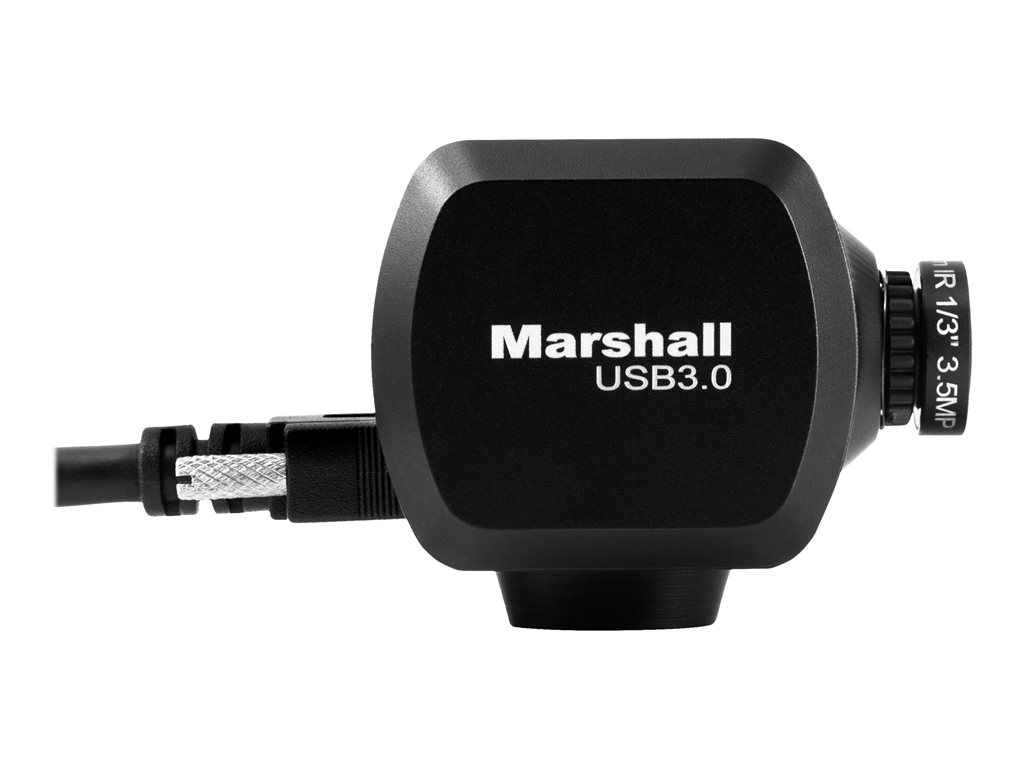

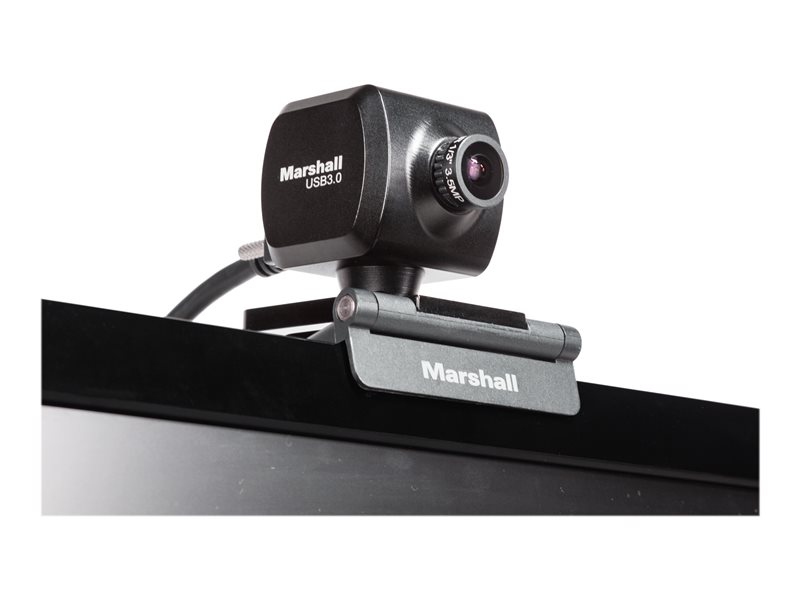

Webcam - color - 2.5 MP - 1920 x 1080 - M12 mount - fixed focal - USB 3.0
| Main Specifications | |
|---|---|
| Product Description | Marshall CV503-U3 - webcam |
| Device Type | Webcam |
| Dimensions (WxDxH) | 1.7 in x 1.9 in x 1.8 in |
| Weight | 3.84 oz |
| Connectivity Technology | Wired |
| Camera | Color |
| Max Resolution | 1920 x 1080 |
| Video Modes | 720p, 1080i, 1080p |
| Optical Sensor Type | CMOS - 1/2.8" - 2.5 MP |
| Minimum Illumination | 0.2 lux - color |
| Focal Length Control | Fixed focal |
| Focal Length | 2.8 mm |
| Lens Mounting | M12 mount |
| Interfaces | USB 3.0 |
| Cables Included | 1 - micro-USB 3.0 cable - 6.6 ft |
| Features | Sharpness control, white balance, progressive scanning, saturation control, brightness control, contrast control, USB powered, hue control, exposure control, gamma correction |
| Manufacturer Warranty | 1-year warranty |
| Environmental Parameters (operating) | 14 °F - 122 °F |
| General | |
| Device Type | Webcam |
| Connectivity Technology | Wired |
| Width | 1.7 in |
| Depth | 1.9 in |
| Height | 1.8 in |
| Weight | 3.84 oz |
| Expansion / Connectivity | |
| Ports | USB 3.0 - Micro-USB Type B |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Clip mount |
| Cables Included | 1 x micro-USB 3.0 cable - 6.6 ft |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 or later, Apple MacOS X 10.8 or later |
| System Requirements Details | Core i3 - 1.5 GHz - RAM 4 GB |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Camera | |
| Type | Color |
| Max Digital Video Resolution | 1920 x 1080 |
| Video Modes | 720p, 1080i, 1080p |
| Minimum Illumination | 0.2 lux - color |
| Features | Sharpness control, white balance, progressive scanning, saturation control, brightness control, contrast control, USB powered, hue control, exposure control, gamma correction |
| Lens Construction | |
| Type | M12 mount - fixed focal |
| Focal Length | 2.8 mm |
| Horizontal Field of View (degree) | 90 |
| Image Sensor | |
| Type | 2.5 MP CMOS 1/2.8" |
| Effective Pixels | 1920 x 1080 |
| Interfaces | |
| Computer Interface | USB 3.0 |
