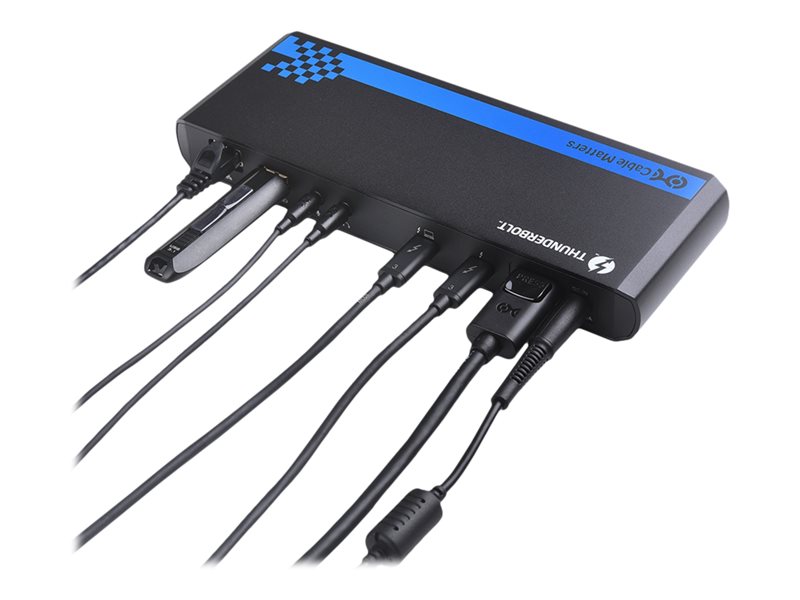

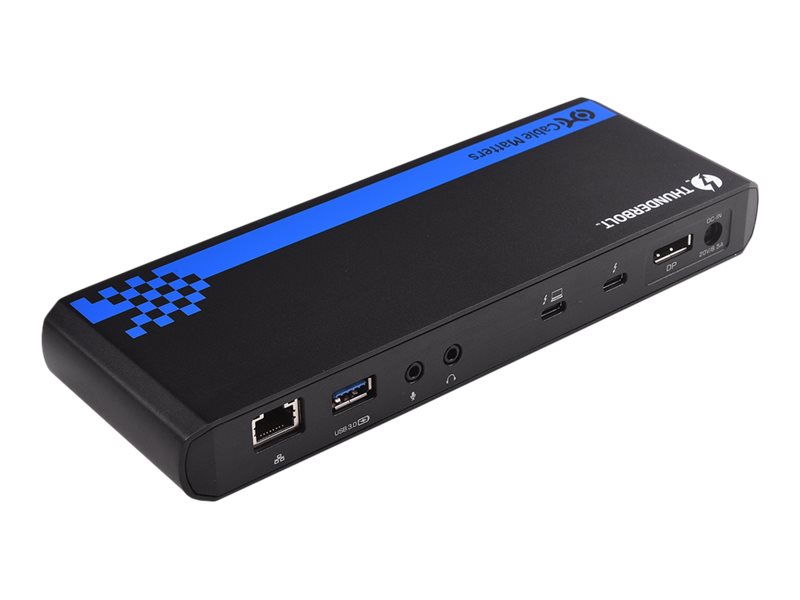

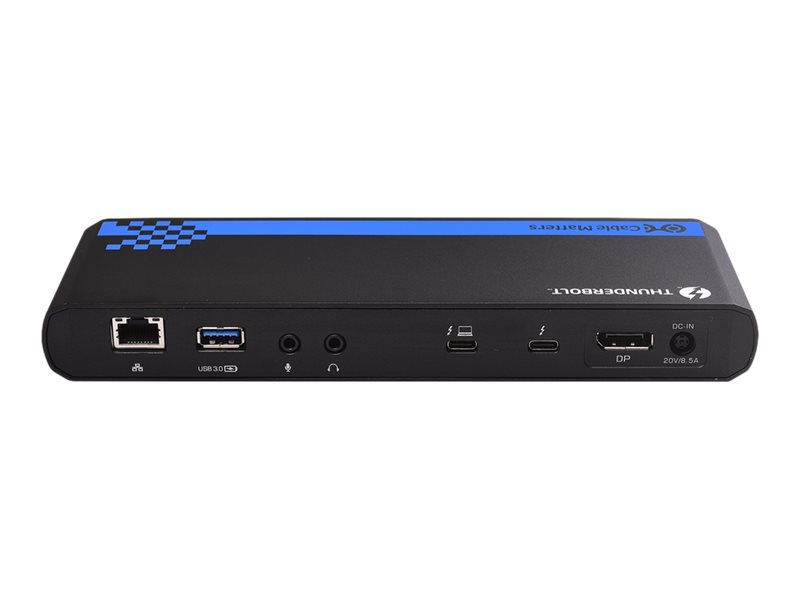

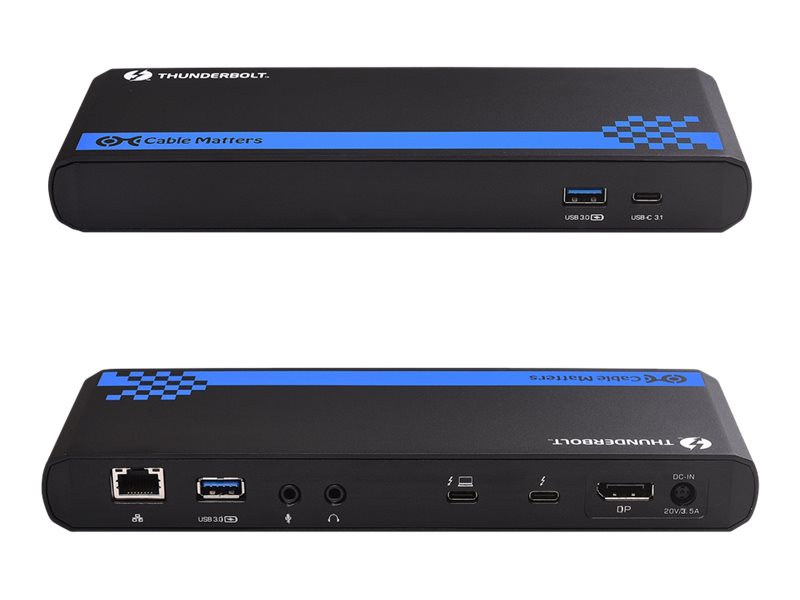

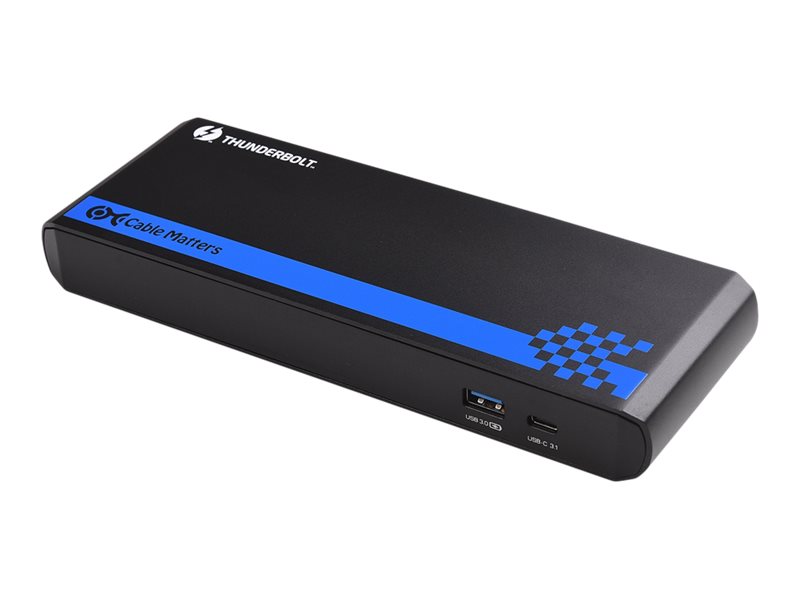

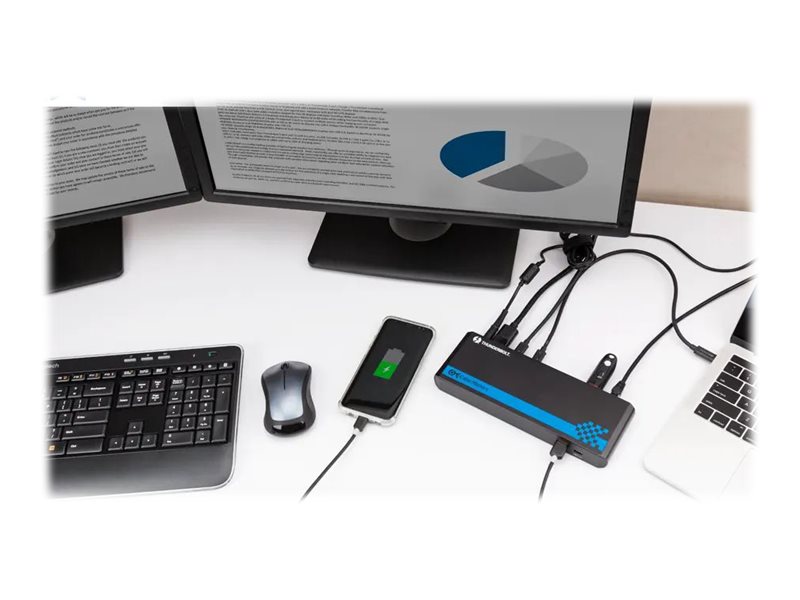

Docking station - Thunderbolt 3 - DP, Thunderbolt - 1GbE
| Main Specifications | |
|---|---|
| Product Description | Cable Matters - docking station - Thunderbolt 3 - DP, Thunderbolt - 1GbE |
| Product Type | Docking station |
| Docking Interface | Thunderbolt 3 |
| Video Interfaces | DP, Thunderbolt |
| Dimensions (WxDxH) | 8.7 in x 3.1 in x 1.1 in |
| Weight | 16.01 oz |
| Color | Black |
| Networking | Gigabit Ethernet |
| Power | Power adapter AC 100-240 V |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Product Type | Docking station |
| Width | 8.7 in |
| Depth | 3.1 in |
| Height | 1.1 in |
| Weight | 16.01 oz |
| Enclosure Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x USB-C 3.1 - 24 pin USB-C ¦ 2 x SuperSpeed USB 3.0 with Battery Charging 1.2 - 9 pin USB Type A ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x Thunderbolt 3 with Power Delivery (85W) - 24 pin USB-C ¦ 1 x Thunderbolt 3 - 24 pin USB-C ¦ 1 x microphone - mini-phone 3.5 mm ¦ 1 x headphones - mini-phone 3.5 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | 1 x Thunderbolt 3 / USB-C cable - external |
| Features | MAC address pass-through |
| Compliant Standards | FCC |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Power Device | Power adapter |
| Voltage Required | AC 100-240 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Video | |
| Max Resolution Details | 5120 x 2880 - 60 Hz (Thunderbolt only) ¦ 4096 x 2160 - 60 Hz (DisplayPort and ThunderBolt downstream simultaneously) |
| System Requirements | |
| OS Required | Microsoft Windows 7 or later, Apple macOS 10.12 or later |
