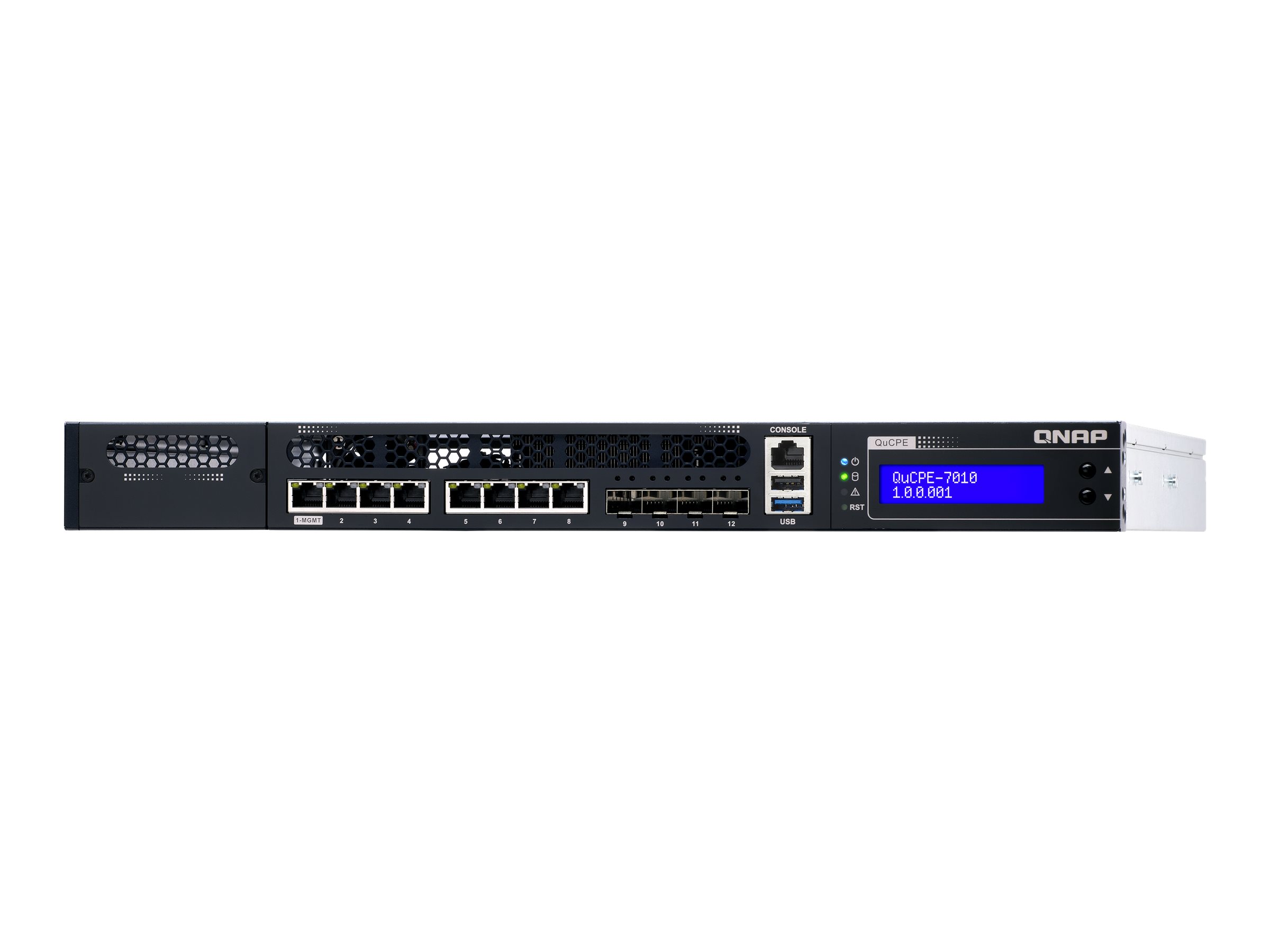

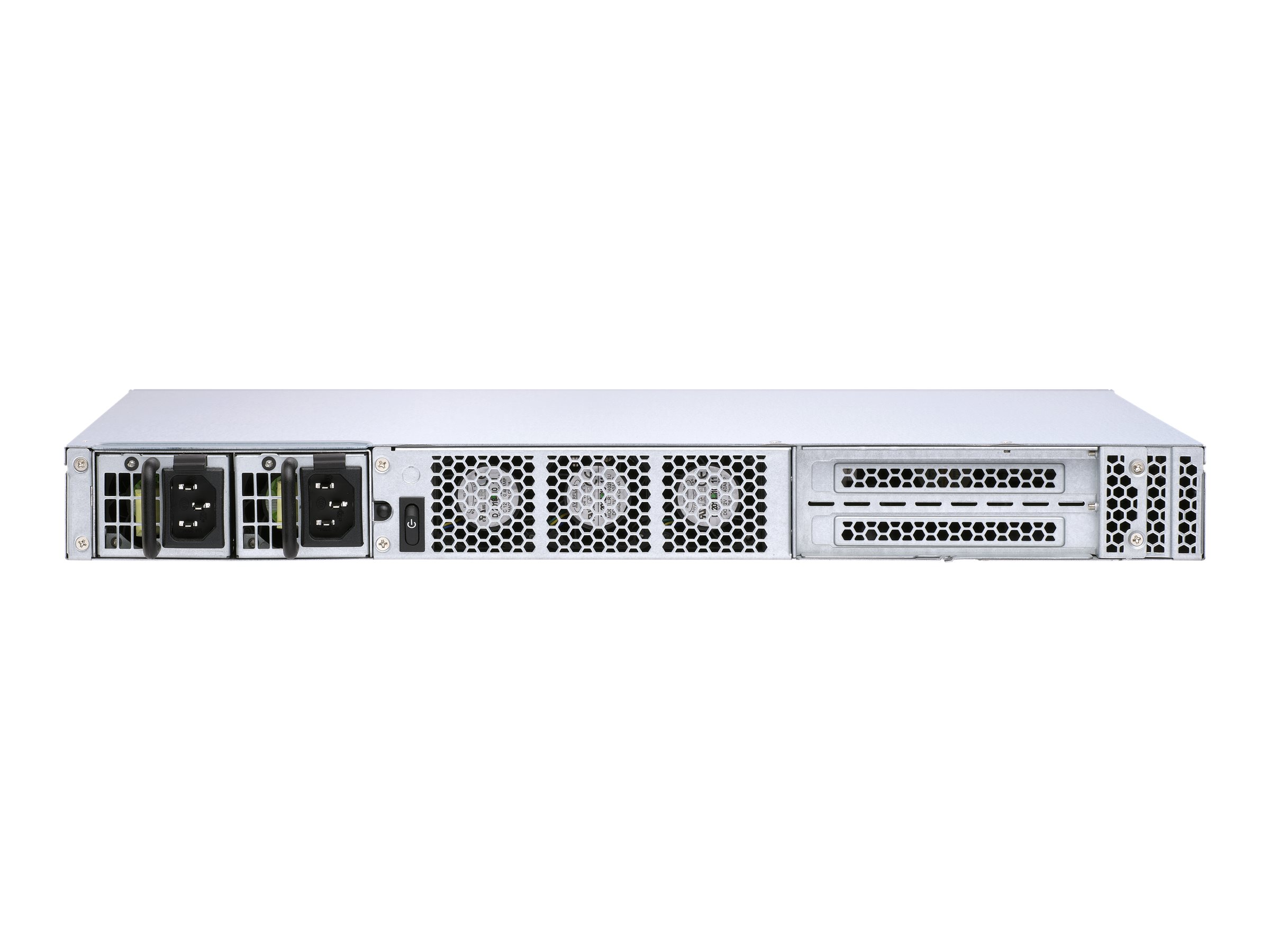

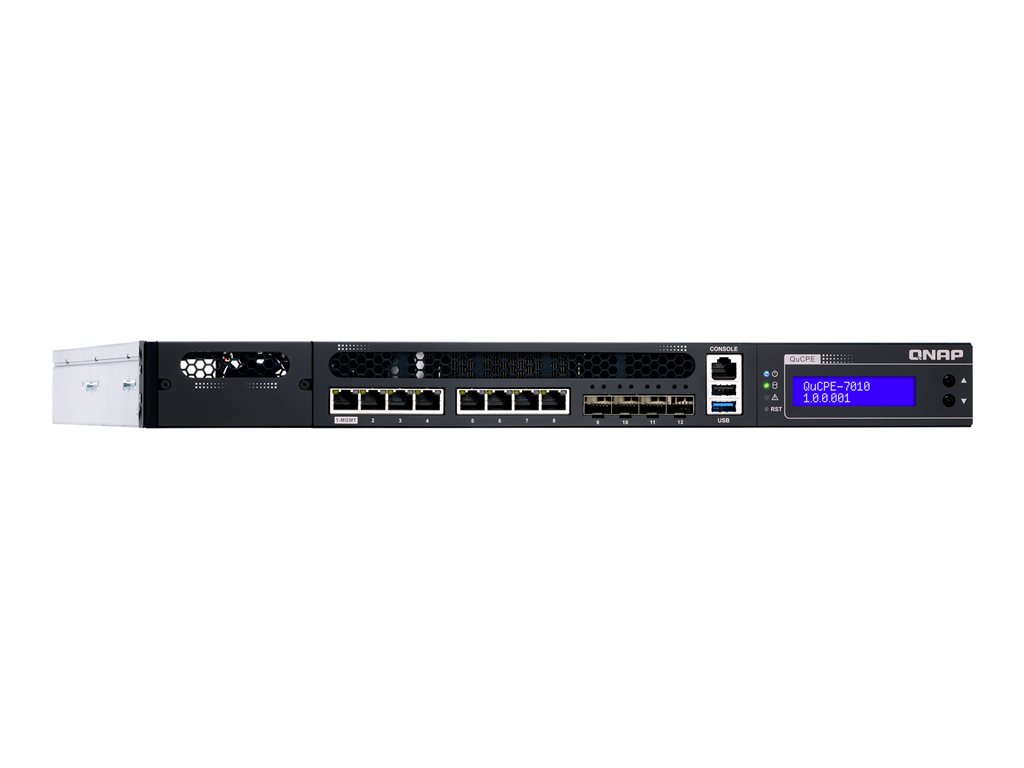

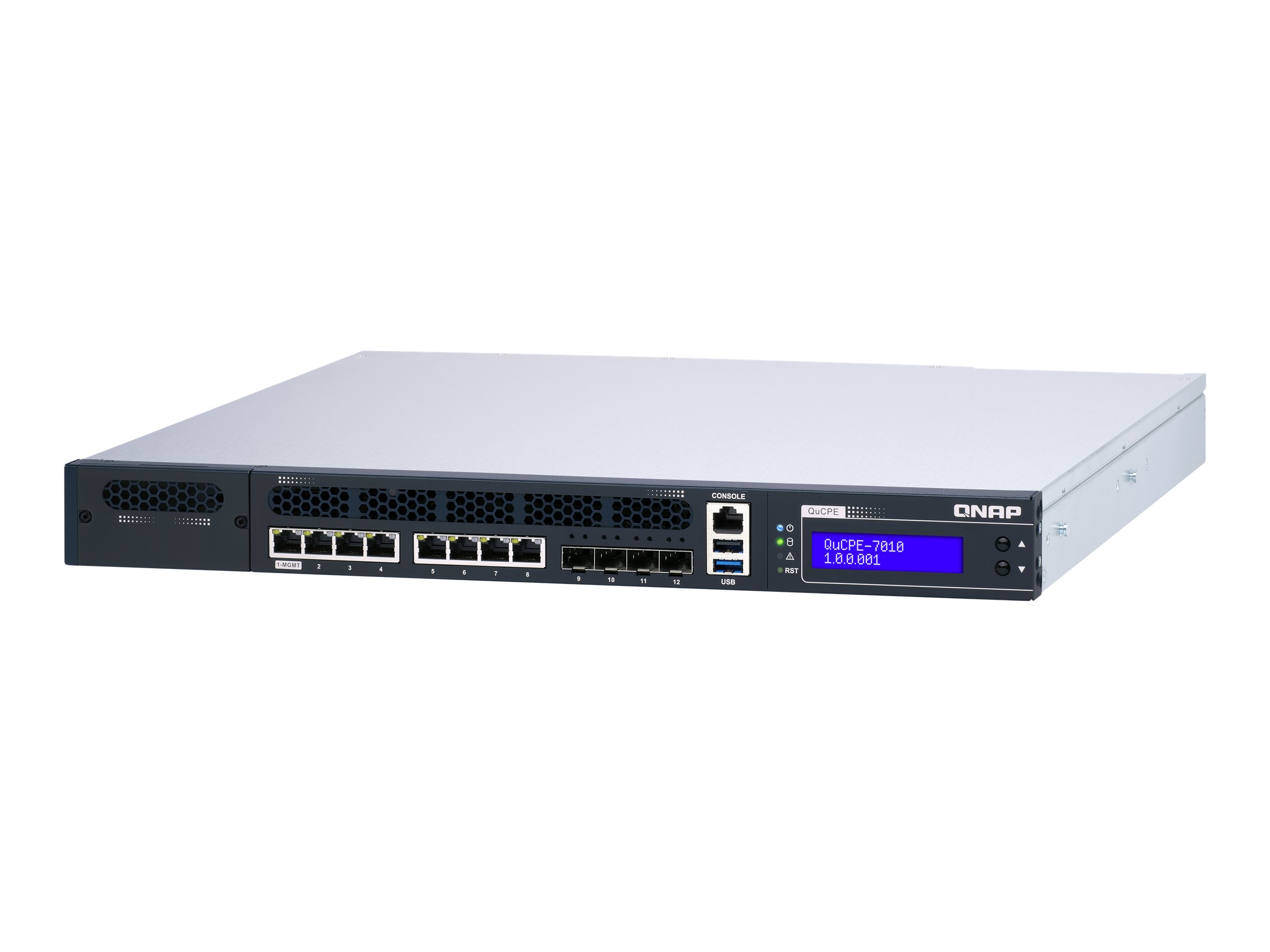

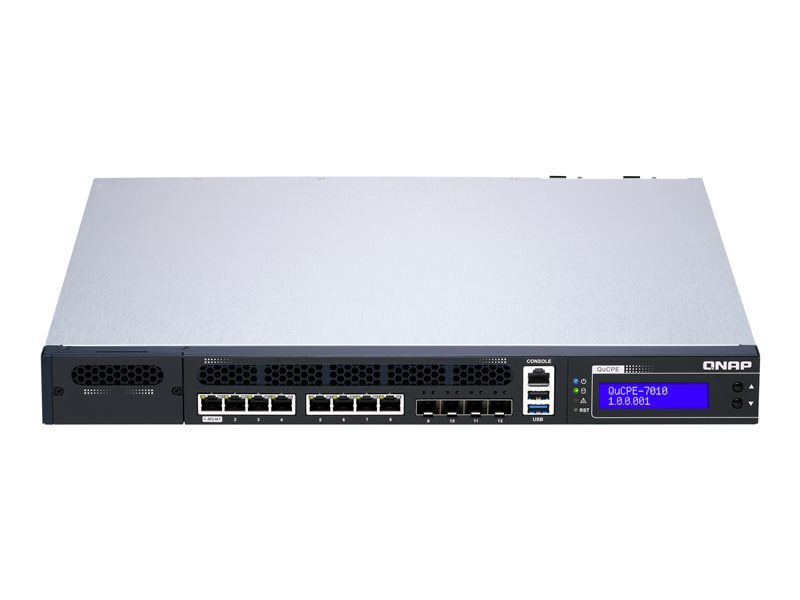

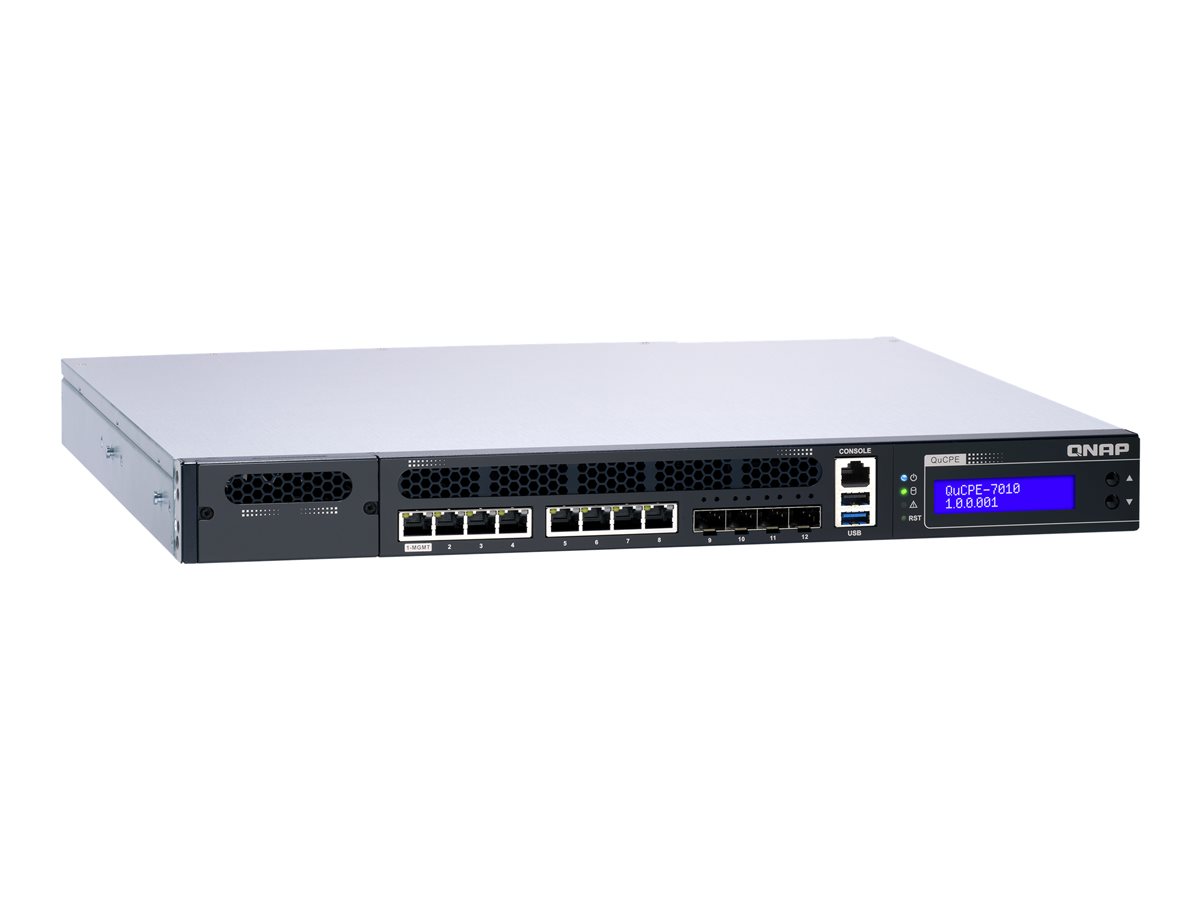

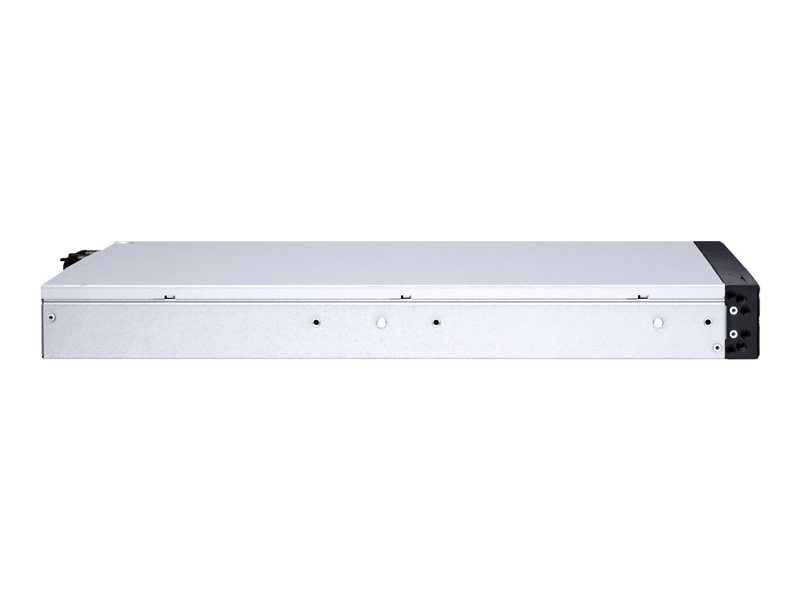

Virtualization appliance - 10GbE - 1U - cloud-managed - rack-mountable
| Main Specifications | |
|---|---|

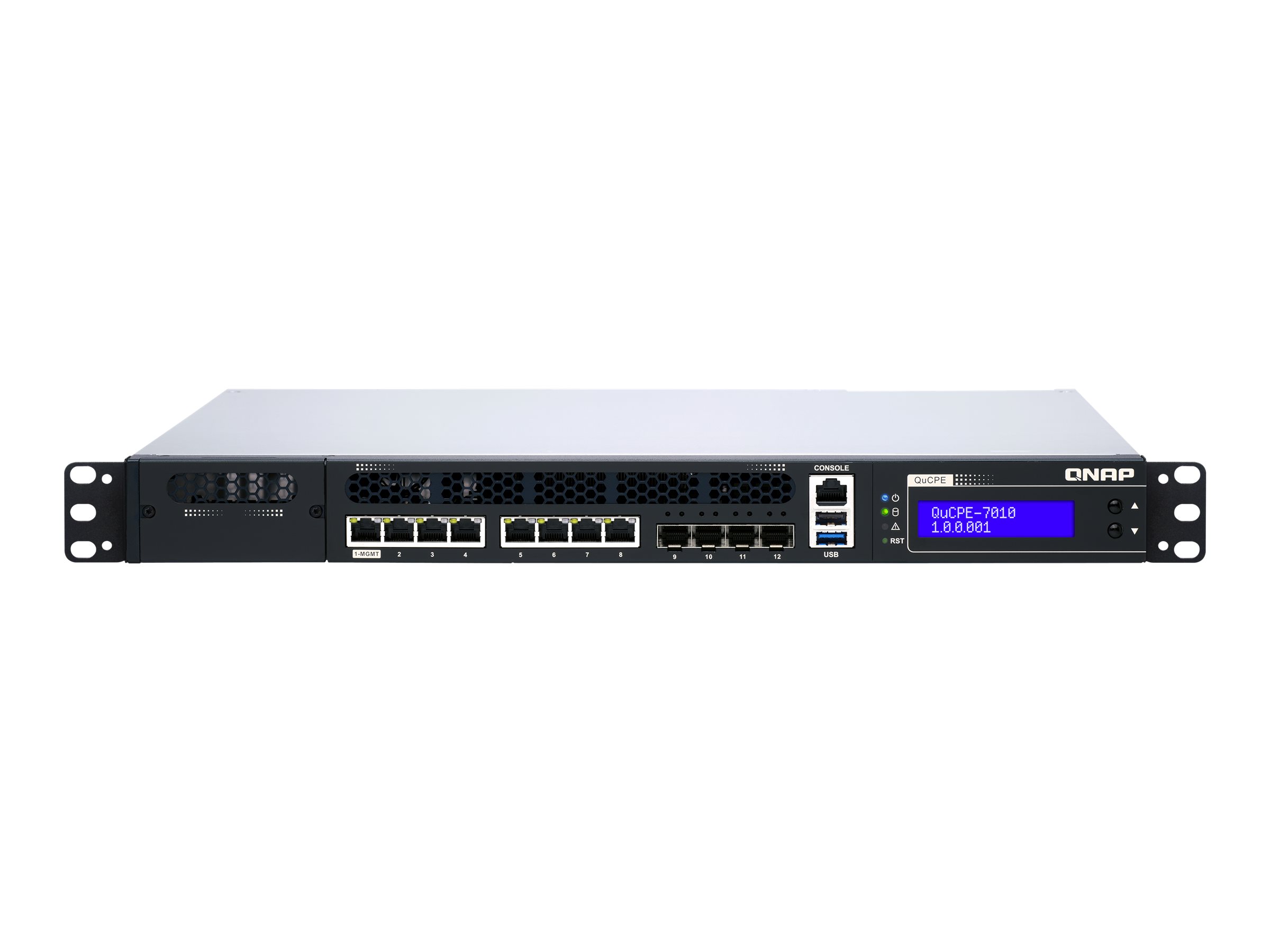

| Product Description | QNAP QuCPE-7010-D2123IT-8G - virtualization appliance - cloud-managed |
| Device Type | Virtualization appliance |
| Form Factor | Rack-mountable - 1U |
| Processor | 1 x Intel Xeon D-2123IT - 2.2 GHz |
| RAM | 8 GB (installed) / 256 GB (max) |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Included Accessories | Rack mount kit, flat head screws (for 2.5" HDD), power cord |
| Power | AC 90-264 V |
| Power Redundancy | Yes |
| General | |
| Device Type | Virtualization appliance |
| Height (Rack Units) | 1U |
| Expansion / Connectivity | |
| Expansion Bays | 2 - 2.5" |
| Expansion Slots | 1 (total) / 1 (free) x PCI Express 3.0 x8 ¦ 1 M.2 2280 |
| Interfaces | 8 x 1000Base-T - RJ-45 ¦ 4 x 10Gb Ethernet - SFP+ ¦ 1 x USB 2.0 - Type A ¦ 1 x USB 3.2 Gen 1 - Type A |
| Miscellaneous | |
| Included Accessories | Rack mount kit, flat head screws (for 2.5" HDD), power cord |
| Cables Included | 1 x network cable |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Network / Transport Protocol | NTP, PPPoE, FTP, DHCP, DDNS, NFS |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP, SSH, DHCP |
| Cloud-Managed | Yes |
| Features | Firewall protection, DHCP support, NAT support, VLAN support, Syslog support, E-mail alert, High Availability, firmware upgradable, SSH support, DHCP server, Samba support, SMS alert, port forwarding, Single Root I/O Virtualization (SR-IOV), SNMP support, 3 fans, system log, Data Plane Development Kit (DPDK), WebDAV server support, port trunking, anti-tampering protection, password protection |
| Power | |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | AC 90-264 V |
| Power Provided | 300 Watt |
| Processor / Memory / Storage | |
| Processors Installed | 1 x Intel Xeon D-2123IT 2.2 GHz |
| RAM | 8 GB (256 GB max) DDR4 SDRAM DIMM 288-pin |
