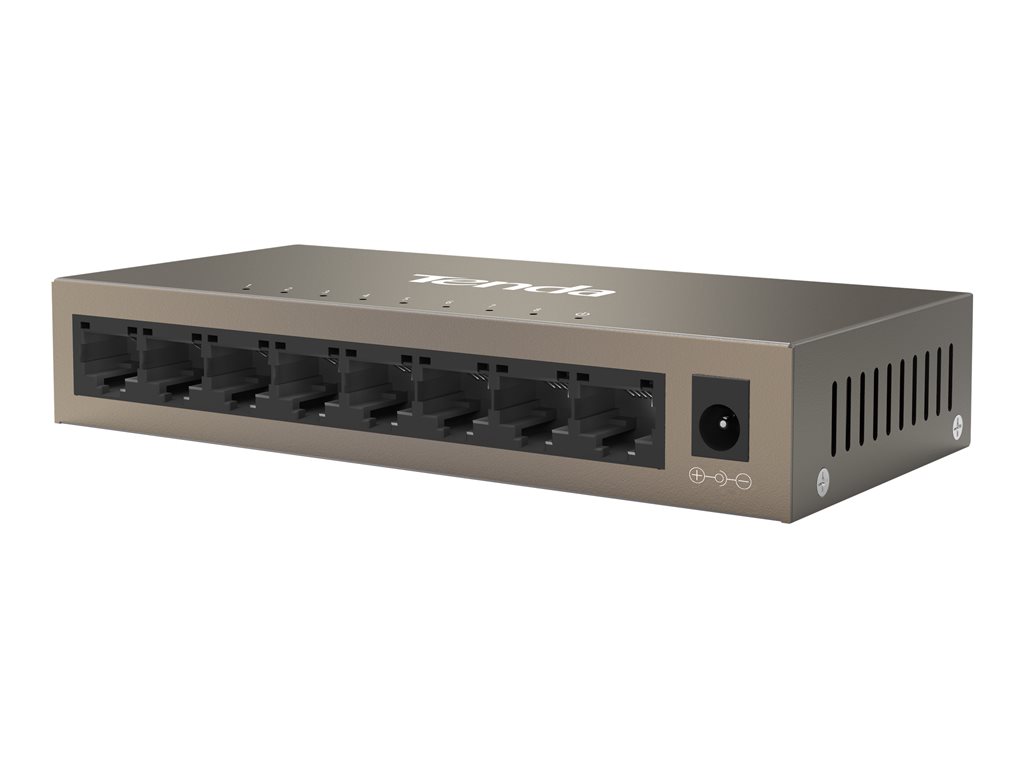

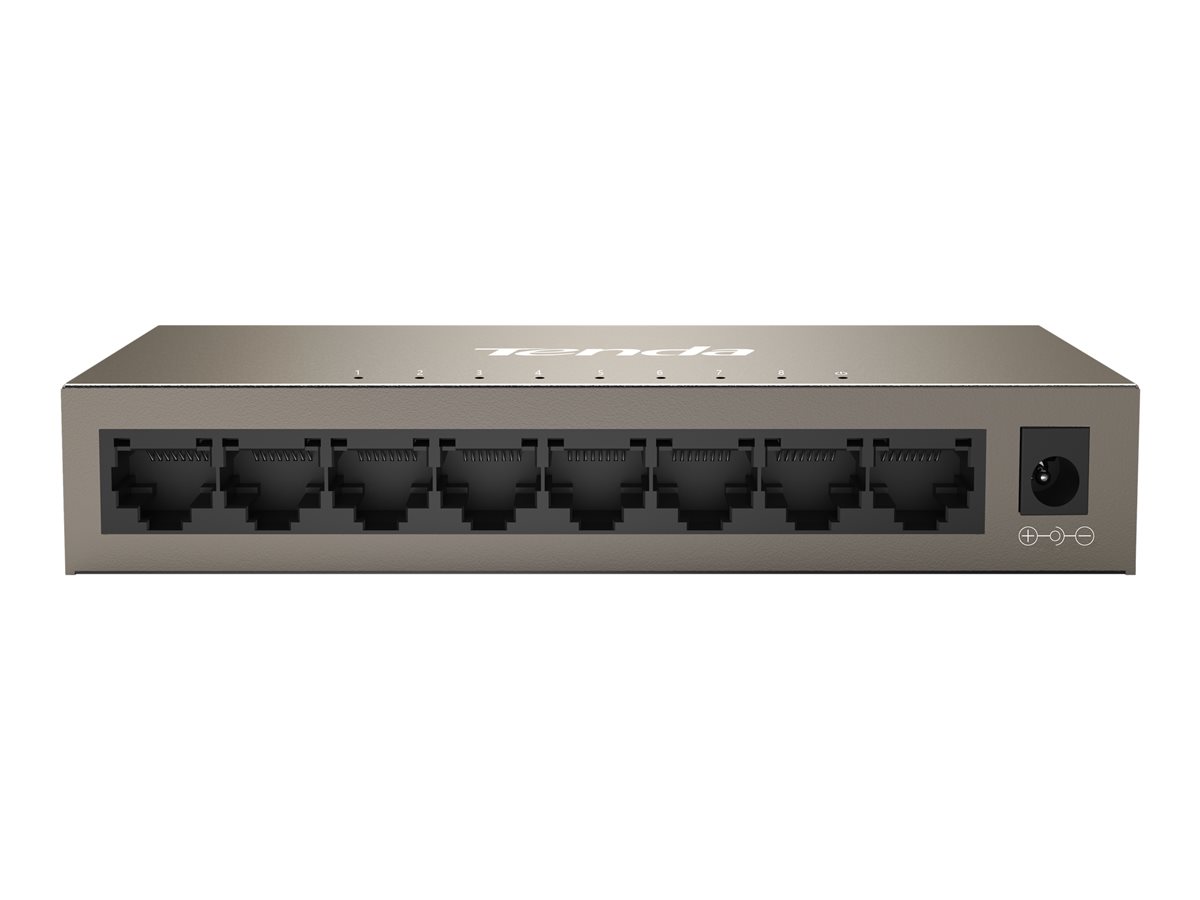

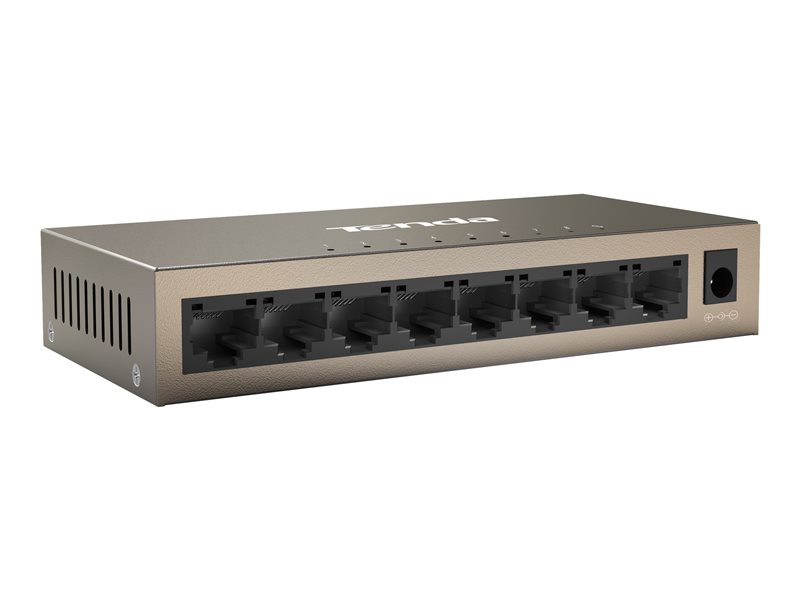

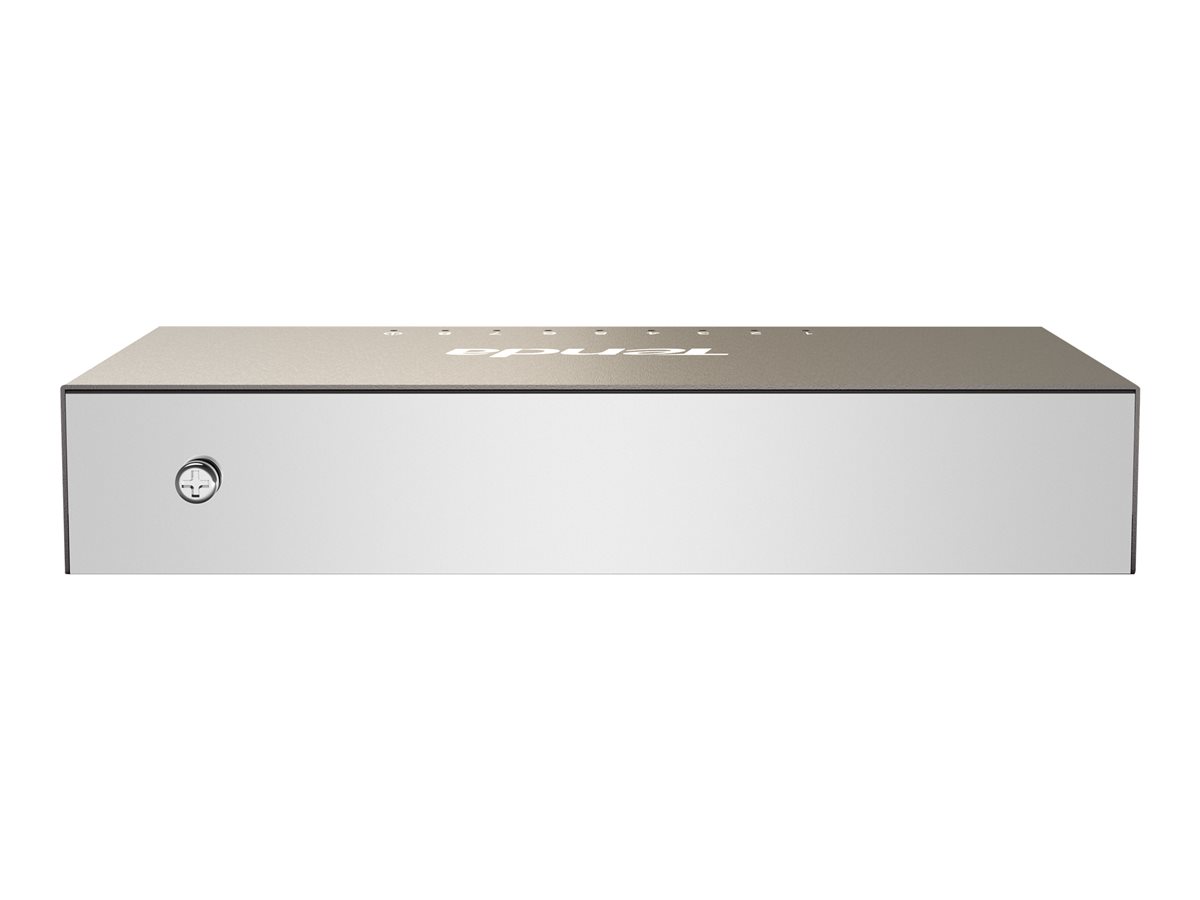

Switch - 8 x 10/100/1000 - desktop
| Main Specifications | |
|---|---|
| Product Description | Tenda TEG1008M - switch - 8 ports |
| Device Type | Switch - 8 ports |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 |
| Performance | Switching capacity: 16 Gbps ¦ Forwarding rate (10Mbps): 14880 pps ¦ Forwarding rate (100Mbps): 148800 pps ¦ Forwarding rate (1000Mbps): 1488000 pps |
| MAC Address Table Size | 4K entries |
| Features | Auto-negotiation, store and forward, wall mountable, MAC address learning, MAC address aging |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Power | AC 230 V (50/60 Hz) |
| Dimensions (WxDxH) | 5.5 in x 2.6 in x 1 in |
| System Requirements | Apple MacOS, Linux, Microsoft Windows XP / 7 / 8 (32/64 bits) |
| General | |
| Device Type | Switch - 8 ports |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 |
| Performance | Switching capacity: 16 Gbps ¦ Forwarding rate (10Mbps): 14880 pps ¦ Forwarding rate (100Mbps): 148800 pps ¦ Forwarding rate (1000Mbps): 1488000 pps |
| MAC Address Table Size | 4K entries |
| Features | Auto-negotiation, store and forward, wall mountable, MAC address learning, MAC address aging |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Status Indicators | Power, link/activity |
| Expansion / Connectivity | |
| Interfaces | 8 x 1000Base-T RJ-45 |
| Miscellaneous | |
| Compliant Standards | Plug and Play, CCC, FCC, RoHS |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 230 V (50/60 Hz) |
| Power Consumption Operational | 5 Watt |
| Software / System Requirements | |
| OS Required | Apple MacOS, Linux, Microsoft Windows XP / 7 / 8 (32/64 bits) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 5.5 in |
| Depth | 2.6 in |
| Height | 1 in |
