Network surveillance camera - PTZ - color - 8.5 MP - 1920 x 1080 - motorized - HDMI, HD-SDI - LAN - H.264 - PoE Plus - TAA Compliant
| Main Specifications | |
|---|---|

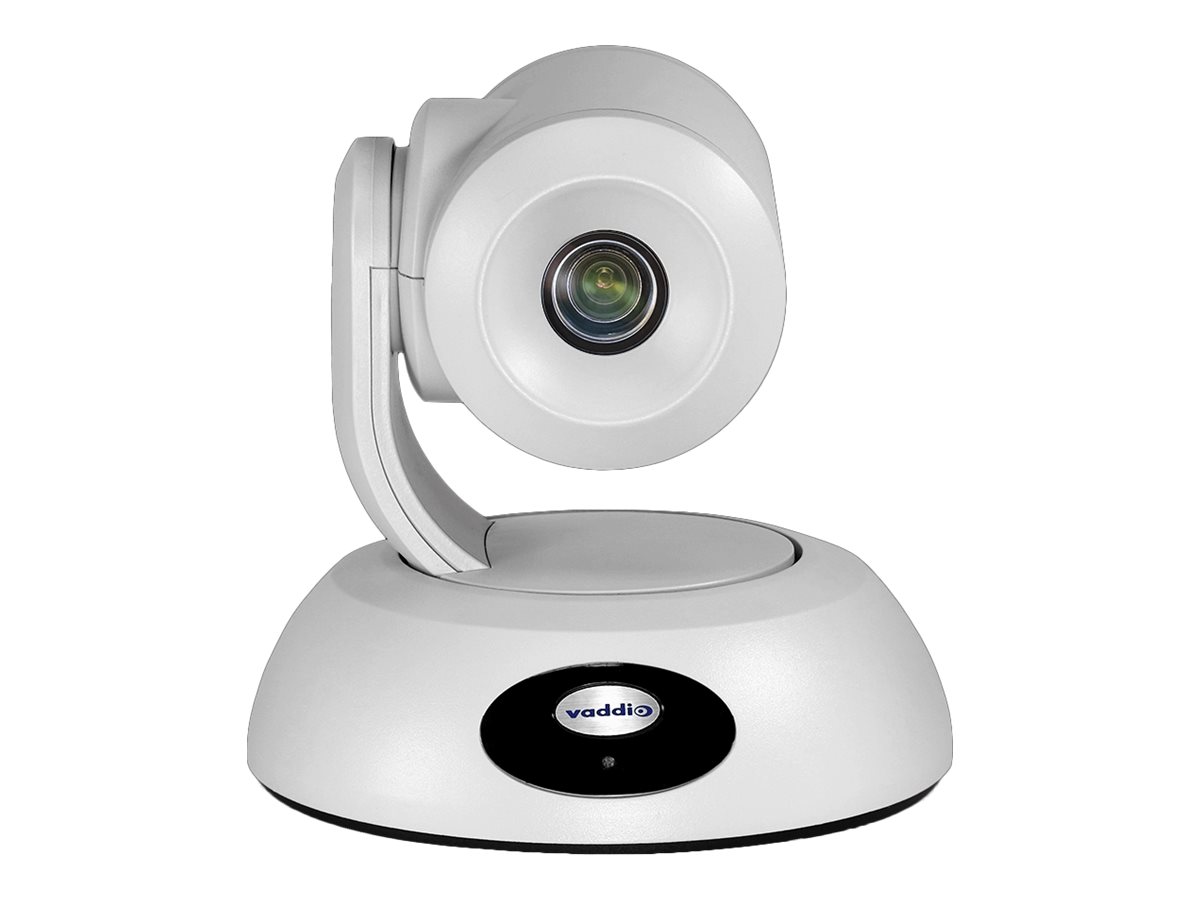

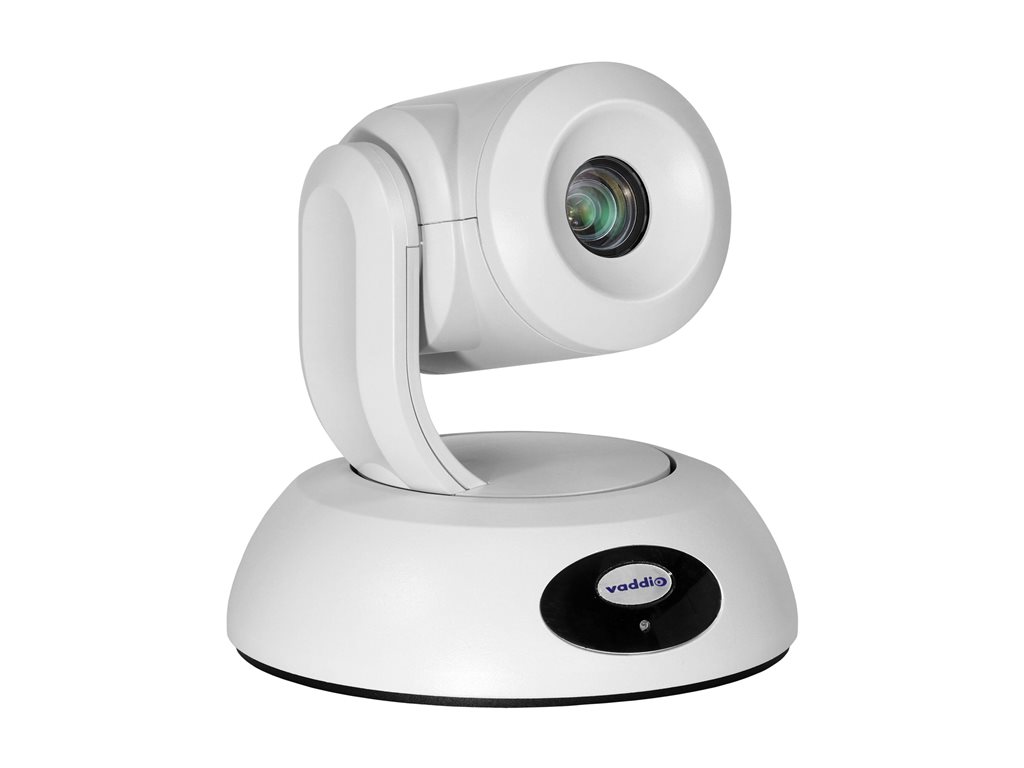

| Product Description | Vaddio RoboSHOT Elite Series 12E SDI - network surveillance camera - TAA Compliant |
| Device Type | Network surveillance camera - pan / tilt / zoom |
| Camera Mount Type | Wall mount |
| Dimensions (WxDxH) | 7.1 in x 6.7 in x 6.9 in |
| Weight | 4.85 lbs |
| Color | White |
| Connectivity Technology | Wired |
| Camera | Color |
| Optical Zoom | 12 x |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Video Modes | 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 1080/59.94i, 1080/59.94p, 720/59.94p |
| Optical Sensor Type | Exmor R CMOS - 1/2.5" - 8.5 MP |
| Minimum Illumination | 1.6 lux - color |
| Focal Length Control | Motorized zoom |
| Focal Length | 4.4 mm - 88.4 mm |
| Focus Adjustment | Automatic, manual (min distance 3.1 in) |
| Lens Iris | F/2.0-3.8 |
| Panning Range (degree) | -160 to +160 |
| Tilting Range (degree) | -30 to +90 |
| Interfaces | HDMI, HD-SDI, LAN |
| Control Interface | RS-232 |
| Voltage | PoE Plus |
| Features | Manual white balance, Backlight Compensation (BLC), Power over Ethernet, manual gain control, Wide Dynamic Range (WDR) Enhanced, auto gain control, auto white balance, noise reduction, Tri-Synchronous Motion, Auto Focus |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | 32 °F - 104 °F; 20 - 80% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Width | 7.1 in |
| Depth | 6.7 in |
| Height | 6.9 in |
| Weight | 4.85 lbs |
| Localization | United States |
| Expansion / Connectivity | |

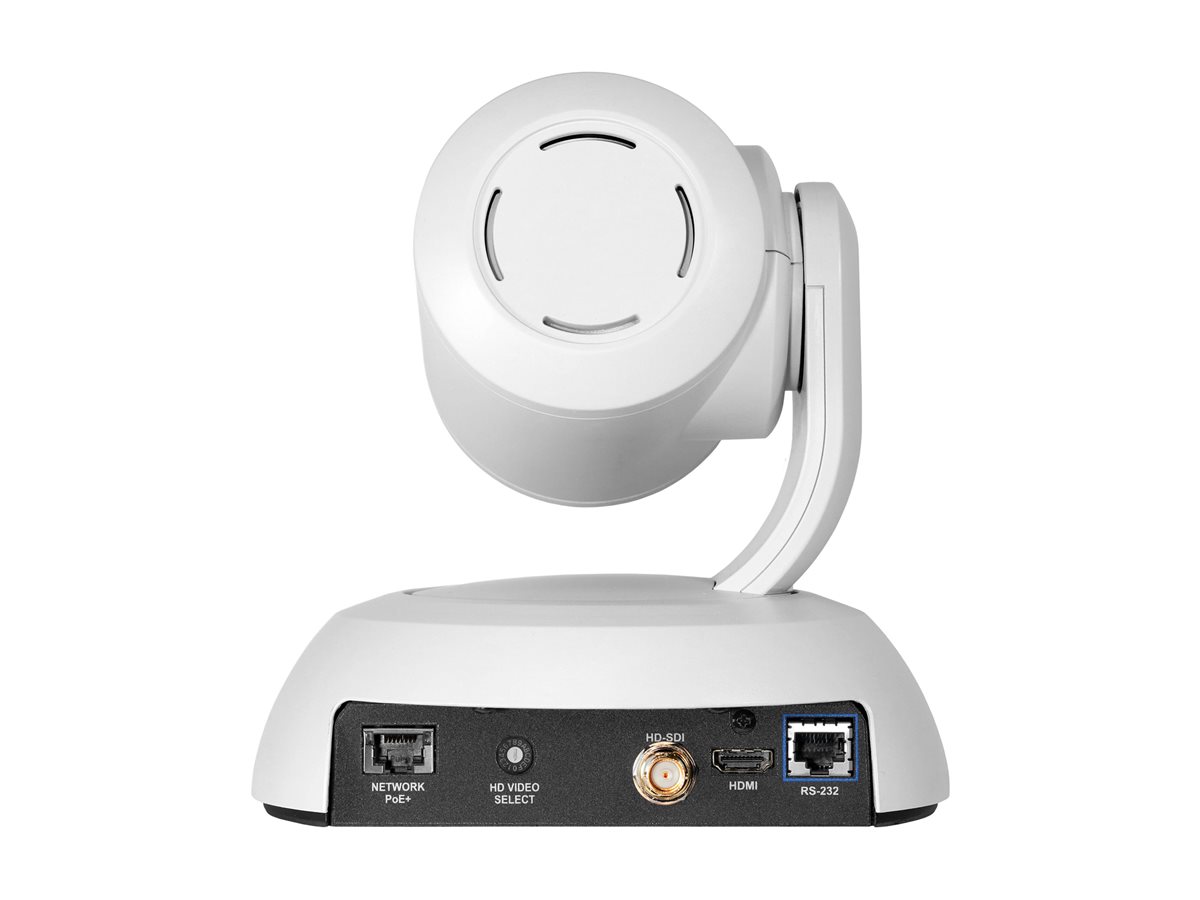

| Ports | Serial RS-232 - RJ-45 ¦ LAN/power - RJ-45 ¦ HD-SDI ¦ HDMI |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

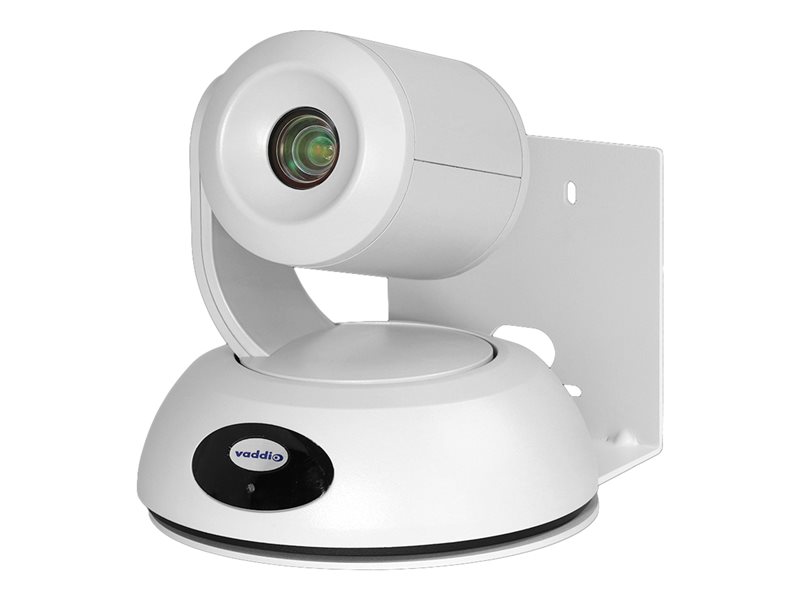

| Included Accessories | Wall mount kit, Vaddio IR Remote Commander, PoE injector |
| TAA Compliant | Yes |
| Compliant Standards | FCC |
| Color | White |
| Power | |
| Power Requirements | PoE Plus |
| Power Device | Power injector - external |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 80% (non-condensing) |
| Camera | |
| Type | Color - pan / tilt / zoom |
| Digital Video Format | H.264 |
| Max Digital Video Resolution | 1920 x 1080 |
| Video Modes | 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 1080/59.94i, 1080/59.94p, 720/59.94p |
| Exposure Range | 1/1 sec - 1/10000 sec |
| Minimum Illumination | 1.6 lux - color |
| Frame Rate (max) | 60 frames per second |
| Features | Manual white balance, Backlight Compensation (BLC), Power over Ethernet, manual gain control, Wide Dynamic Range (WDR) Enhanced, auto gain control, auto white balance, noise reduction, Tri-Synchronous Motion, Auto Focus |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 12 x |
| Focal Length | 4.4 mm - 88.4 mm |
| Lens Iris | F/2.0-3.8 |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 3.1 in |
| Horizontal Field of View (degree) | 4.1 - 70.2 |
| Image Sensor | |
| Type | 8.5 MP Exmor R CMOS 1/2.5" |
| Interfaces | |
| Video | HDMI, HD-SDI |
| Network Interface | LAN |
| Network Protocols | RTSP, Telnet, RTMP |
| Control Interface | RS-232 |
| Panning | |
| Range (degree) | -160 to +160 |
| Speed (degree/sec) | Up to 120 |
| Tilting | |
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 120 |
