Network surveillance camera - PTZ - color - 2.4 MP - 1080/60p - motorized - S-Video, HDMI - LAN - H.264 - DC 12 V - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Vaddio PrimeSHOT 20 HDMI PTZ Camera - White - network surveillance camera - TAA Compliant |
| Device Type | Network surveillance camera - pan / tilt / zoom |
| Camera Mount Type | Wall mount |
| Dimensions (WxDxH) | 7.1 in x 6.5 in x 7.3 in |
| Weight | 3.4 lbs |
| Color | White |
| Connectivity Technology | Wired |
| Camera | Color |
| Optical Zoom | 20 x |
| Frame Rate (max) | 60 frames per second |
| Video Modes | 1080/60p |
| Optical Sensor Type | CMOS - 1/3" - 2.4 MP |
| Minimum Illumination | 0.5 lux F1.6 |
| Focal Length Control | Motorized zoom |
| Focus Adjustment | Automatic, manual |
| Panning Range (degree) | -160 to +160 |
| Tilting Range (degree) | -30 to +90 |
| Interfaces | S-Video, HDMI, LAN |
| Control Interface | RS-232 |
| Voltage | DC 12 V |
| Features | Manual white balance, manual gain control, auto gain control, auto white balance, firmware upgradable, 17 preset positions |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | 32 °F - 104 °F |
| General | |
| Device Type | Network surveillance camera |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Width | 7.1 in |
| Depth | 6.5 in |
| Height | 7.3 in |
| Weight | 3.4 lbs |
| Localization | United States |
| Expansion / Connectivity | |

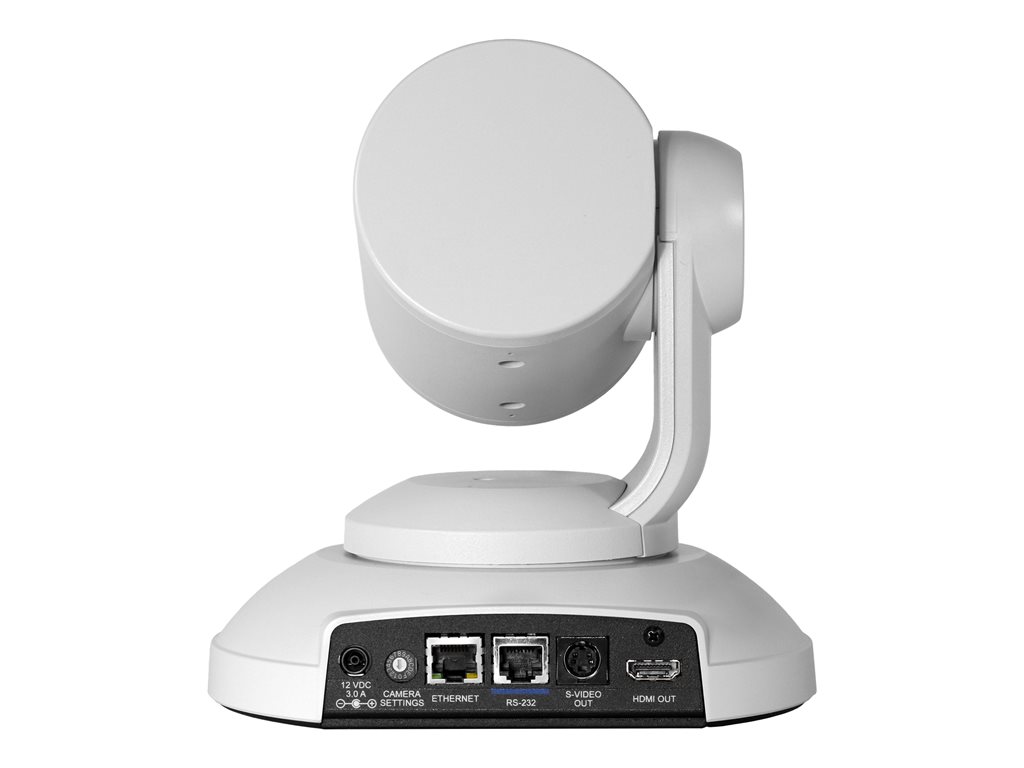

| Ports | HDMI ¦ LAN - RJ-45 ¦ Serial RS-232 - RJ-45 ¦ S-video - 4 pin mini-DIN |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Wall mount kit, Vaddio IR Remote Commander |
| TAA Compliant | Yes |
| Compliant Standards | FCC |
| Color | White |
| Power | |
| Power Requirements | DC 12 V - 3 A |
| Power Device | Power adapter - external |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Camera | |
| Type | Color - pan / tilt / zoom |
| Digital Video Format | H.264 |
| Video Modes | 1080/60p |
| Minimum Illumination | 0.5 lux F1.6 |
| Frame Rate (max) | 60 frames per second |
| Features | Manual white balance, manual gain control, auto gain control, auto white balance, firmware upgradable, 17 preset positions |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 20 x |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 2.9 - 55.4 |
| Image Sensor | |
| Type | 2.4 MP CMOS 1/3" |
| Interfaces | |
| Video | S-Video, HDMI |
| Network Interface | LAN |
| Network Protocols | HTTP, NTP, HTTPS, Telnet, SSL |
| Control Interface | RS-232 |
| Panning | |
| Range (degree) | -160 to +160 |
| Tilting | |
| Range (degree) | -30 to +90 |
