Mixer Base Kit - video conferencing kit - black - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Vaddio EasyIP 10 Video Conferencing Mixer Kit with IP PTZ Camera - Black - Mixer Base Kit - video conferencing kit - TAA Compliant |
| Device Type | Video conferencing kit |

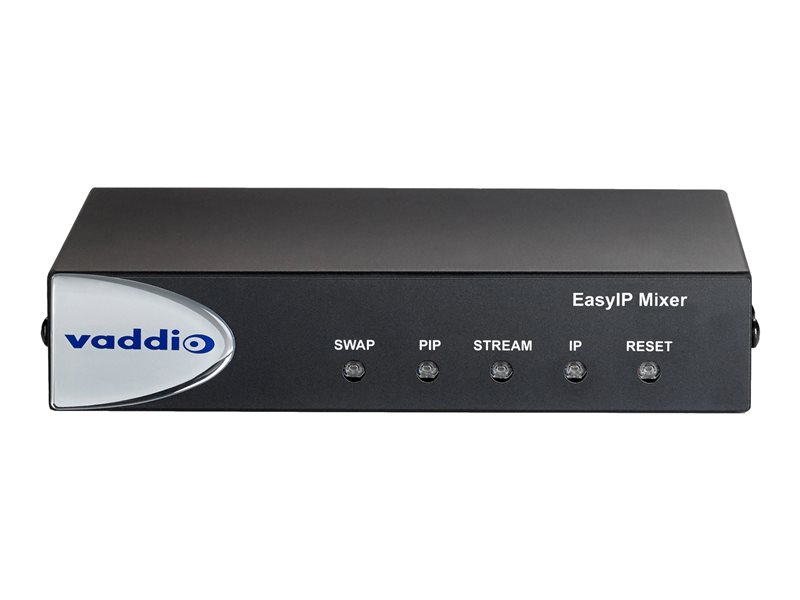

| Kit Content | Camera, EasyIP Mixer, wireless remote control, EasyIP Switch |
| Localization | United States |
| Video Input | Digital video camera - RS-232, Ethernet, HDMI |
| Video Output | Codec board - 1920 x 1080 |
| Input Device | Remote control (wireless) |
| Networking | Switch - Ethernet, Fast Ethernet, Gigabit Ethernet |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video conferencing kit |
| Kit Content | Camera, EasyIP Mixer, wireless remote control, EasyIP Switch |
| Dimensions & Weight Details | Camera - Width 7.1 in Depth 6.8 in Height 6.9 in Weight 4.9 lbs ¦ Mixer - Width 8.4 in Depth 6 in Height 1.7 in Weight 2.6 lbs |
| Enclosure Color | Black |
| Localization | United States |
| Expansion / Connectivity | |

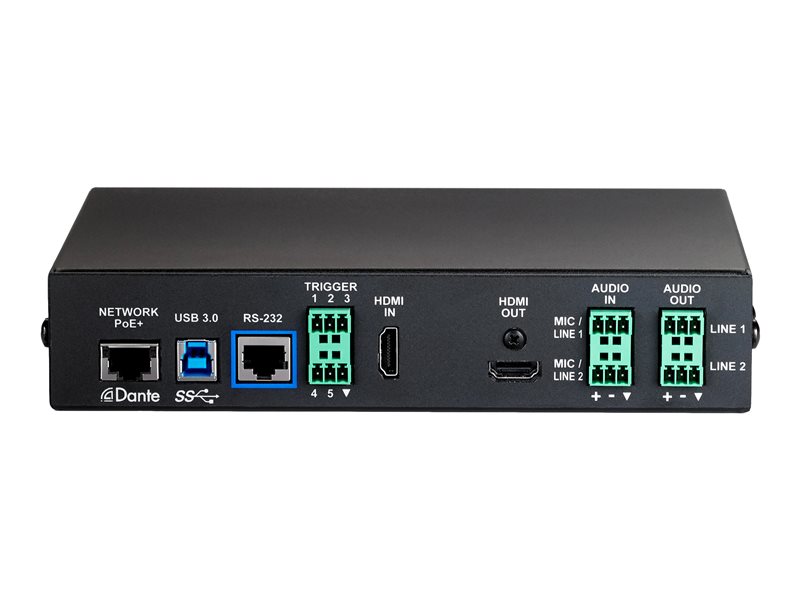

| Interfaces | 1 x network - Ethernet - RJ-45 ¦ 1 x SuperSpeed USB 3.0 - 9 pin USB Type B ¦ 1 x management - RS-232 - RJ-45 ¦ 1 x audio / video - HDMI input - 19 pin HDMI Type A ¦ 1 x audio / video - HDMI output - 19 pin HDMI Type A ¦ 2 x audio - line-in/microphone - 3 pin terminal block ¦ 2 x audio - line-out - 3 pin terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x network cable - 10 ft ¦ 1 x network cable - 3 ft ¦ 1 x SuperSpeed USB cable - 6 ft |
| Included Accessories | Wall mount, rack mount kit, 4 pin Phoenix connector |
| Compliant Standards | FCC |
| TAA Compliant | Yes |
| Networking | |
| Type | Switch |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Quality of Service (QoS), PoE+, fanless, static routing, 6KV Surge protection, VLAN trunking, self-healing network |
| Compliant Standards | IEEE 802.1Q |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Input Device | |
| Type | Remote control |
| Connectivity Technology | Wireless |
| Video Input | |

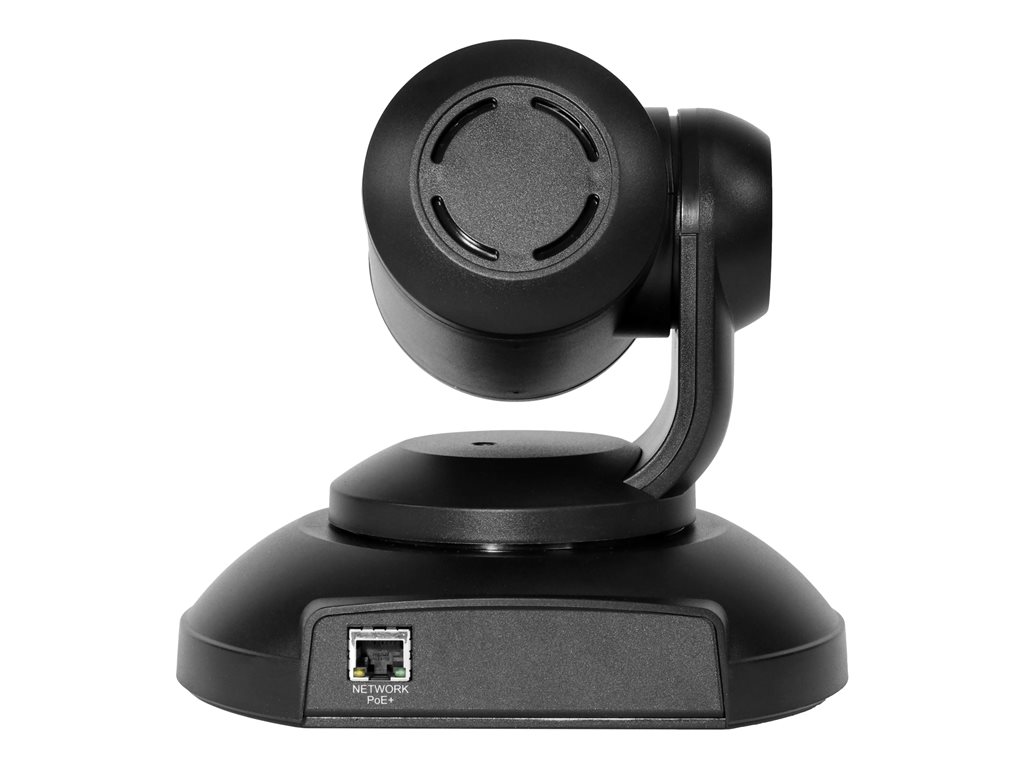

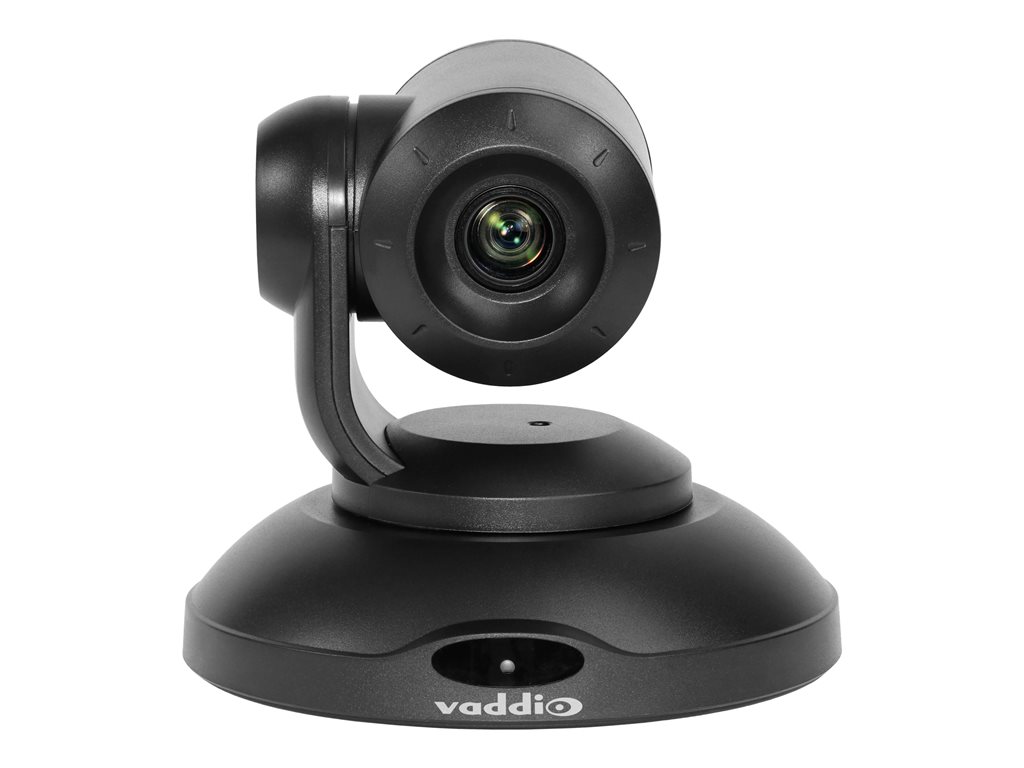

| Type | Digital video camera (color) - external |
| Interface Type | RS-232, Ethernet, HDMI |
| Digital Video Capture Resolution | 1080p |
| Video Modes | 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/25p, 1080/59.94i, 1080/59.94p, 720/59.94p, 1080/29.97i |
| Optical Zoom | 10 |
| Camera Mechanical Design | Pan / tilt / zoom |
| Features | -30° / +90° tilt, invertible, PoE+ support, 7.6° field of view (tele), 0.35 - 90°/sec pan speed, 0.35 - 90°/sec tilt speed, 1/2.8 Exmor CMOS image sensor type, 2.38 megapixels, 74° field of view, -165° / +165° pan |
| Video Output | |
| Type | Codec board - external |
| Max External Resolution | 1920 x 1080 |
| Digital Video Standard | High-Definition Multimedia Interface (HDMI) |
