Video/control/power extender - HDBaseT - up to 328 ft - TAA Compliant
| Main Specifications | |
|---|---|

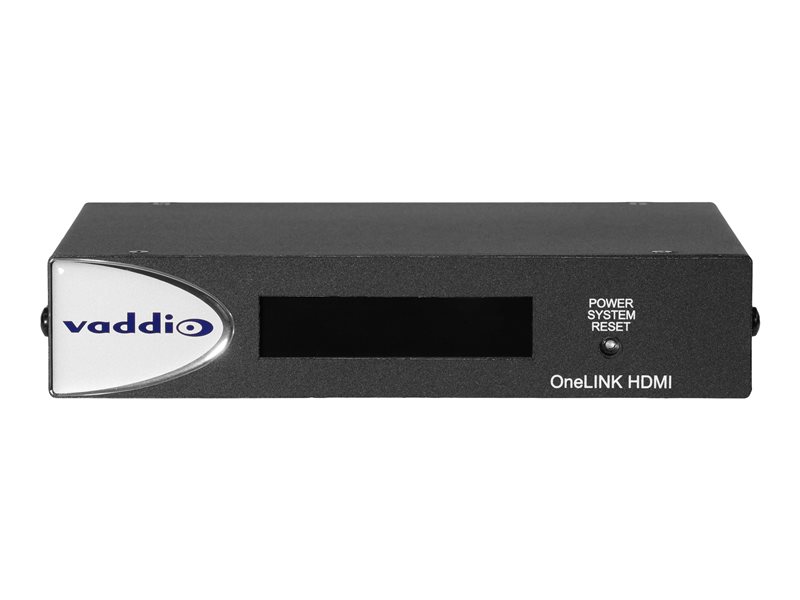

| Product Description | Vaddio OneLINK Polycom Codec Kit for OneLINK HDMI to HDBaseT Cameras Series - Video/Control/Power Extender - Black - video/control/power extender - HDBaseT - TAA Compliant |
| Device Type | Video/control/power extender |
| Form Factor | External |
| Localization | North America |
| Data Link Protocol | HDBaseT |
| Remote Management Protocol | Telnet, HTTP |
| Max Transfer Distance | 328 ft |
| Dimensions (WxDxH) | 8.4 in x 6 in x 1.7 in |
| Weight | 24.69 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/control/power extender |
| Form Factor | External |
| Color | Black |
| Localization | North America |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI - 19 pin HDMI Type A ¦ 1 x RS-232 - RJ-45 ¦ 1 x network - RJ-45 ¦ 1 x HDBaseT - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 3-pin Phoenix connector, EZCamera RS-232 control adapter |
| Cables Included | 1 x fan-out cable - 2 ft |
| Compliant Standards | UL, FCC |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT |
| Remote Management Protocol | Telnet, HTTP |
| Max Transfer Distance | 328 ft |
| Status Indicators | Link/activity |
| Features | Manageable, status display |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Dimensions & Weight | |
| Width | 8.4 in |
| Depth | 6 in |
| Height | 1.7 in |
| Weight | 24.69 oz |
