Video/control/power extender - HDBaseT - over CAT 5e/6 - up to 328 ft - TAA Compliant - for Poly RealPresence Group 300, 310, 500, 700; RoboSHOT 12, 30
| Main Specifications | |
|---|---|
| Product Description | Vaddio Polycom Codec Kit for OneLINK Bridge - For Conference Cameras - video/control/power extender - HDBaseT - TAA Compliant |
| Device Type | Video/control/power extender |
| Form Factor | External |
| Localization | North America |
| Data Link Protocol | HDBaseT |
| Transmission Medium | CAT 5e/6 |
| Remote Management Protocol | Telnet |
| Max Transfer Distance | 328 ft |
| Dimensions (WxDxH) | 8.4 in x 6 in x 1.7 in |
| Weight | 3.31 lbs |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| Designed For | Poly RealPresence Group 300-720p, 310-720p, 500-1080p, 500-720p, 700-1080p, 700-720p; RoboSHOT 12 HDMI for Polycom Codecs, 30 HDMI |
| General | |
| Device Type | Video/control/power extender |
| Form Factor | External |
| Color | Black |
| Localization | North America |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI output - 19 pin HDMI Type A ¦ 1 x RS-232 - RJ-45 ¦ 1 x camera port - RJ-45 ¦ 2 x audio line-out - terminal block ¦ 2 x audio line-in - terminal block ¦ 1 x USB 3.0 - Type B ¦ 1 x HD-SDI output |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

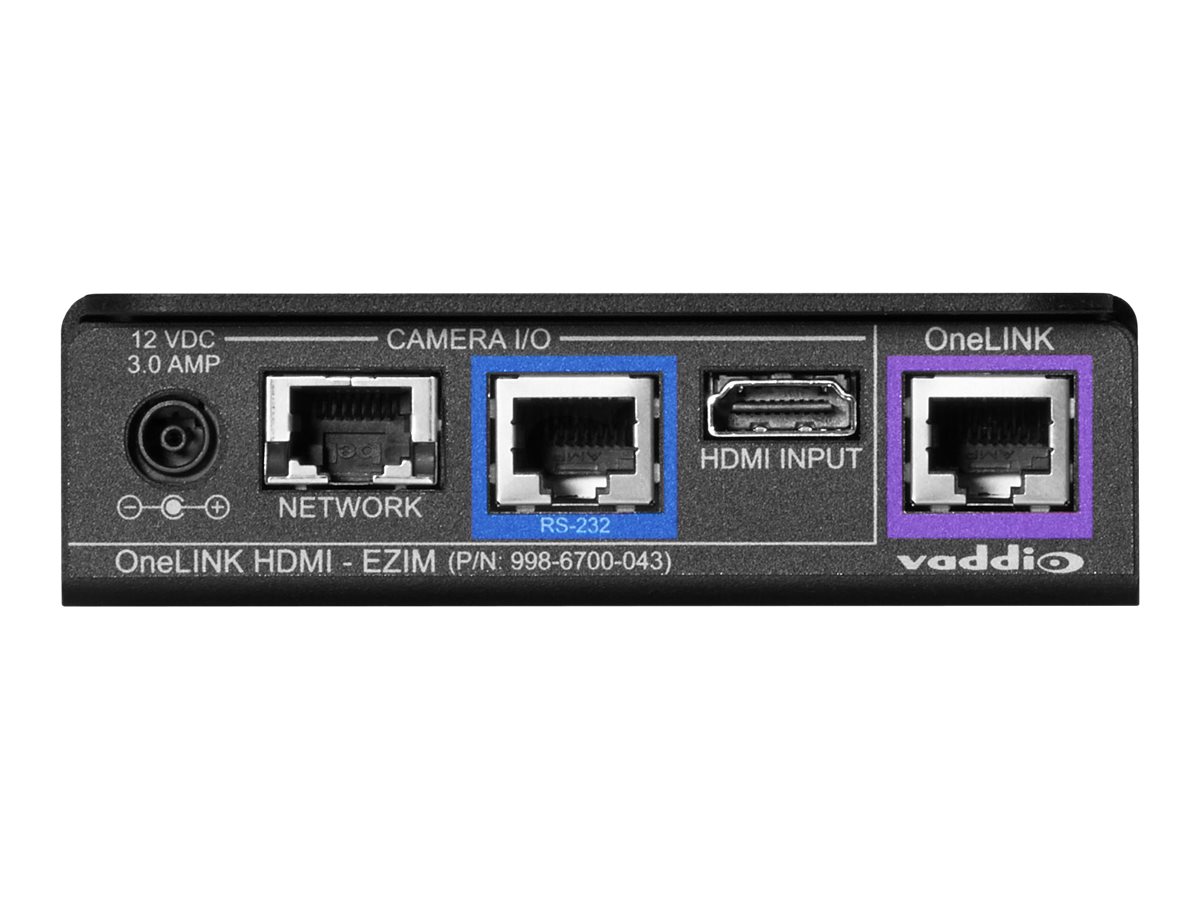

| Included Accessories | 4 x 3-position Phoenix connectors, OneLINK HDMI EZIM with mounting screws |
| Cables Included | 1 x HDMI cable - 1 ft ¦ 2 x network cable - 1 ft ¦ 2 x fan-out cable - 2 ft ¦ 1 x SuperSpeed USB cable - 6 ft |
| Compliant Standards | UL, FCC |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT |
| Remote Management Protocol | Telnet |
| Max Transfer Distance | 328 ft |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Dimensions & Weight | |
| Width | 8.4 in |
| Depth | 6 in |
| Height | 1.7 in |
| Weight | 3.31 lbs |
| Compatibility Information | |
| Designed For | Poly RealPresence Group 300-720p, 310-720p, 500-1080p, 500-720p, 700-1080p, 700-720p ¦ Vaddio RoboSHOT 12 HDMI for Polycom Codecs, 30 HDMI |
