Video/control/power extender - HDBaseT - over CAT 5e/6 - up to 328 ft - TAA Compliant - for Panasonic AW-HE130, HE2P, HE38, HE40, HE42, HEA10; Sony SRG-120, X120, X400, XB25, XP1
| Main Specifications | |
|---|---|

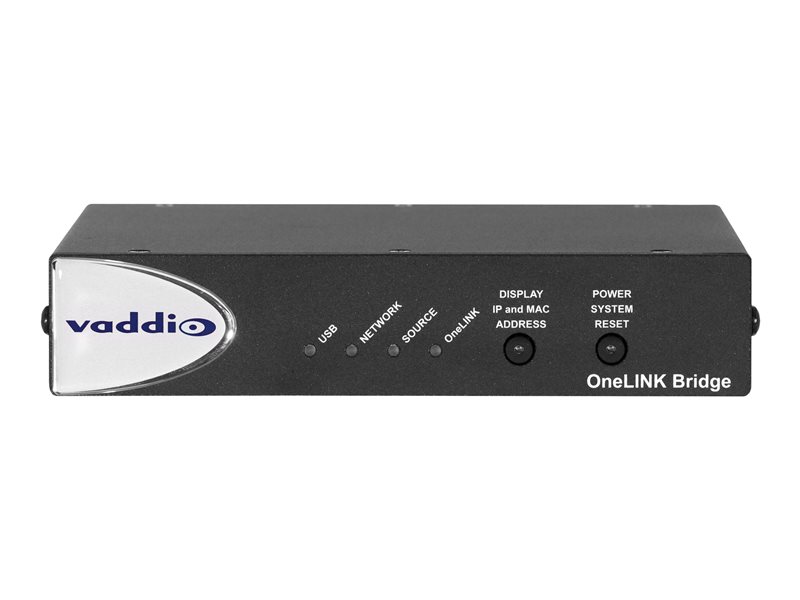

| Product Description | Vaddio OneLINK Bridge for Conference Cameras - AV Extender - Black - video/control/power extender - HDBaseT - TAA Compliant |
| Device Type | Video/control/power extender |
| Form Factor | External |
| Localization | North America |
| Data Link Protocol | HDBaseT |
| Transmission Medium | CAT 5e/6 |
| Remote Management Protocol | Telnet |
| Max Transfer Distance | 328 ft |
| Dimensions (WxDxH) | 8.4 in x 6.5 in x 1.7 in |
| Weight | 3.31 lbs |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| Designed For | Panasonic AW-HE100, AW-HE120, AW-HE130, AW-HE2, AW-HE2E, AW-HE2P, AW-HE38, AW-HE40, AW-HE42, AW-HE50, AW-HE60, AW-HE870, AW-HEA10; Sony SRG-120, SRG-300, SRG-360, SRG-X120, SRG-X400, SRG-XB25, SRG-XP1 |
| General | |
| Device Type | Video/control/power extender |
| Form Factor | External |
| Color | Black |
| Localization | North America |
| Expansion / Connectivity | |

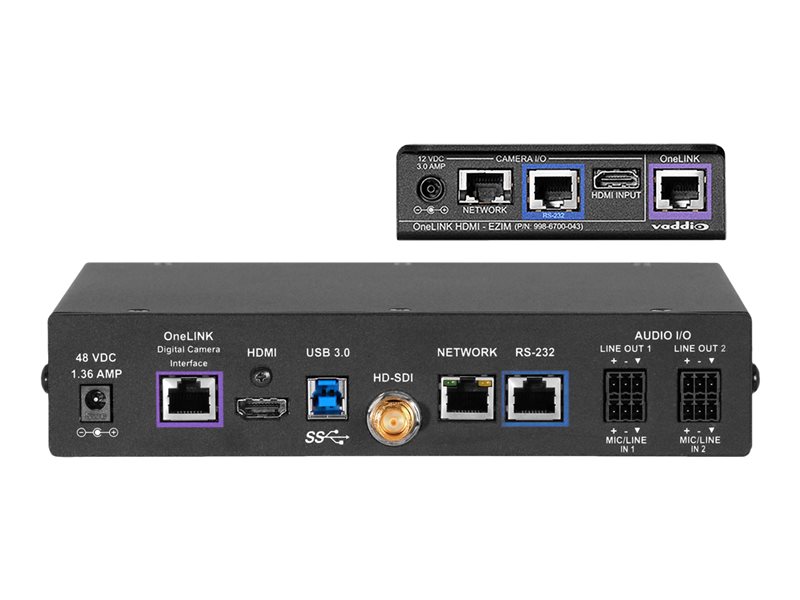

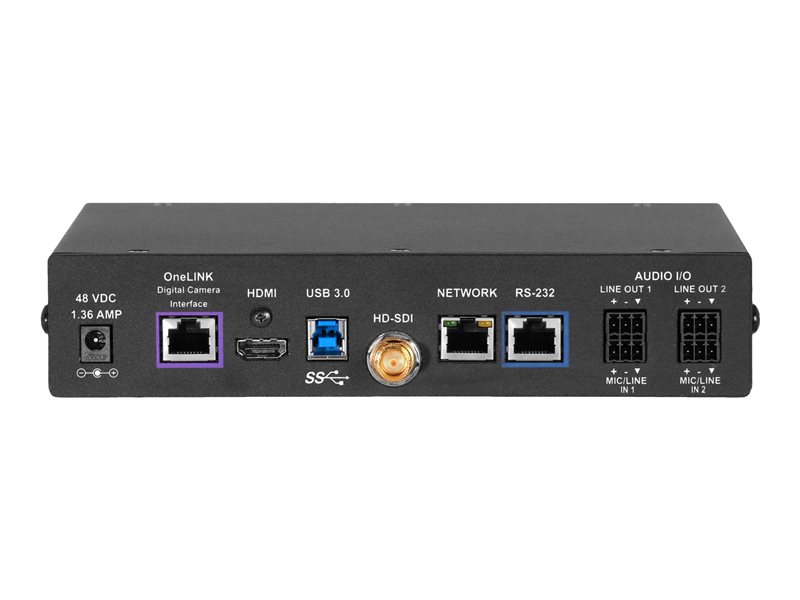

| Interfaces | 1 x HDMI - 19 pin HDMI Type A ¦ 1 x RS-232 - RJ-45 ¦ 1 x camera port - RJ-45 ¦ 2 x audio line-out - terminal block ¦ 2 x audio line-in - terminal block ¦ 1 x USB 3.0 - Type B ¦ 1 x HD-SDI output ¦ 1 x network - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 4 x 3-position Phoenix connectors, OneLINK HDMI EZIM with mounting screws |
| Cables Included | 1 x HDMI cable - 1 ft ¦ 2 x network cable - 1 ft ¦ 1 x RJ-45 to 8 pin mini-DIN cable - 1 ft ¦ 1 x SuperSpeed USB cable - 6 ft |
| Compliant Standards | UL, FCC |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT |
| Remote Management Protocol | Telnet |
| Max Transfer Distance | 328 ft |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Dimensions & Weight | |
| Width | 8.4 in |
| Depth | 6.5 in |
| Height | 1.7 in |
| Weight | 3.31 lbs |
| Compatibility Information | |
| Designed For | Panasonic AW-HE100, AW-HE100E, AW-HE120, AW-HE120W, AW-HE130, AW-HE130KEJ, AW-HE130WEJ, AW-HE2, AW-HE2E, AW-HE2P, AW-HE38HKPC, AW-HE38HKPJ, AW-HE38HWPC, AW-HE38HWPJ, AW-HE40HK, AW-HE40HKP, AW-HE40HW, AW-HE40HWEJ, AW-HE40SK, AW-HE40SW, AW-HE40SWEJ, AW-HE42K, AW-HE42W, AW-HE50H, AW-HE50HE, AW-HE50HN, AW-HE50S, AW-HE50SE, AW-HE50SN, AW-HE60HE, AW-HE60HN, AW-HE60SE, AW-HE60SN, AW-HE870E, AW-HEA10, AW-HEA10WEJ ¦ Sony SRG-120DH, SRG-120DS, SRG-120DU, SRG-300H, SRG-300HC, SRG-300HW, SRG-360SHE, SRG-X120, SRG-X120BC, SRG-X120WC, SRG-X400, SRG-X400BC, SRG-X400WC, SRG-XB25, SRG-XP1 |
