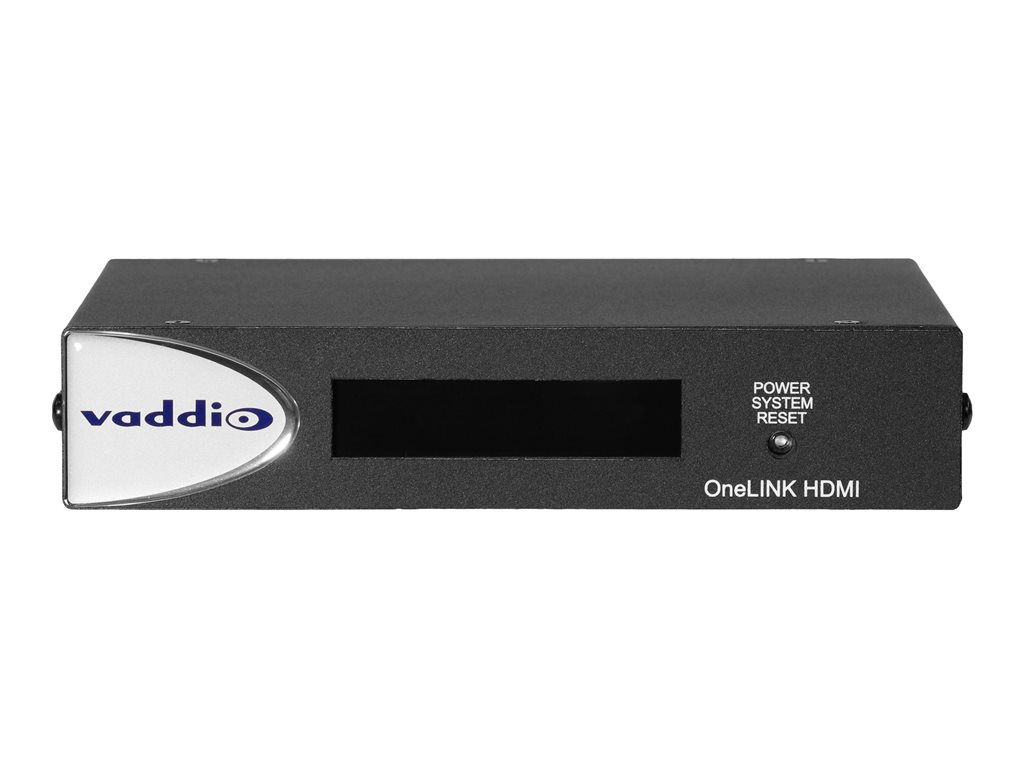

Video/control/power extender - HDBaseT - over CAT 5e/6 - up to 328 ft - TAA Compliant - for RoboSHOT 20, 40, IW Smart Glass OneLINK Bridge System, IW Smart Glass OneLINK HDMI System
| Main Specifications | |
|---|---|
| Product Description | Vaddio Cisco Codec Kit for OneLINK HDMI to HDBaseT Cameras - Black - video/control/power extender - HDBaseT - TAA Compliant |
| Device Type | Video/control/power extender |
| Form Factor | External |
| Localization | North America |
| Data Link Protocol | HDBaseT |
| Transmission Medium | CAT 5e/6 |
| Remote Management Protocol | Telnet |
| Max Transfer Distance | 328 ft |
| Dimensions (WxDxH) | 8.4 in x 6 in x 1.7 in |
| Weight | 24.69 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| Designed For | Cisco TelePresence System SX20, SX80; DocCAM 20; RoboSHOT 12E, 20, 30E, 40, IW Clear Glass OneLINK Bridge System, IW Clear Glass OneLINK HDMI System, IW Smart Glass, IW Smart Glass OneLINK Bridge System, IW Smart Glass OneLINK HDMI System |
| General | |
| Device Type | Video/control/power extender |
| Form Factor | External |
| Color | Black |
| Localization | North America |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI output - 19 pin HDMI Type A ¦ 1 x RS-232 - RJ-45 ¦ 1 x camera port - RJ-45 ¦ 1 x network - RJ-45 ¦ 1 x IR - terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x HDMI cable - 1 ft ¦ 1 x HDCI cable - 3 ft ¦ 2 x network cable - 1.2 in ¦ 1 x network cable - 3 ft ¦ 1 x serial adapter |
| Compliant Standards | UL, FCC |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT |
| Remote Management Protocol | Telnet |
| Max Transfer Distance | 328 ft |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Dimensions & Weight | |
| Width | 8.4 in |
| Depth | 6 in |
| Height | 1.7 in |
| Weight | 24.69 oz |
| Compatibility Information | |
| Designed For | Cisco TelePresence System SX20 Codec, SX80 Codec ¦ Vaddio DocCAM 20 HDBT OneLINK HDMI System ¦ Vaddio RoboSHOT 12E HDBT, 12E HDBT OneLINK HDMI System for Cisco SX Codecs, 20 UHD, 20 UHD OneLINK Bridge System, 20 UHD OneLINK HDMI PTZ Camera System, 20 UHD OneLINK HDMI System, 30E HDBT, 30E HDBT OneLINK Bridge System, 30E HDBT OneLINK HDMI System, 40 UHD, 40 UHD OneLINK Bridge System, 40 UHD OneLINK HDMI System, IW Clear Glass OneLINK Bridge System, IW Clear Glass OneLINK HDMI System, IW Smart Glass, IW Smart Glass OneLINK Bridge System, IW Smart Glass OneLINK HDMI System |
