Video/control/power extender - HDBaseT - over CAT 5e/6 - up to 328 ft - TAA Compliant - for Cisco TelePresence System SX20, SX80; RoboSHOT 12, 30
| Main Specifications | |
|---|---|

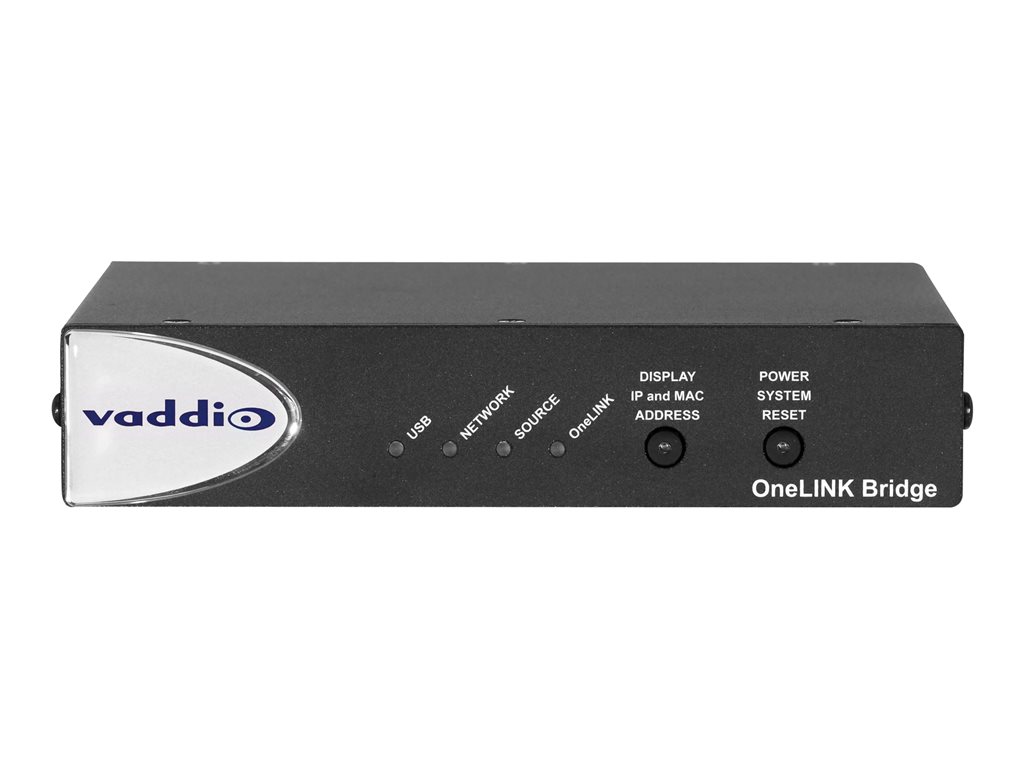

| Product Description | Vaddio Cisco Codec Kit for OneLINK Bridge - For Conference Cameras - Black - video/control/power extender - HDBaseT - TAA Compliant |
| Device Type | Video/control/power extender |
| Form Factor | External |
| Localization | United States |
| Data Link Protocol | HDBaseT |
| Transmission Medium | CAT 5e/6 |
| Remote Management Protocol | Telnet |
| Max Transfer Distance | 328 ft |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |

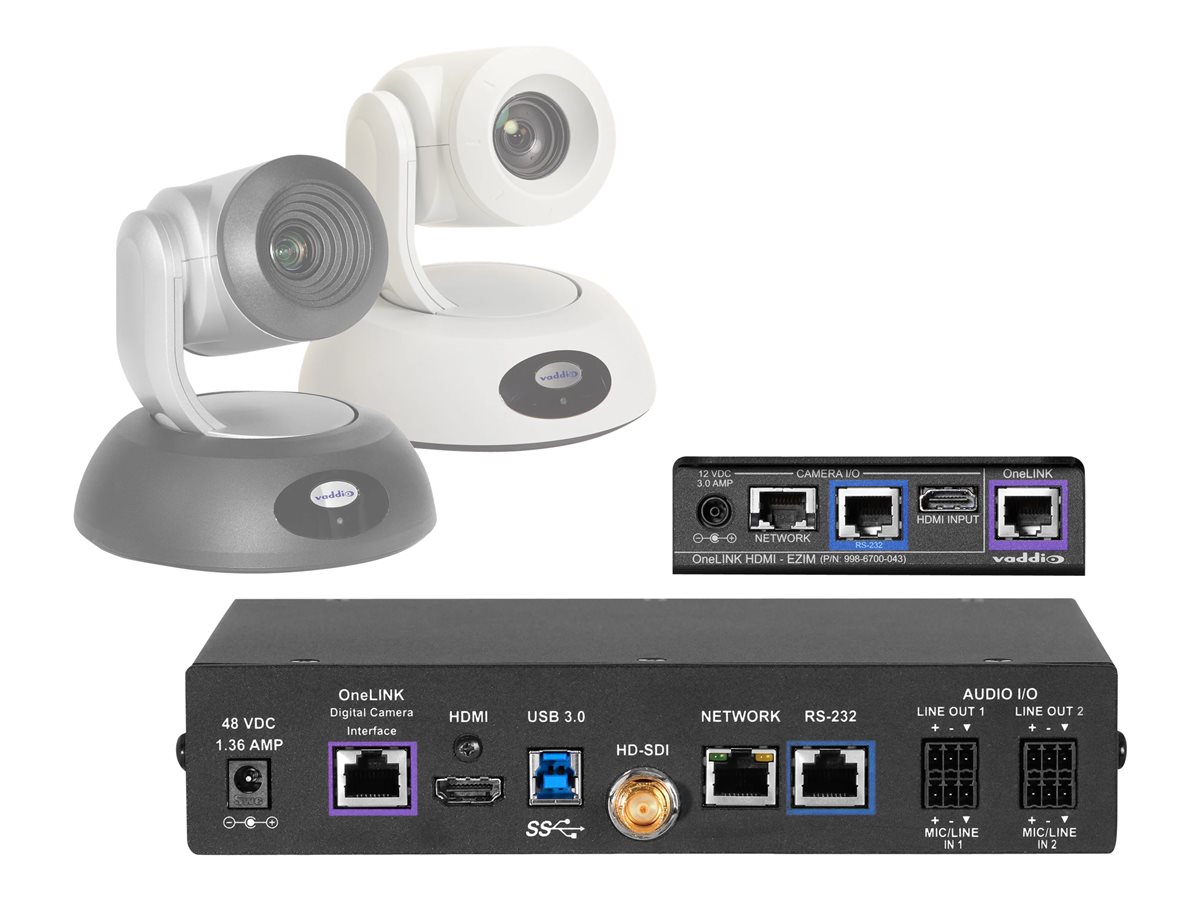

| Designed For | Cisco TelePresence System SX20 Codec, SX80 Codec; OneLINK Cisco Codec Kit for OneLINK Bridge to Cisco Cameras; RoboSHOT 12 HDMI for Cisco SX Codecs, 30 HDMI |
| General | |
| Device Type | Video/control/power extender |
| Form Factor | External |
| Color | Black |
| Localization | United States |
| Expansion / Connectivity | |

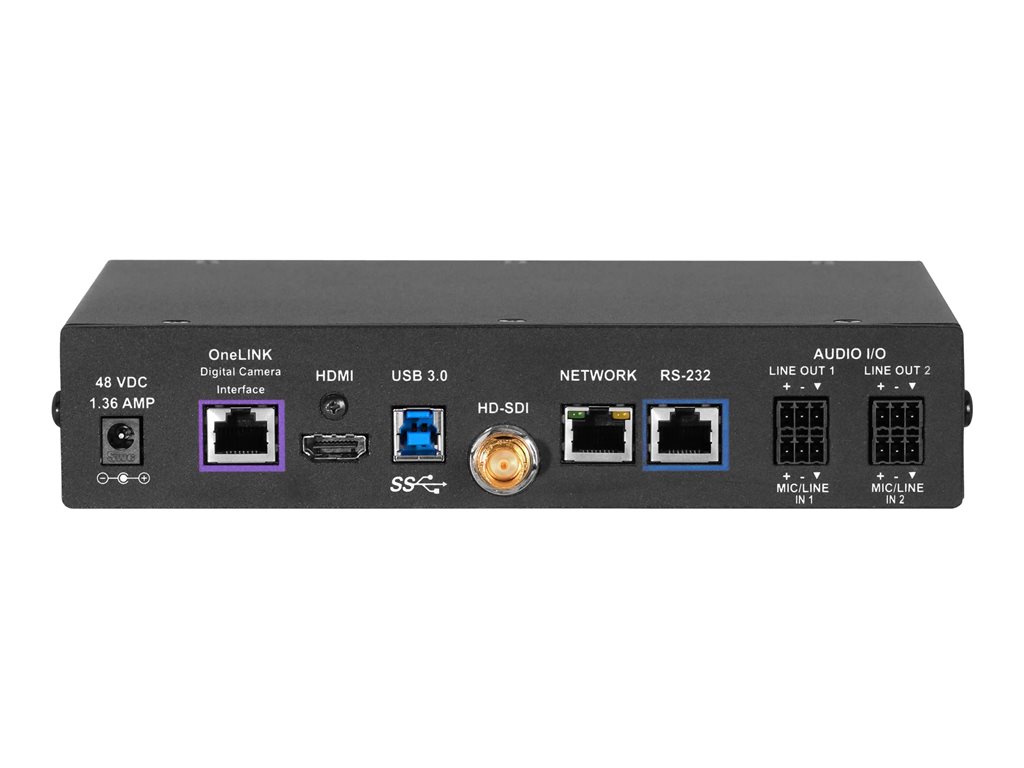

| Interfaces | 1 x HDMI input - 19 pin HDMI Type A ¦ 2 x RS-232 - RJ-45 ¦ 2 x camera port ¦ 1 x HDMI output - 19 pin HDMI Type A ¦ 2 x audio line-out - terminal block ¦ 2 x audio line-in - terminal block ¦ 1 x USB 3.0 - Type B ¦ 1 x HD-SDI output |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x HDMI cable - 1 ft ¦ 1 x HDCI cable - 3 ft ¦ 2 x network cable - 1.2 in ¦ 1 x network cable - 3 ft ¦ 1 x serial adapter ¦ 1 x SuperSpeed USB cable - 6 ft |
| Compliant Standards | UL, FCC |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT |
| Remote Management Protocol | Telnet |
| Max Transfer Distance | 328 ft |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Dimensions & Weight | |

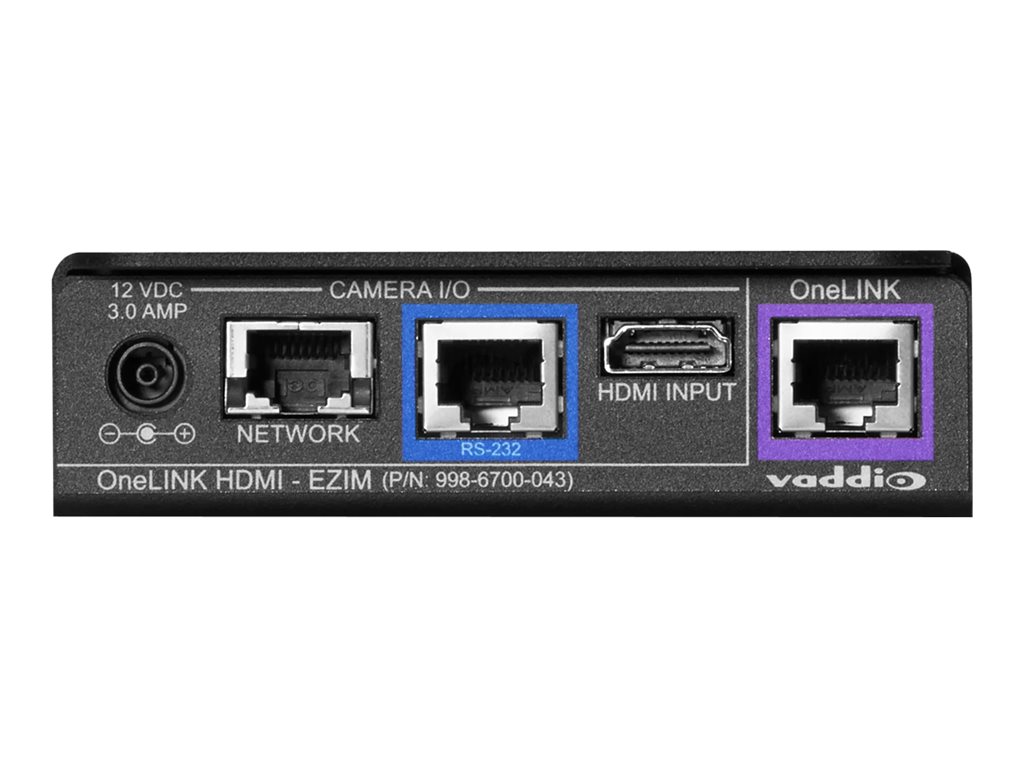

| Dimensions (WxDxH) / Weight Details | Receiver: 8.4 in x 6 in x 1.7 in / 3.3 lbs ¦ Transmitter: 4.3 in x 3.9 in x 1.2 in / 19 oz |
| Compatibility Information | |
| Designed For | Cisco TelePresence System SX20 Codec, SX80 Codec ¦ Vaddio OneLINK Cisco Codec Kit for OneLINK Bridge to Cisco Cameras ¦ Vaddio RoboSHOT 12 HDMI for Cisco SX Codecs, 30 HDMI |
