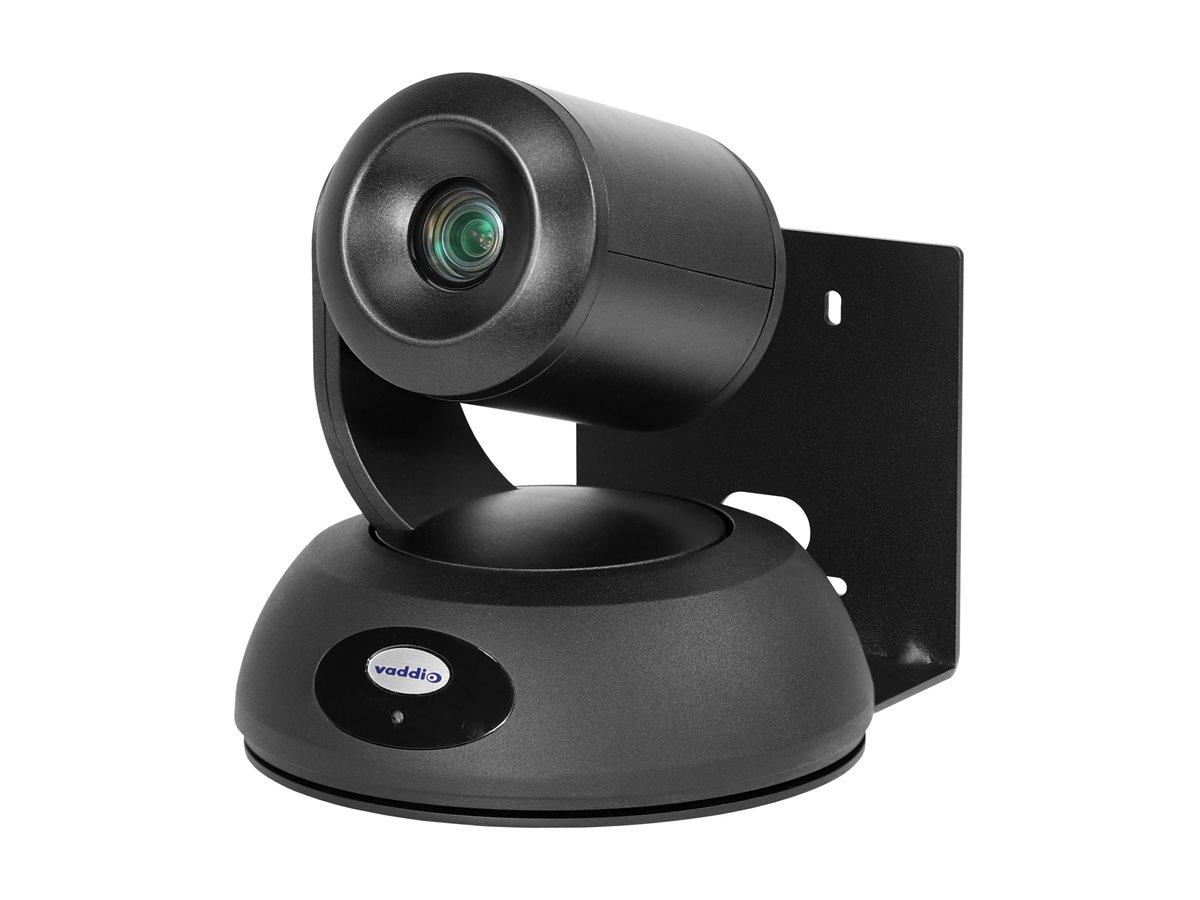

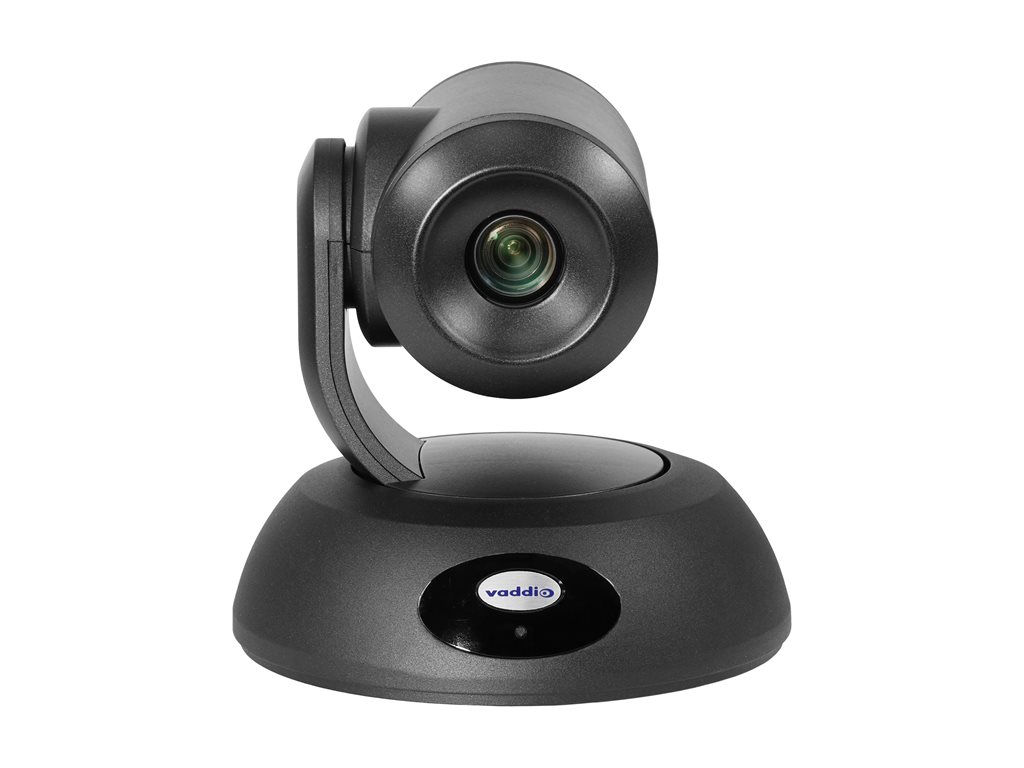

Conference camera - PTZ - color - 8.6 MP - 1080/60p - motorized - component, HDMI, HD-SDI - DC 36 V - TAA Compliant
| Main Specifications | |
|---|---|

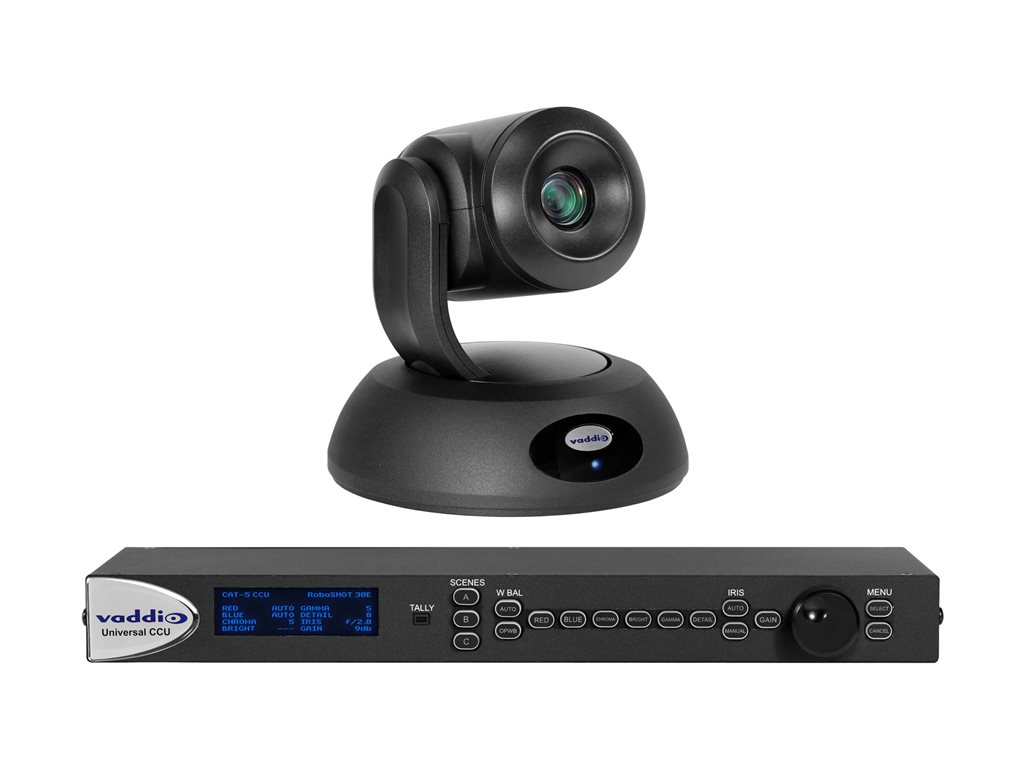

| Product Description | Vaddio RoboSHOT Elite Series 30E QCCU Conference Camera System - Includes PTZ Camera - Black - conference camera - TAA Compliant |
| Device Type | Conference camera - pan / tilt / zoom |
| Camera Mount Type | Wall mount |
| Dimensions (WxDxH) | 7.1 in x 6.7 in x 6.9 in |
| Weight | 4.85 lbs |
| Color | Black |
| Connectivity Technology | Wired |
| Camera | Color |
| Optical Zoom | 20 x |
| Frame Rate (max) | 60 frames per second |
| Video Modes | 1080/60p |
| Optical Sensor Type | Exmor R CMOS - 1/2.5" - 8.6 MP |
| Minimum Illumination | 1 lux - color - F1.6 |
| Focal Length Control | Motorized zoom |
| Focus Adjustment | Automatic, manual |
| Panning Range (degree) | -150 to +150 |
| Tilting Range (degree) | -30 to +90 |
| Interfaces | Component video, HDMI, HD-SDI |
| Control Interface | RS-232 |
| Voltage | DC 36 V |
| Features | Manual white balance, Backlight Compensation (BLC), 16 preset positions, manual gain control, auto gain control, auto white balance, noise reduction, Tri-Synchronous Motion, 10x IntelliZoom, invertible |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Conference camera |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Width | 7.1 in |
| Depth | 6.7 in |
| Height | 6.9 in |
| Weight | 4.85 lbs |
| Localization | United States |
| Expansion / Connectivity | |

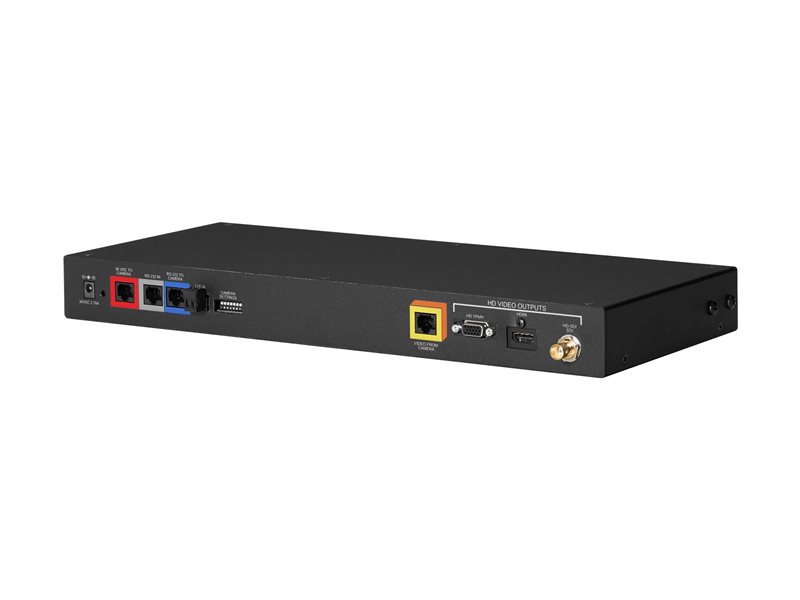

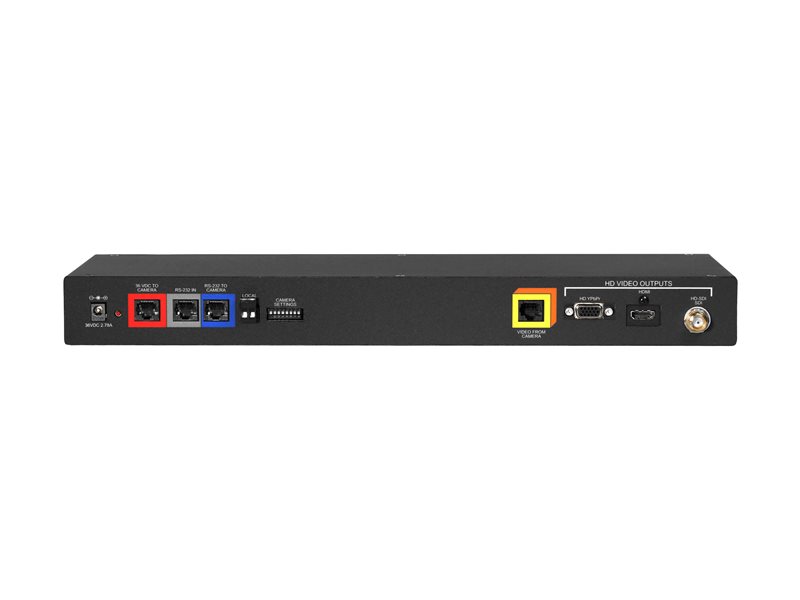

| Ports | 2 x serial RS-232 - RJ-45 ¦ EZPower HD video - RJ-45 ¦ Component video output - HD-15 ¦ HDMI ¦ HD-SDI |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |

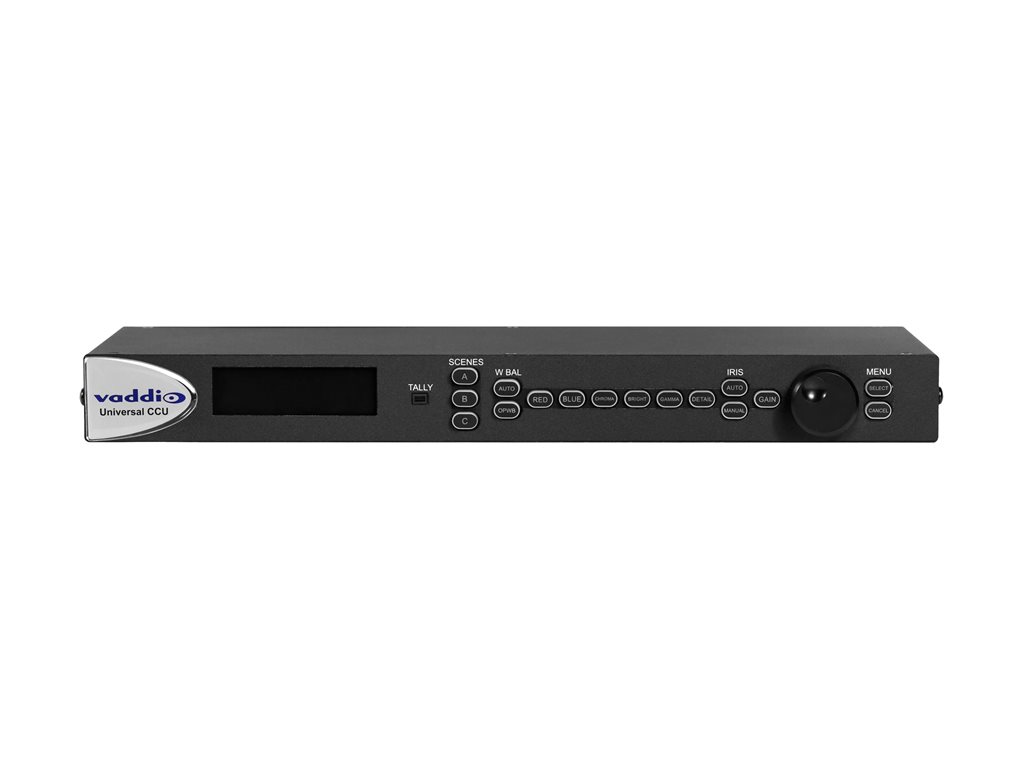

| Included Accessories | Wall mount kit, Vaddio IR Remote Commander, Vaddio Quick-Connect Universal CCU Cat-5 Interface, 2 rack ears |
| TAA Compliant | Yes |
| Compliant Standards | FCC |
| Color | Black |
| Power | |
| Power Requirements | DC 36 V |
| Power Device | Power adapter - external |
| Camera | |
| Type | Color - pan / tilt / zoom |
| Video Modes | 1080/60p |
| Digital Zoom | 10 |
| Minimum Illumination | 1 lux - color - F1.6 |
| Frame Rate (max) | 60 frames per second |
| Features | Manual white balance, Backlight Compensation (BLC), 16 preset positions, manual gain control, auto gain control, auto white balance, noise reduction, Tri-Synchronous Motion, 10x IntelliZoom, invertible |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 20 x |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 4.1 - 70.2 |
| Image Sensor | |
| Type | 8.6 MP Exmor R CMOS 1/2.5" |
| Interfaces | |
| Video | Component video, HDMI, HD-SDI |
| Network Protocols | HTTP, Telnet |
| Control Interface | RS-232 |
| Panning | |
| Range (degree) | -150 to +150 |
| Speed (degree/sec) | Up to 120 |
| Tilting | |
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 120 |
