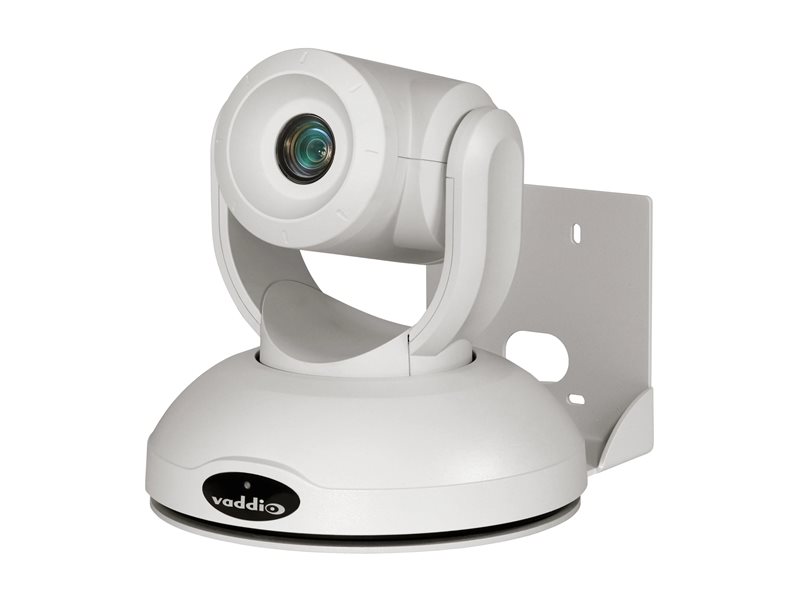

Network surveillance camera - PTZ - color - 8.5 MP - 3840 x 2160 - 2160/30p - motorized - HDMI, HD-SDI - HDBaseT - H.264 - DC 12 V / LTPoE ++ - TAA Compliant - with Vaddio OneLINK HDMI
| Main Specifications | |
|---|---|
| Product Description | Vaddio RoboSHOT 40 UHD OneLINK HDMI Video Conferencing System - Includes PTZ Camera and HDMI Receiver - White - network surveillance camera - TAA Compliant - with Vaddio OneLINK HDMI |
| Device Type | Network surveillance camera - pan / tilt / zoom |

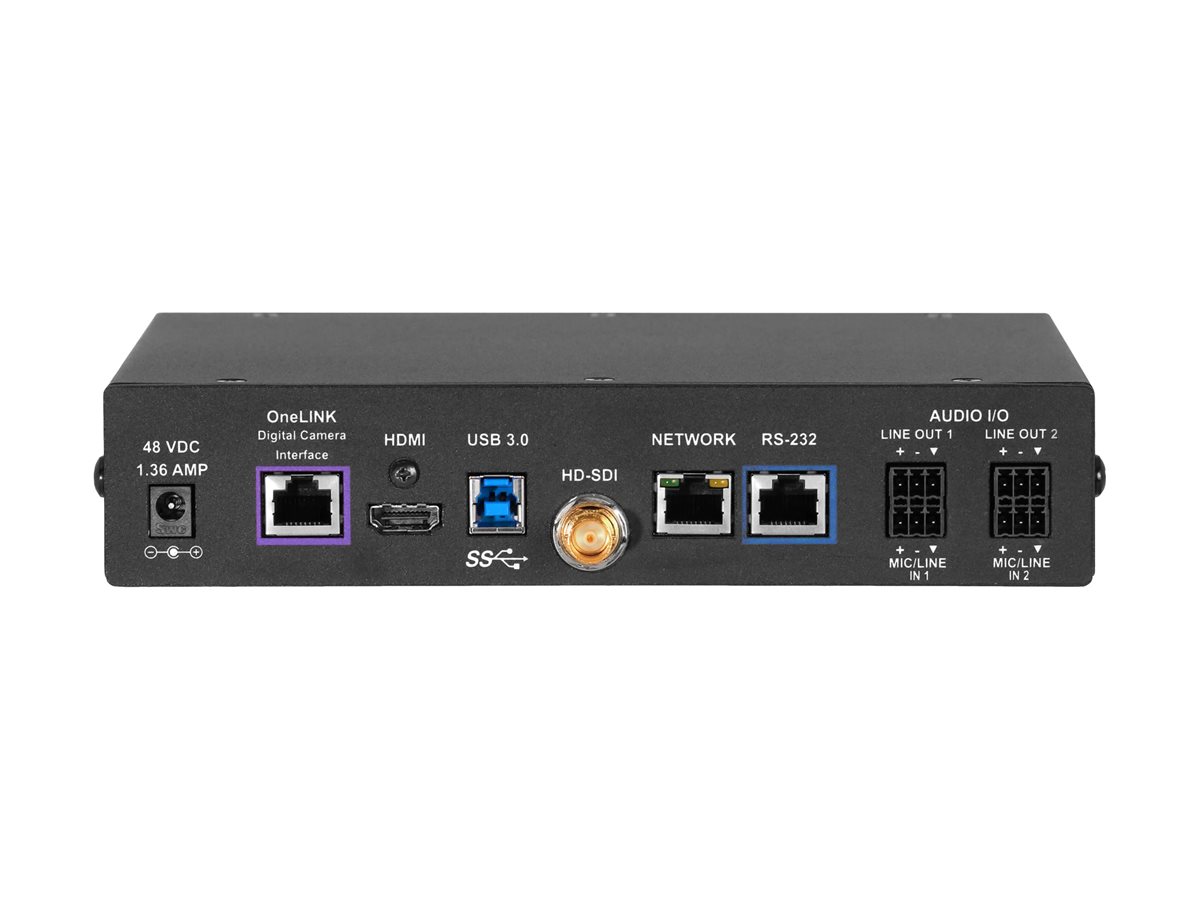

| Bundled with | Vaddio OneLINK HDMI |
| Dimensions (WxDxH) | 8 in x 5.5 in x 7.9 in |
| Weight | 6 lbs |
| Color | White |
| Connectivity Technology | Wired |
| Camera | Color |
| Optical Zoom | 20 x |
| Max Resolution | 3840 x 2160 |
| Video Modes | 2160/30p |
| Optical Sensor Type | Exmor R CMOS - 1/2.5" - 8.5 MP |
| Minimum Illumination | 1.6 lux F2.0 |
| Focal Length Control | Motorized zoom |
| Focal Length | 4.4 mm - 88.4 mm |
| Focus Adjustment | Automatic, manual (min distance 3.1 in) |
| Lens Iris | F/2.0-3.8 |
| Panning Range (degree) | -160 to +160 |
| Tilting Range (degree) | -30 to +90 |
| Interfaces | HDMI, HD-SDI, HDBaseT |
| Control Interface | RS-232 |
| Voltage | DC 12 V / LTPoE ++ |
| Features | Manual white balance, Backlight Compensation (BLC), 16 preset positions, auto white balance, noise reduction, Enhanced Wide Dynamic Range |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | 32 °F - 104 °F; 20 - 80% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 8 in |
| Depth | 5.5 in |
| Height | 7.9 in |
| Weight | 6 lbs |
| Localization | United States |
| Bundled with | Vaddio OneLINK HDMI |
| Expansion / Connectivity | |
| Ports | Serial RS-232 ¦ HDMI ¦ HDBase-T ¦ HD-SDI |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Wall mount kit, Vaddio IR Remote Commander, EZCamera RS-232 Control Adapter |
| TAA Compliant | Yes |
| Compliant Standards | FCC |
| Color | White |
| Power | |
| Power Requirements | DC 12 V / LTPoE ++ |
| Power Device | Power adapter - external |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 80% (non-condensing) |
| Camera | |
| Type | Color - pan / tilt / zoom |
| Digital Video Format | H.264 |
| Max Digital Video Resolution | 3840 x 2160 |
| Video Modes | 2160/30p |
| Digital Zoom | 40 |
| Minimum Illumination | 1.6 lux F2.0 |
| Features | Manual white balance, Backlight Compensation (BLC), 16 preset positions, auto white balance, noise reduction, Enhanced Wide Dynamic Range |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 20 x |
| Focal Length | 4.4 mm - 88.4 mm |
| Lens Iris | F/2.0-3.8 |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 3.1 in |
| Horizontal Field of View (degree) | 2.05 - 70.2 |
| Image Sensor | |
| Type | 8.5 MP Exmor R CMOS 1/2.5" |
| Interfaces | |
| Video | HDMI, HD-SDI |
| Network Interface | HDBaseT |
| Network Protocols | RTSP, RTMP |
| Control Interface | RS-232 |
| Panning | |
| Range (degree) | -160 to +160 |
| Speed (degree/sec) | Up to 120 |
| Tilting | |
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 120 |
