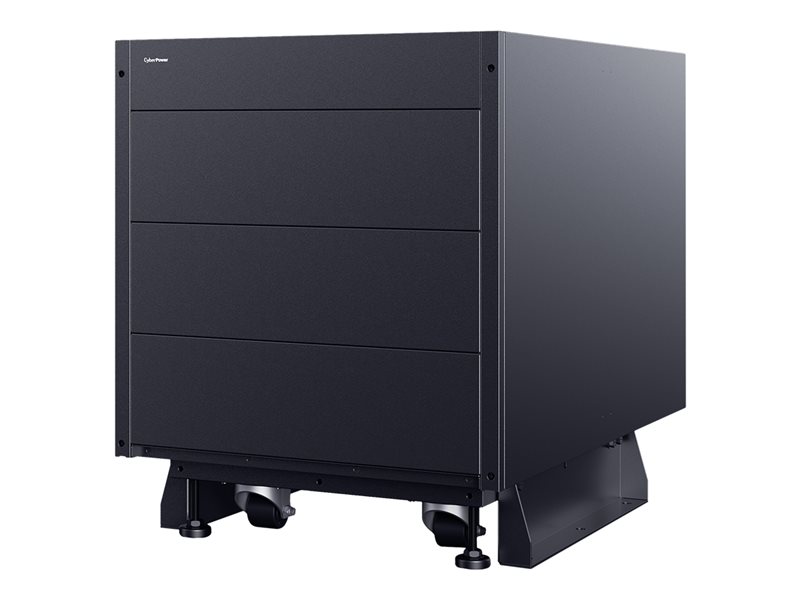

Battery enclosure (rack-mountable / external) - 3-phase - 11U - black
| Main Specifications | |
|---|---|
| Product Description | CyberPower BCT3L9N125 - battery enclosure |
| Device Type | Battery enclosure - rack-mountable / external |
| Rack Size | 11U |
| Weight | 134.7 lbs |
| Input Wiring | 3-phase |
| Output Voltage | AC 240 V |
| Batteries Qty | 6 (supported) |
| Color | Black |
| Dimensions (WxDxH) | 19.1 in x 30.5 in x 23.9 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Battery enclosure - rack-mountable / external |
| Height (Rack Units) | 11U |
| Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Features | Metal housing, hot-swappable batteries, Smart Battery Management (SMB) |
| Compliant Standards | RoHS, cTUVus, UL 1778, CAN/CSA C22.2 No. 107.3-14, FCC CFR47 Part 15 B Class A |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Battery | |
| Quantity | 6 (supported) |
| Features | Valve-regulated |
| Power Device | |
| Supported Battery Technology | Lead acid |
| Input Wiring | 3-phase |
| Output Voltage | AC 240 V |
| Dimensions & Weight | |
| Width | 19.1 in |
| Depth | 30.5 in |
| Height | 23.9 in |
| Weight | 134.7 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 24.9 in |
| Shipping Depth | 40 in |
| Shipping Height | 31 in |
| Shipping Weight | 223 lbs |
