Video/audio/infrared/USB/serial extender - HDBaseT 2.0 - up to 230 ft
| Main Specifications | |
|---|---|

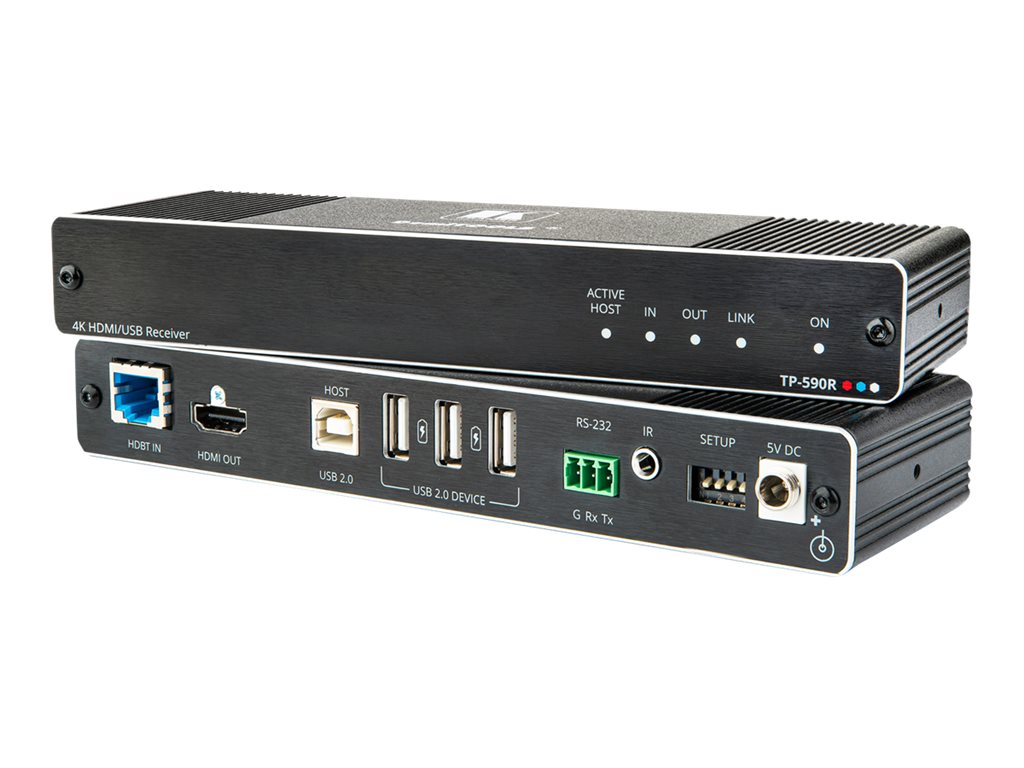

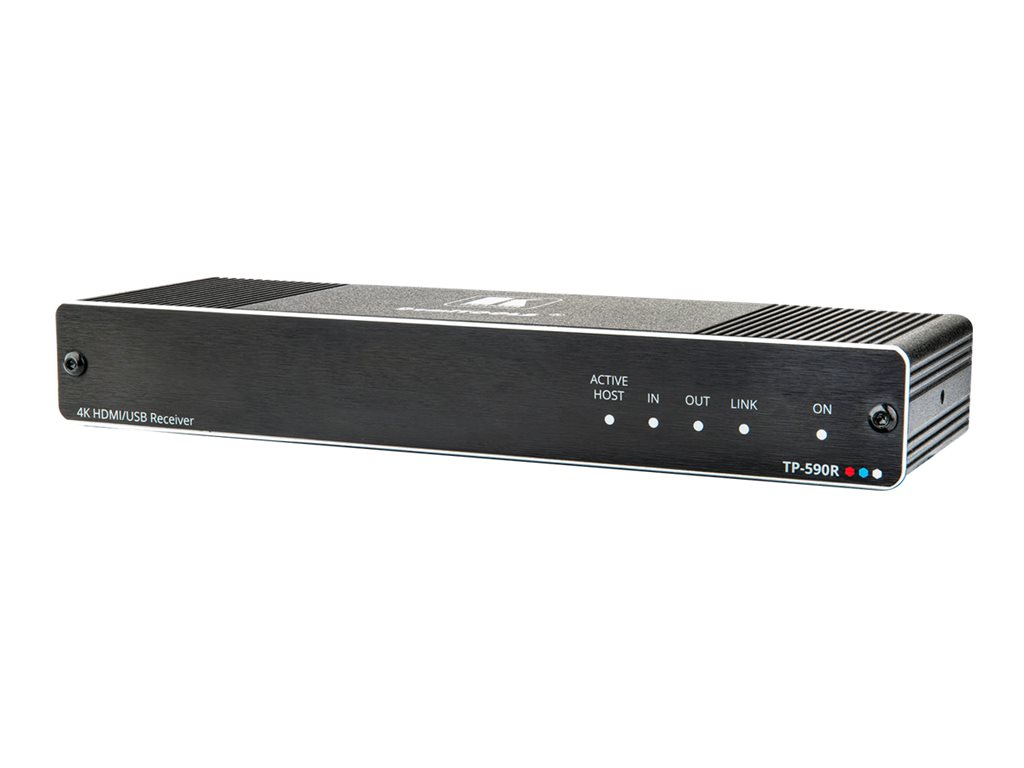

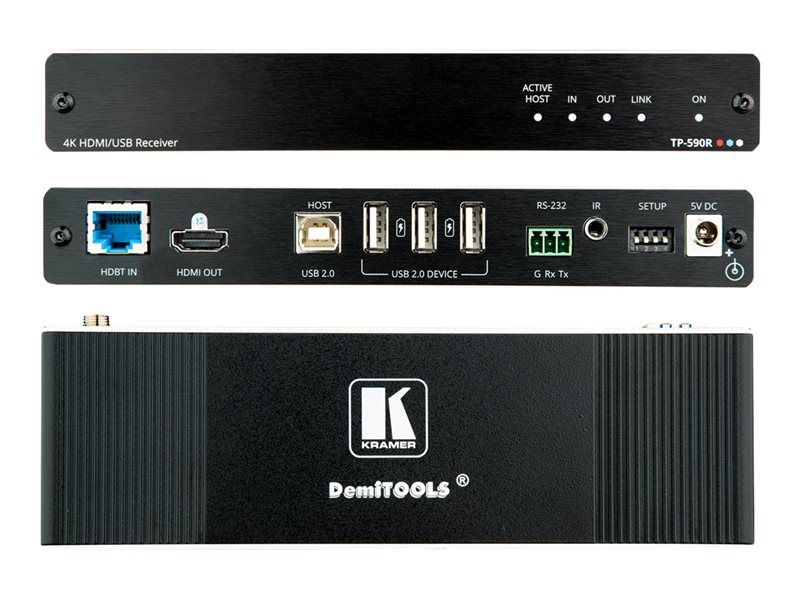

| Product Description | Kramer DemiTOOLS TP-590R - video/audio/infrared/USB/serial extender - HDBaseT 2.0 |
| Device Type | Video/audio/infrared/USB/serial extender |
| Form Factor | External |
| Data Link Protocol | HDBaseT 2.0 |
| Max Transfer Distance | 230 ft |
| Dimensions (WxDxH) | 7.5 in x 2.3 in x 1.1 in |
| Weight | 17.64 oz |
| Manufacturer Warranty | 7-year warranty |
| General | |
| Device Type | Video/audio/infrared/USB/serial extender |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (output) - Type A ¦ 1 x IrDA - mini jack female ¦ 1 x RS-232 - terminal block ¦ 1 x HDBaseT (input) - RJ-45 female ¦ 1 x USB 2.0 (host) - Type B ¦ 3 x USB 2.0 - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 7 years |
| Miscellaneous | |
| Included Accessories | Rubber feet, mounting bracket |
| Compliant Standards | RoHS, WEEE, HDCP 2.3 |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT 2.0 |
| Max Transfer Distance | 230 ft |
| Features | HDCP compliant, fanless, 3D support, 4K resolution support, Dolby TrueHD support, x.v.Color support, DTS-HD support, bi-directional IR, aluminum housing |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 7.5 in |
| Depth | 2.3 in |
| Height | 1.1 in |
| Weight | 17.64 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 13.6 in |
| Shipping Depth | 6.5 in |
| Shipping Height | 2 in |
| Shipping Weight | 2.2 lbs |
