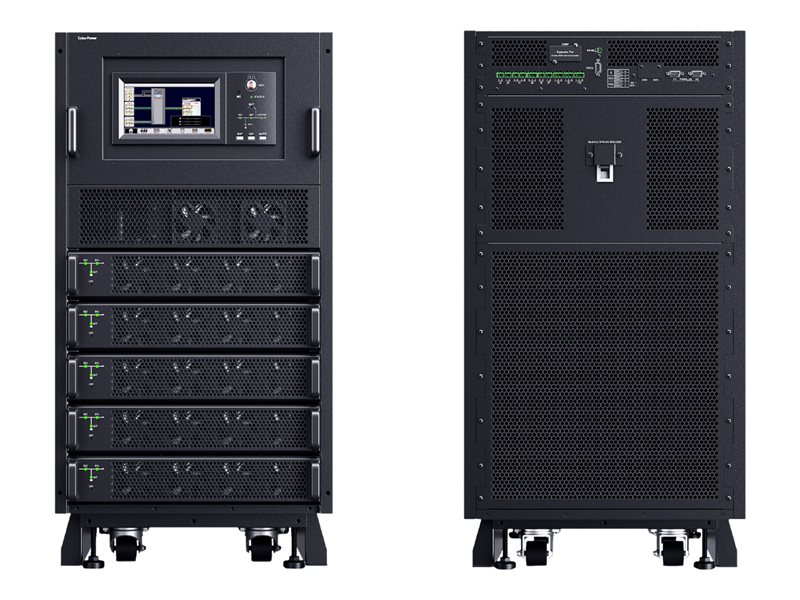

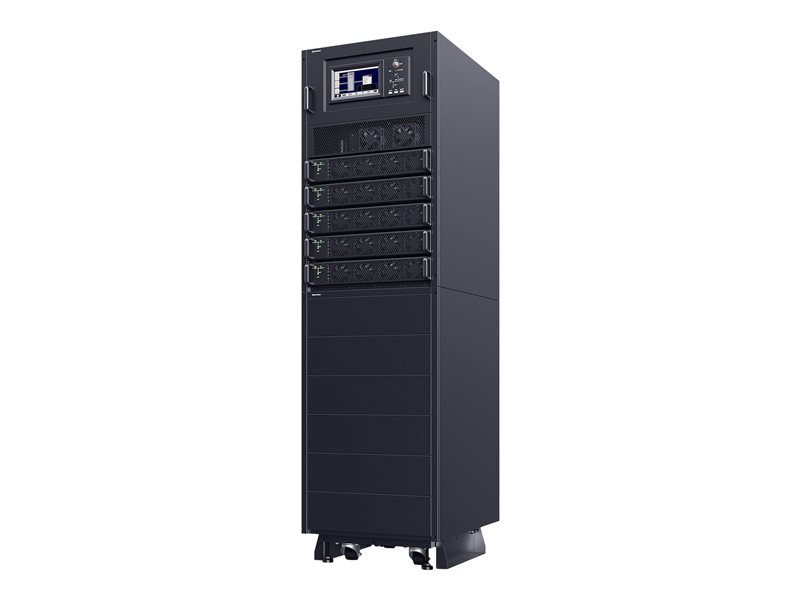

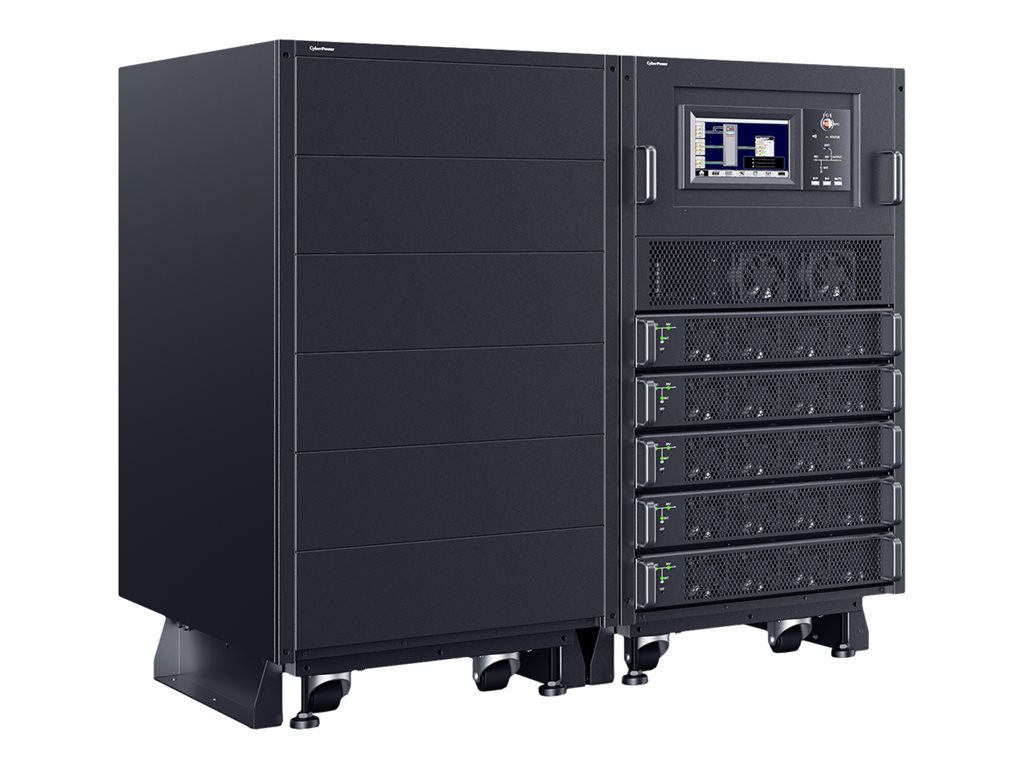

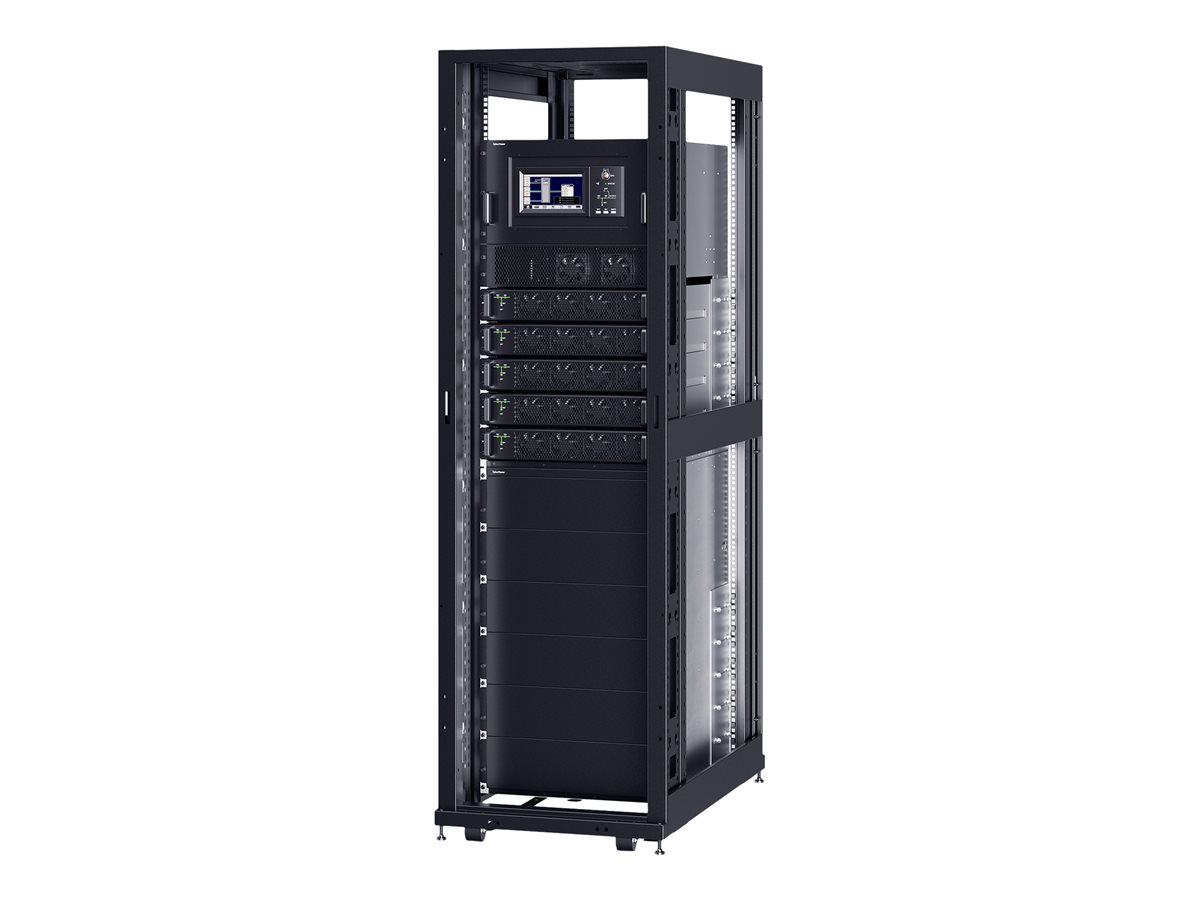

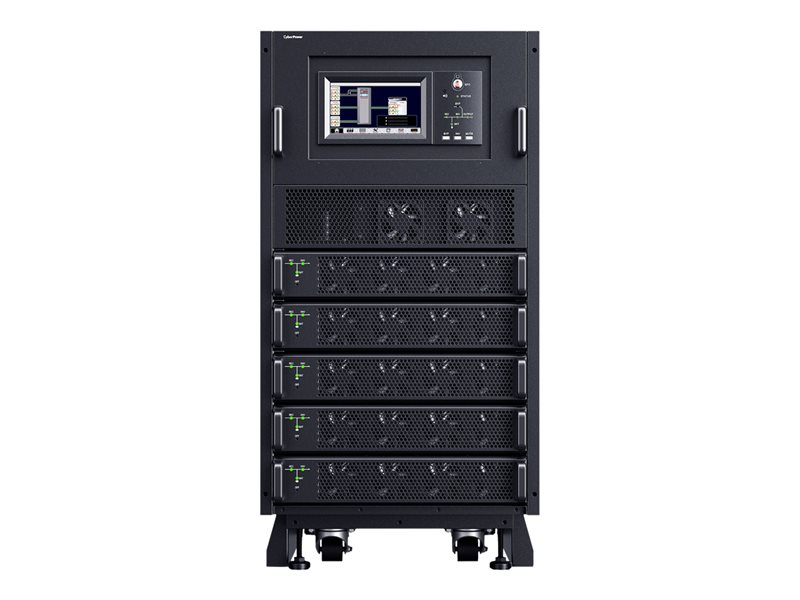

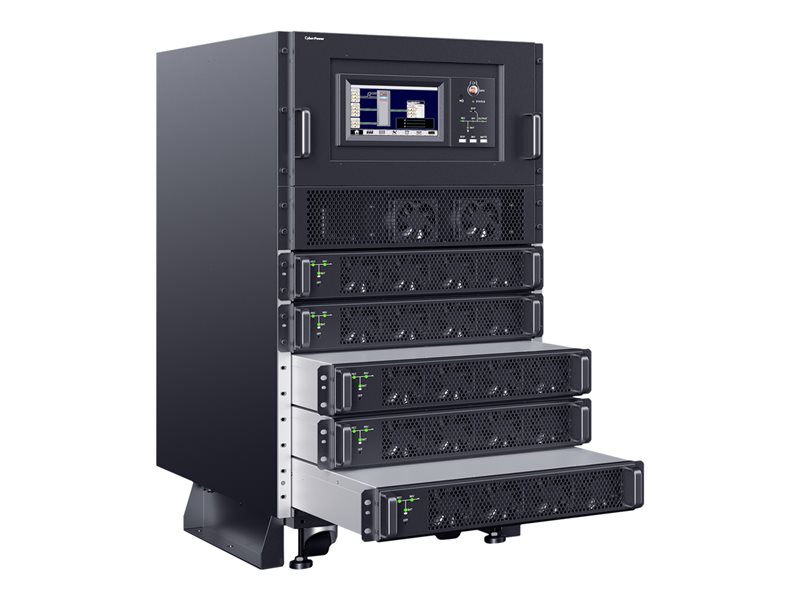

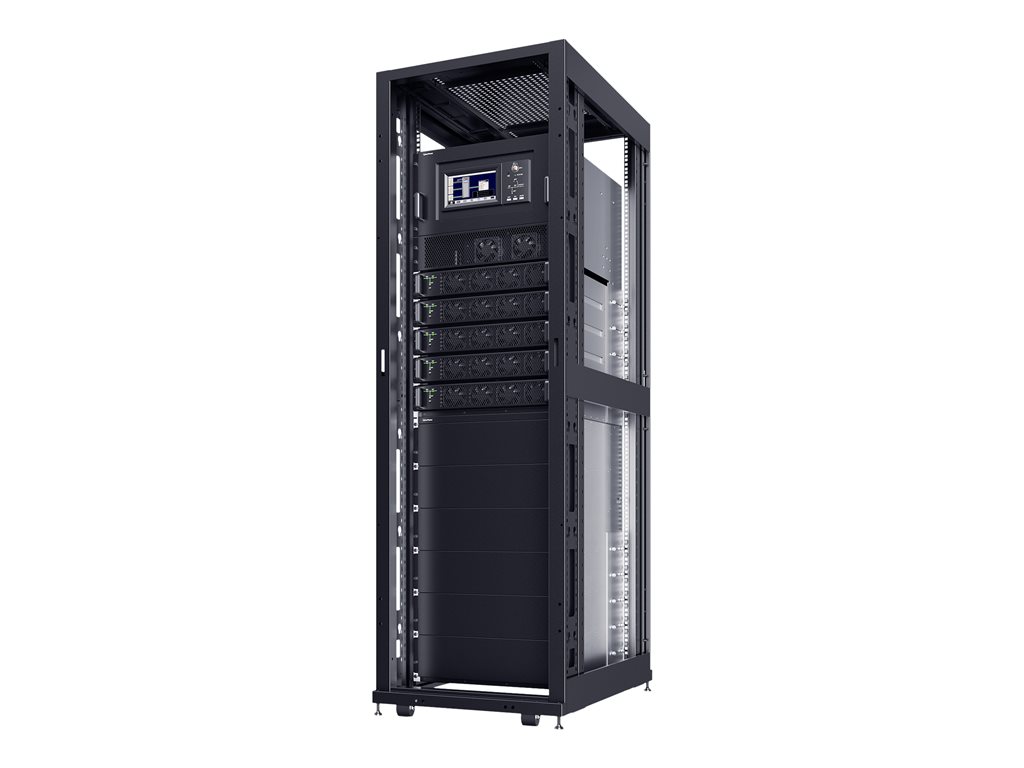

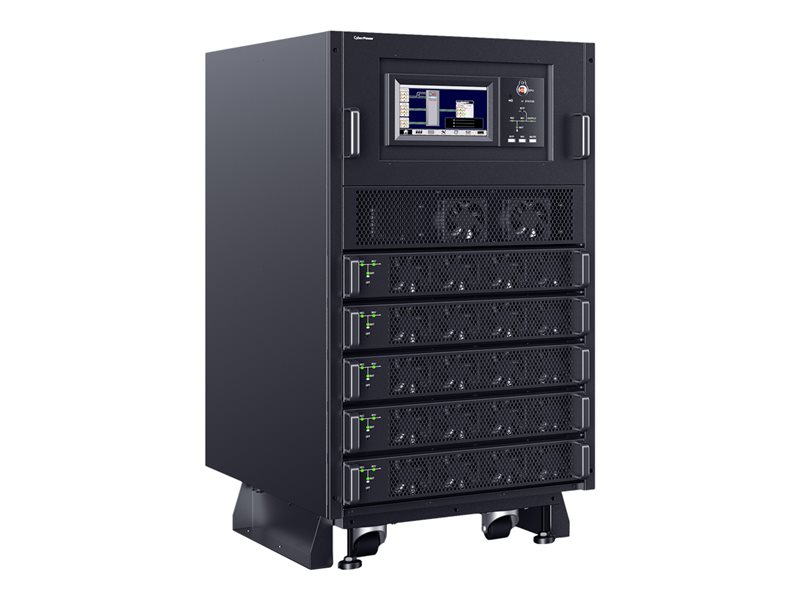

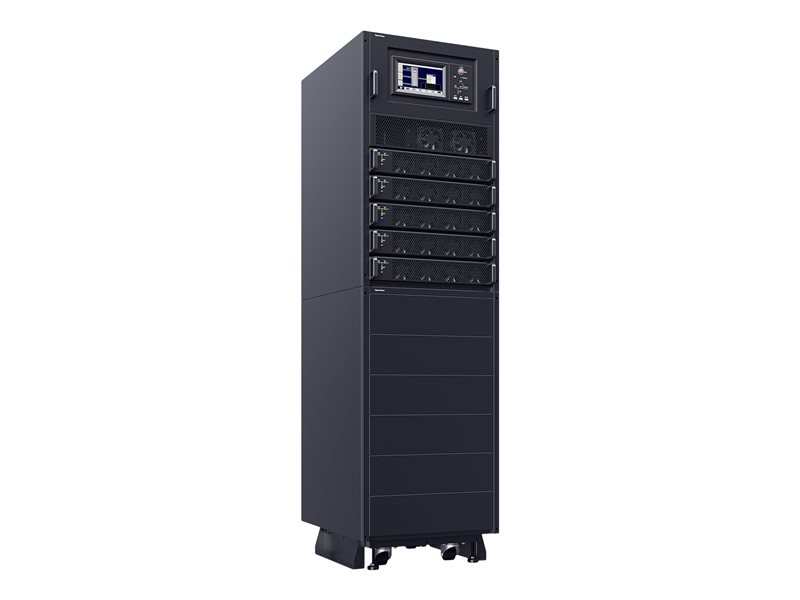

Power array cabinet (rack-mountable / external) - 3-phase - RS-232, Ethernet 10/100, RS-485 - 19U - black
| Main Specifications | |
|---|---|
| Product Description | CyberPower Smart App Online SM040KAMFA - power array cabinet |
| Device Type | Power array cabinet - rack-mountable / external |
| Rack Size | 19U |
| Weight | 177.69 lbs |
| Input Wiring | 3-phase |
| Power Redundancy | Optional |
| Input Connectors | 2 x hardwire 5-wire (3PH + N + G) |
| Output connectors | Hardwire 5-wire (3PH + N + G) |
| Networking | RS-232, Ethernet 10/100, RS-485 |
| Remote Management Protocol | Modbus, CLI, IPv4, IPv6, SNMP 1, SNMP 3, DHCP, HTTP, HTTPS, LDAP, NTP, RADIUS, SMTP, SSH, Telnet |
| Color | Black |
| Dimensions (WxDxH) | 19.1 in x 30.5 in x 37.1 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Power array cabinet - rack-mountable / external |
| Height (Rack Units) | 19U |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) ¦ 1 x management (RS-485) ¦ EPO (emergency power off) ¦ Dry contact ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x sensor - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | Serial cable - external |
| Rack Mounting Kit | Included |
| Features | Metal cabinet, double conversion, Battery Equalization Technology, Smart Battery Management (SMB), 7" touch screen LCD display, hot-swappable batteries, generator compatible, converter mode, audible alarm, internal bypass, overload protection, Automatic Voltage Regulation (AVR), LED indicators |
| Compliant Standards | IP20, RoHS, cTUVus, UL 1778, CAN/CSA C22.2 No. 107.3-14, FCC CFR47 Part 15 B Class A, IEC 62040-2 |
| Networking | |
| Remote Management Interface | RS-232, Ethernet 10/100, RS-485 |
| Remote Management Protocol | Modbus, CLI, IPv4, IPv6, SNMP 1, SNMP 3, DHCP, HTTP, HTTPS, LDAP, NTP, RADIUS, SMTP, SSH, Telnet |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Power Device | |
| UPS Technology | On-line |
| Supported Power Modules Qty | 5 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | N+1 (with optional power supply) |
| Input Wiring | 3-phase |
| Input Connectors | 2 x hardwire 5-wire (3PH + N + G) |
| Power Output Connectors Details | Hardwire 5-wire (3PH + N + G) |
| Power Factor (PF) | 0.99 |
| Dimensions & Weight | |
| Width | 19.1 in |
| Depth | 30.5 in |
| Height | 37.1 in |
| Weight | 177.69 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 24.9 in |
| Shipping Depth | 38.9 in |
| Shipping Height | 44.3 in |
| Shipping Weight | 268.9 lbs |
