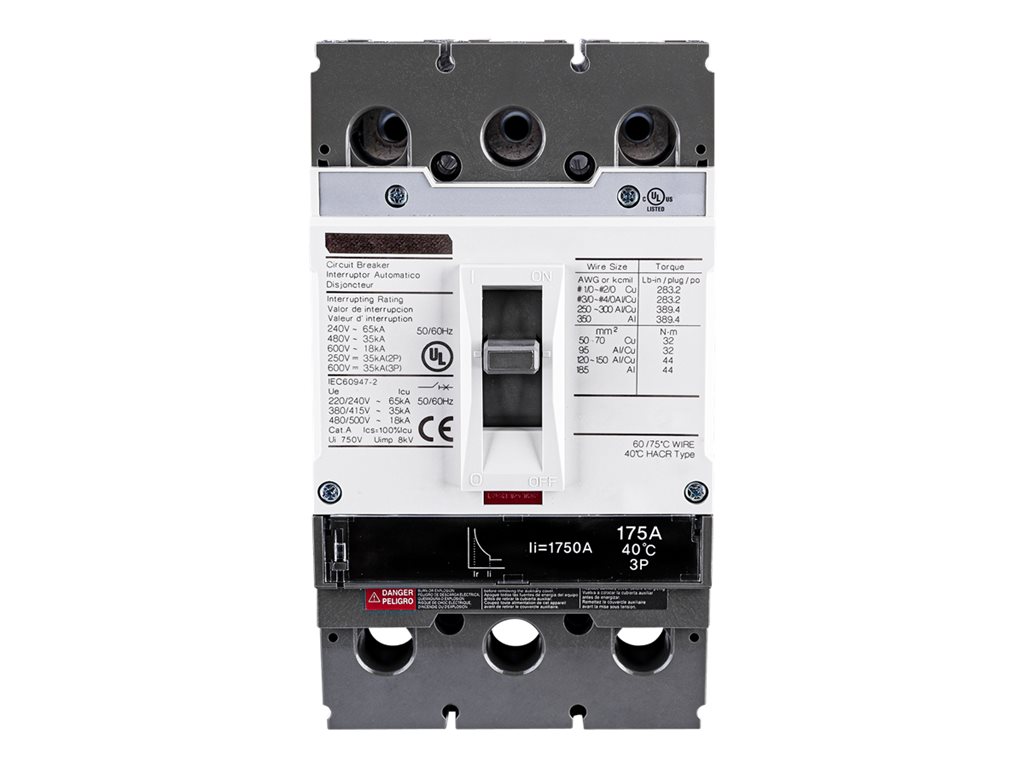

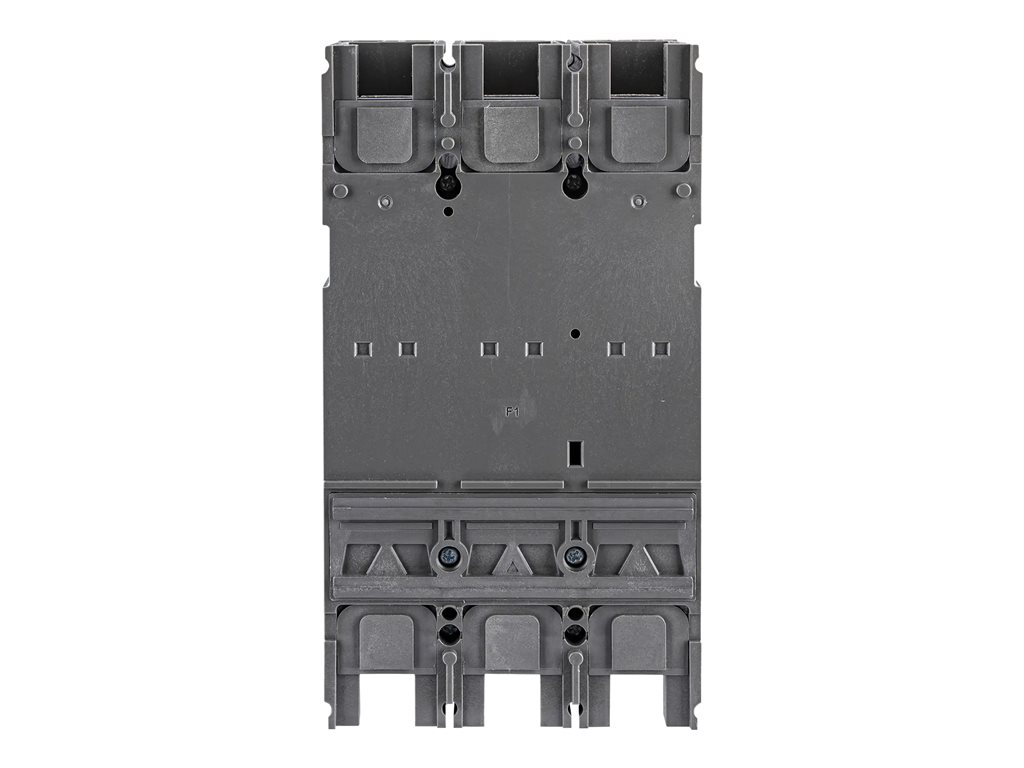

Automatic circuit breaker (plug-in module) - 3-phase - white/gray
| Main Specifications | |
|---|---|
| Product Description | CyberPower SMUCB175UAC - automatic circuit breaker |
| Device Type | Automatic circuit breaker - plug-in module |
| Weight | 4.41 lbs |
| Input Wiring | 3-phase |
| Color | White/gray |
| Dimensions (WxDxH) | 3 in x 3.4 in x 7.5 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Automatic circuit breaker - plug-in module |
| Color | White/gray |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Features | Overcurrent protection |
| Compliant Standards | RoHS, IEC 60947-2, UL 489, IEC 60947-1, EN 50581, CCC |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Power Device | |
| Input Wiring | 3-phase |
| Max Electric Current | 175 A |
| Dimensions & Weight | |
| Width | 3 in |
| Depth | 3.4 in |
| Height | 7.5 in |
| Weight | 4.41 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 4.5 in |
| Shipping Depth | 7.9 in |
| Shipping Height | 5 in |
| Shipping Weight | 4.41 lbs |
