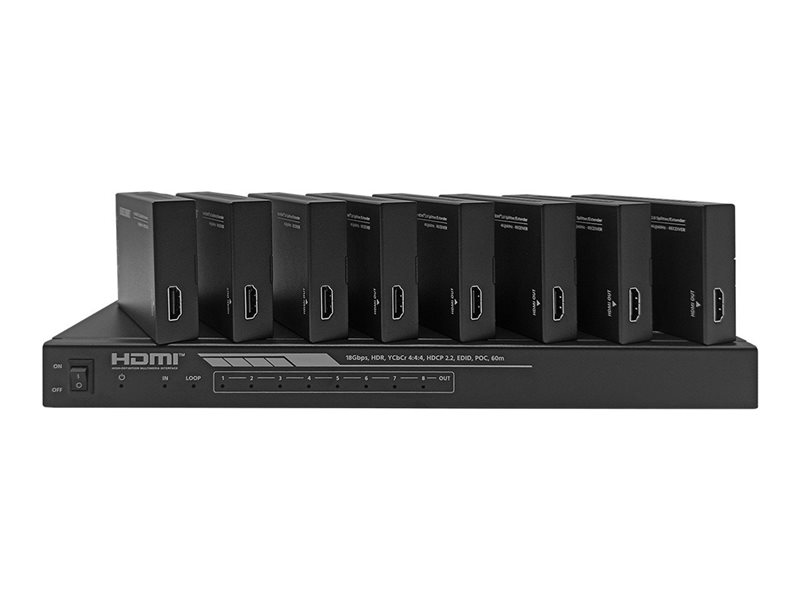

Complete Solution Kit - video/audio/infrared extender - over CAT 6/6a/7 - 8 ports - up to 197 ft
| Main Specifications | |
|---|---|
| Product Description | Monoprice Blackbird - Complete Solution Kit - video/audio/infrared extender |
| Device Type | Video/audio/infrared extender |
| Ports Qty | 8 |
| Form Factor | External |
| Data Transfer Rate | 18 Gbps |
| Transmission Medium | CAT 6/6a/7 |
| Max Transfer Distance | 197 ft |
| Power Over Ethernet (PoE) | PoC |
| Power | AC 100-240 V |
| General | |
| Device Type | Video/audio/infrared extender |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI input (transmitter) - 19 pin HDMI Type A ¦ 1 x HDMI output (transmitter) - 19 pin HDMI Type A ¦ 8 x video (transmitter) - RJ-21 ¦ 1 x coaxial (transmitter) ¦ 1 x audio line-out (transmitter) - mini jack ¦ 1 x video (receiver input) - RJ-45 ¦ 1 x HDMI (receiver output) - 19 pin HDMI Type A |
| Networking | |
| Ports Qty | 8 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 18 Gbps |
| Max Resolution | 4K @ 60 Hz |
| Max Transfer Distance | 197 ft |
| Features | HDR 4K60 4:4:4 compatible, YCbCr 4:4:4, 7.1 channel audio support, HDMI loop out, HDR10 support, HDR10+ support, Dolby Vision HDR support, Hybrid Log-Gamma (HLG) support, IR pass-through, EDID Management, 8-bit Deep Color support, 10-bit Deep Color support, 12-bit Deep Color support, Dolby Digital Plus support, Dolby TrueHD support, DTS Digital Surround 5.1 support, DTS ES support, DTS HRA support, DTS support, DTS:X support, DTS-HD Master Audio support, LPCM 2.0 support, LPCM 5.1 support, LPCM 7.1 support, YCbCr 4:2:2, YUV 4:2:0 |
| Compliant Standards | HDCP 2.2 |
| Power | |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 25.44 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Transmitter: 11.8 in x 3.9 in x 1.1 in / 29 oz ¦ Receiver: 3.5 in x 2.4 in x 0.7 in / 5.5 oz |
