4K, 4:4:4, PoE, 328 ft. (100 m) - Video/audio/USB/network extender - receiver - 1GbE, HDMI - over CAT 5/5e/6 - up to 328 ft
| Main Specifications | |
|---|---|

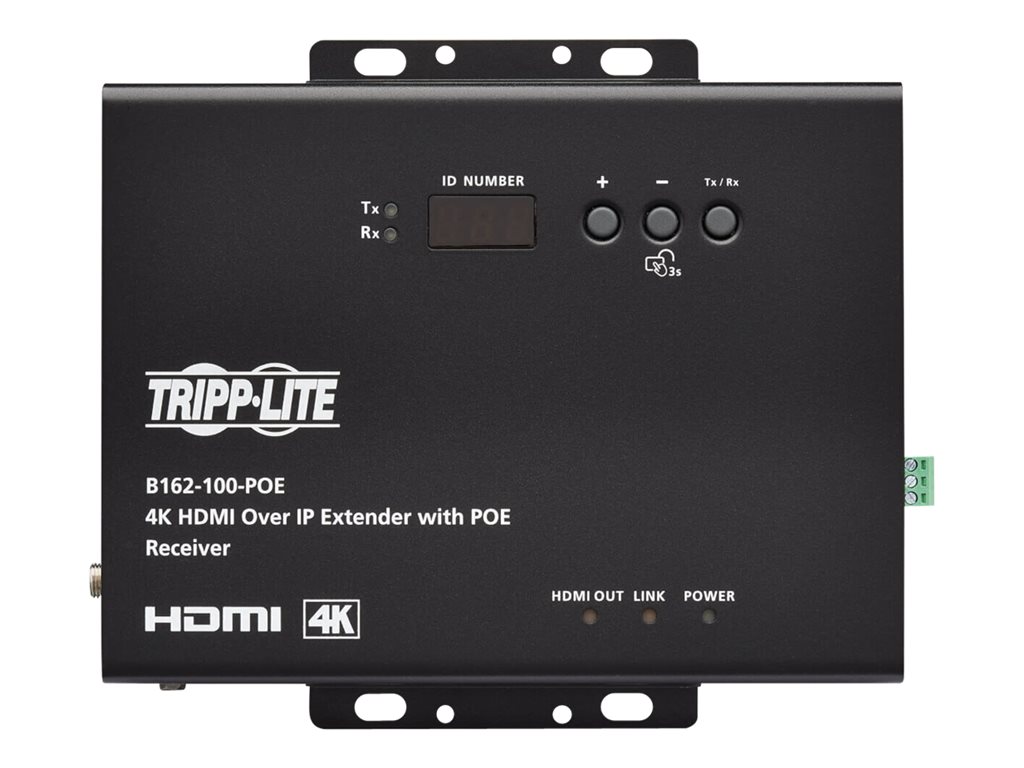

| Product Description | Eaton Tripp Lite Series HDMI over IP Extender Receiver - 4K, 4:4:4, PoE, 328 ft. (100 m) - video/audio/USB/network extender - HDMI, 10Mb LAN, 100Mb LAN, 1GbE |
| Device Type | Video/audio/USB/network extender (receiver) |
| Form Factor | Rack-mountable |
| Data Link Protocol | HDMI, 10Mb LAN, 100Mb LAN, 1GbE |
| Transmission Medium | CAT 5/5e/6 |
| Max Transfer Distance | 328 ft |
| Power Over Ethernet (PoE) | PoE |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 6.7 in x 5 in x 1.1 in |
| Weight | 23.63 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Video/audio/USB/network extender (receiver) |
| Form Factor | Rack-mountable |
| Expansion / Connectivity | |

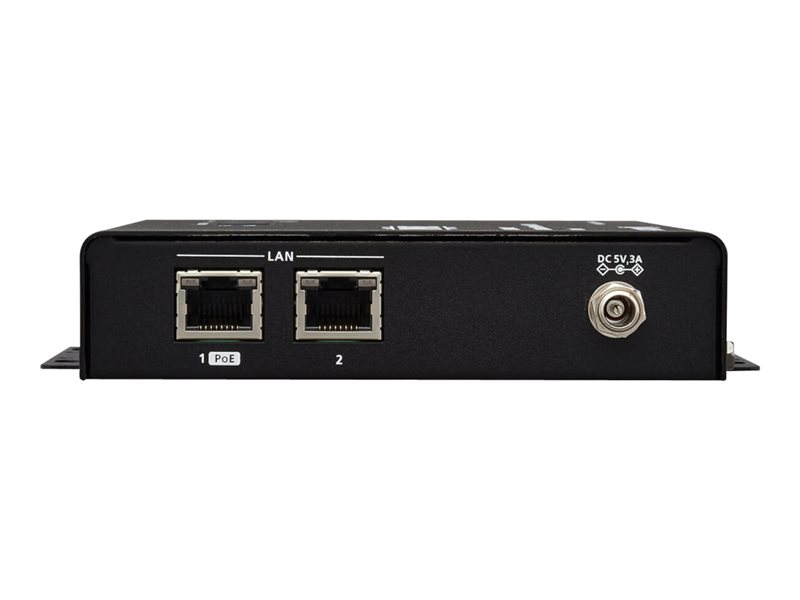

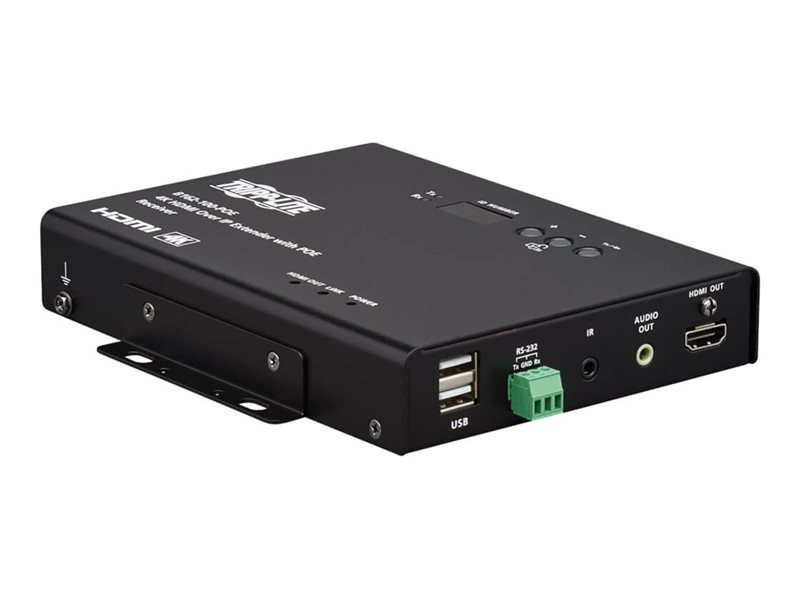

| Interfaces | 1 x HDMI - 19 pin HDMI Type A female ¦ 2 x Ethernet 1000 - RJ-45 female ¦ 2 x RS-232/IR - mini jack female ¦ 2 x USB - Type A female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | RS-232 terminal block, 4 foot pads |
| Mounting Kit | Included |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC, PSE Mark, RoHS, UL, WEEE, HDCP 1.4, REACH, NOM |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI, 10Mb LAN, 100Mb LAN, 1GbE |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz |
| Max Transfer Distance | 328 ft |
| Status Indicators | Power, connection status |
| Features | 36-bit Deep Color support, metal housing, EDID Management |
| Power | |
| Power Over Ethernet (PoE) | PoE |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 4.36 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Dimensions & Weight | |
| Width | 6.7 in |
| Depth | 5 in |
| Height | 1.1 in |
| Weight | 23.63 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 2.4 in |
| Shipping Depth | 11.1 in |
| Shipping Height | 6.8 in |
| Shipping Weight | 31.74 oz |
