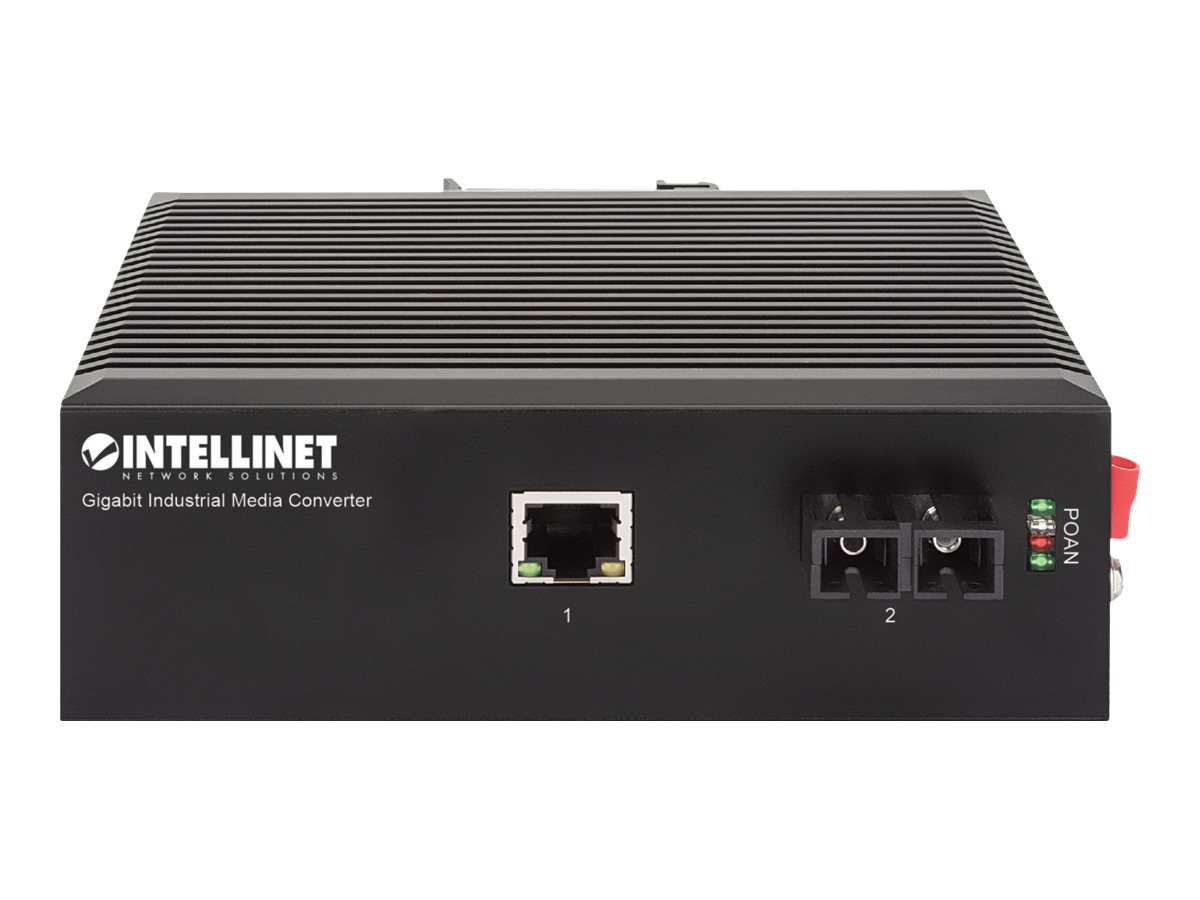

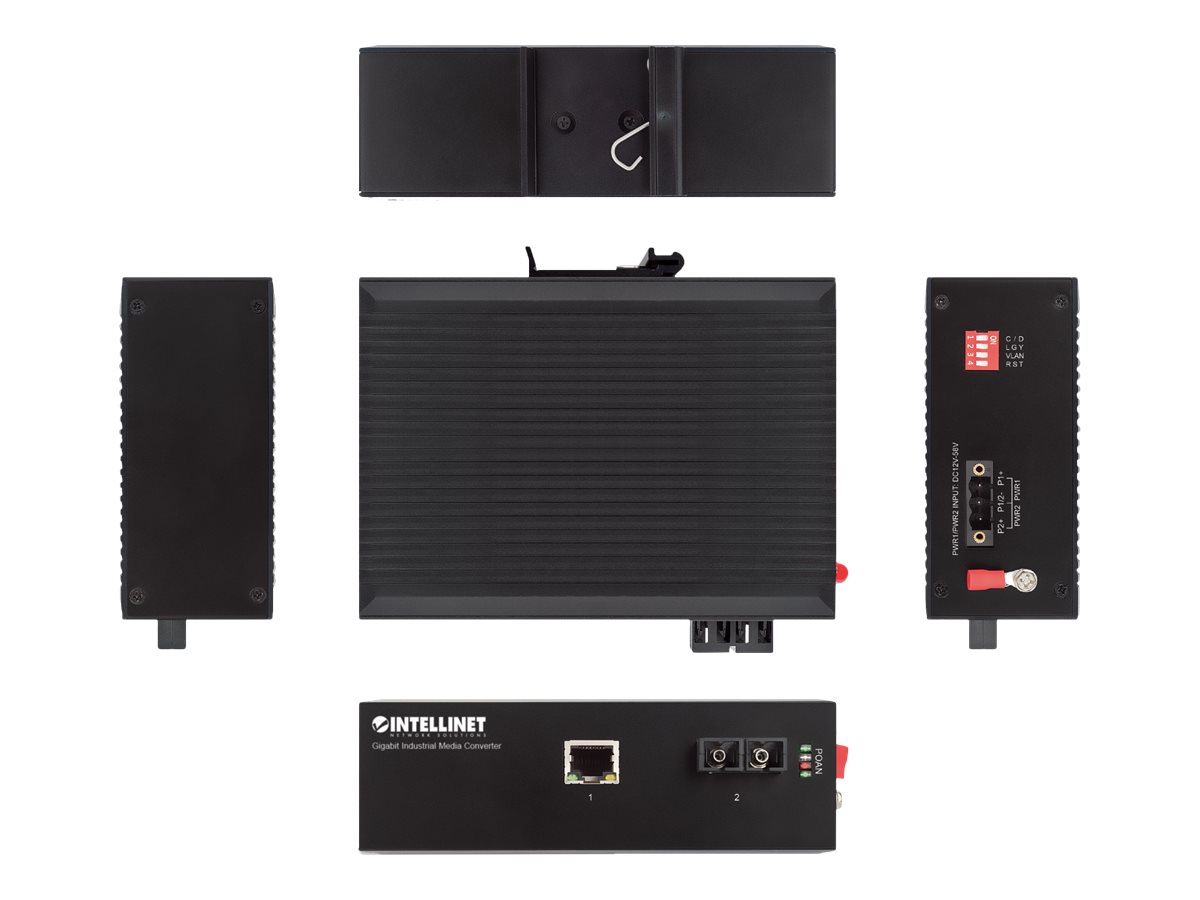

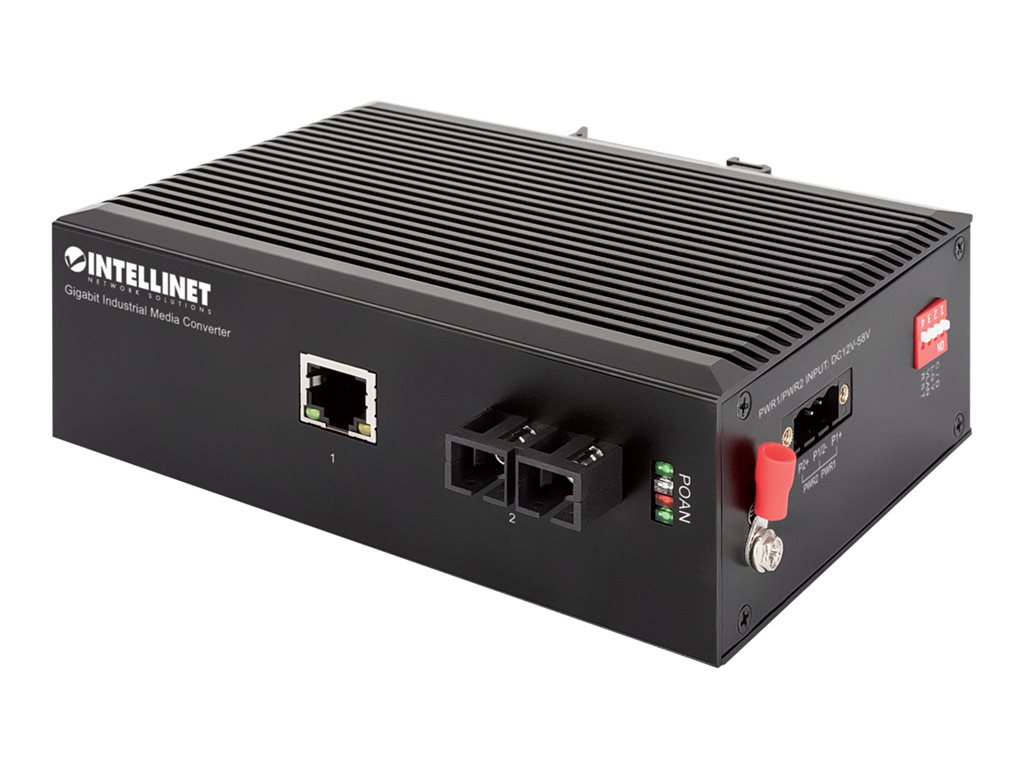

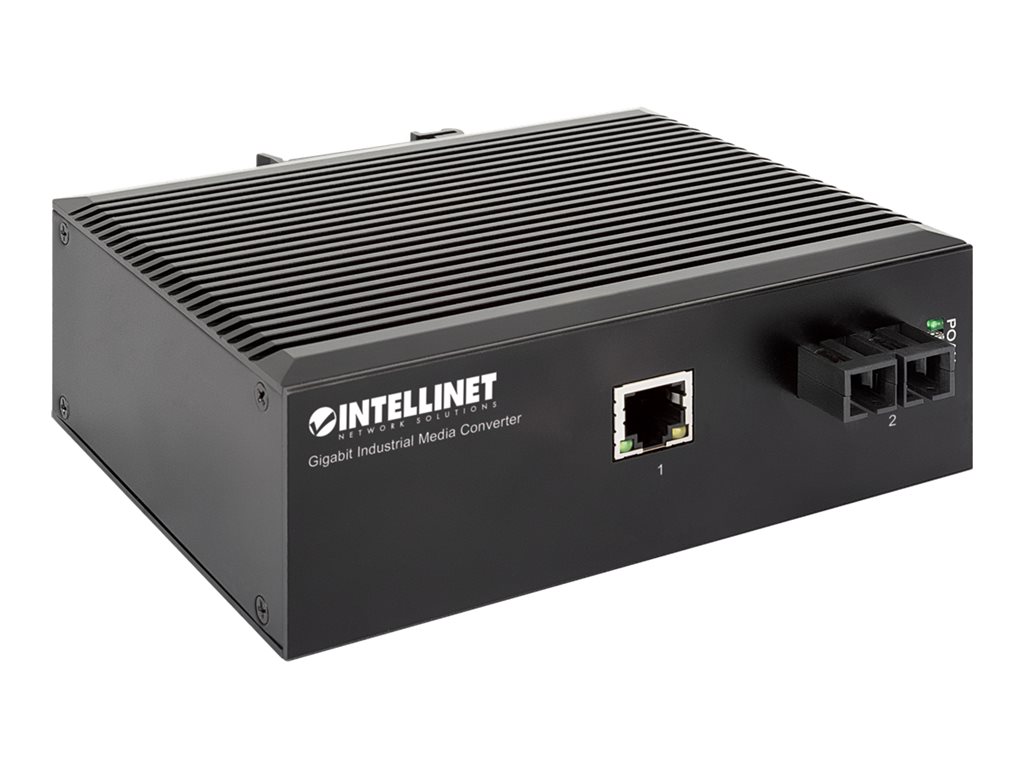

Fiber media converter - 1GbE - 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T - RJ-45 / SC single-mode - up to 12.4 miles - 1310 nm
| Main Specifications | |
|---|---|
| Product Description | Intellinet - fiber media converter - 10Mb LAN, 100Mb LAN, 1GbE |
| Device Type | Fiber media converter - RJ-45 / SC single-mode |

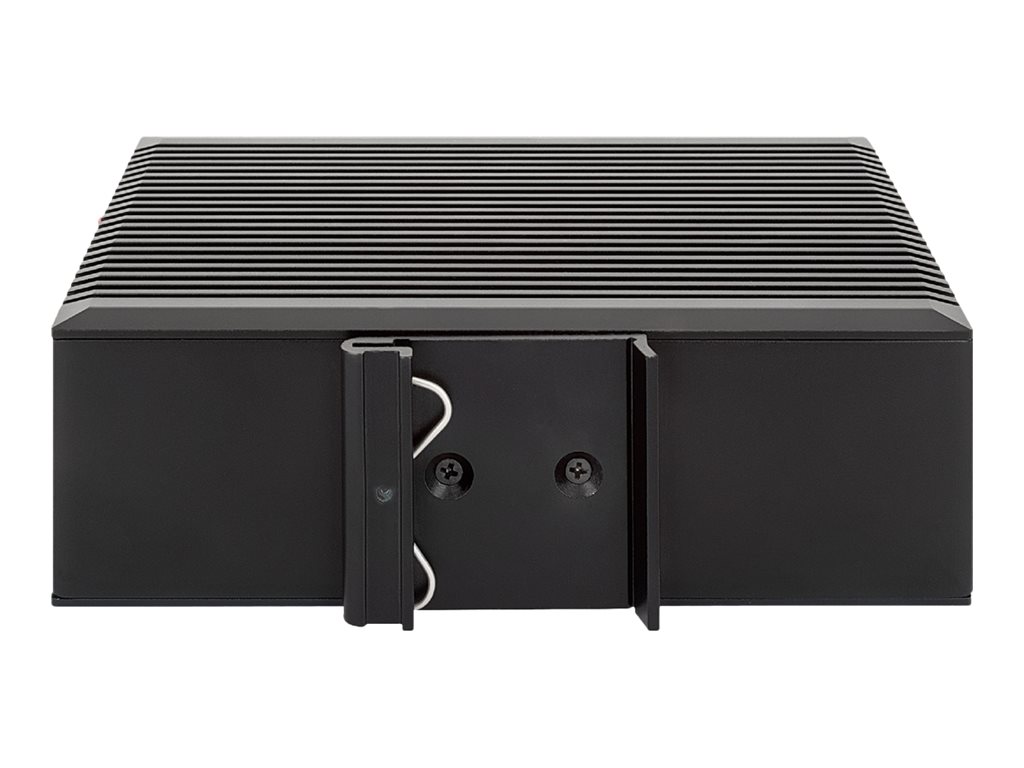

| Form Factor | DIN rail mountable |
| Cabling Type | 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Max Transfer Distance | 12.4 miles |
| Power | DC 12 - 58 V |
| Dimensions (WxDxH) | 5.6 in x 4.1 in x 1.9 in |
| Weight | 21.16 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | DIN rail mountable |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-SX - SC single-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, RoHS, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6 |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 nm |
| MAC Address Table Size | 8K entries |
| Max Transfer Distance | 12.4 miles |
| Status Indicators | Port status, power, alarm |
| Features | Half duplex mode, full duplex mode, fanless, metal housing, 6KV Surge protection, 10 KB Jumbo Frame |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| Power | |
| Voltage Required | DC 12 - 58 V |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 5.6 in |
| Depth | 4.1 in |
| Height | 1.9 in |
| Weight | 21.16 oz |
