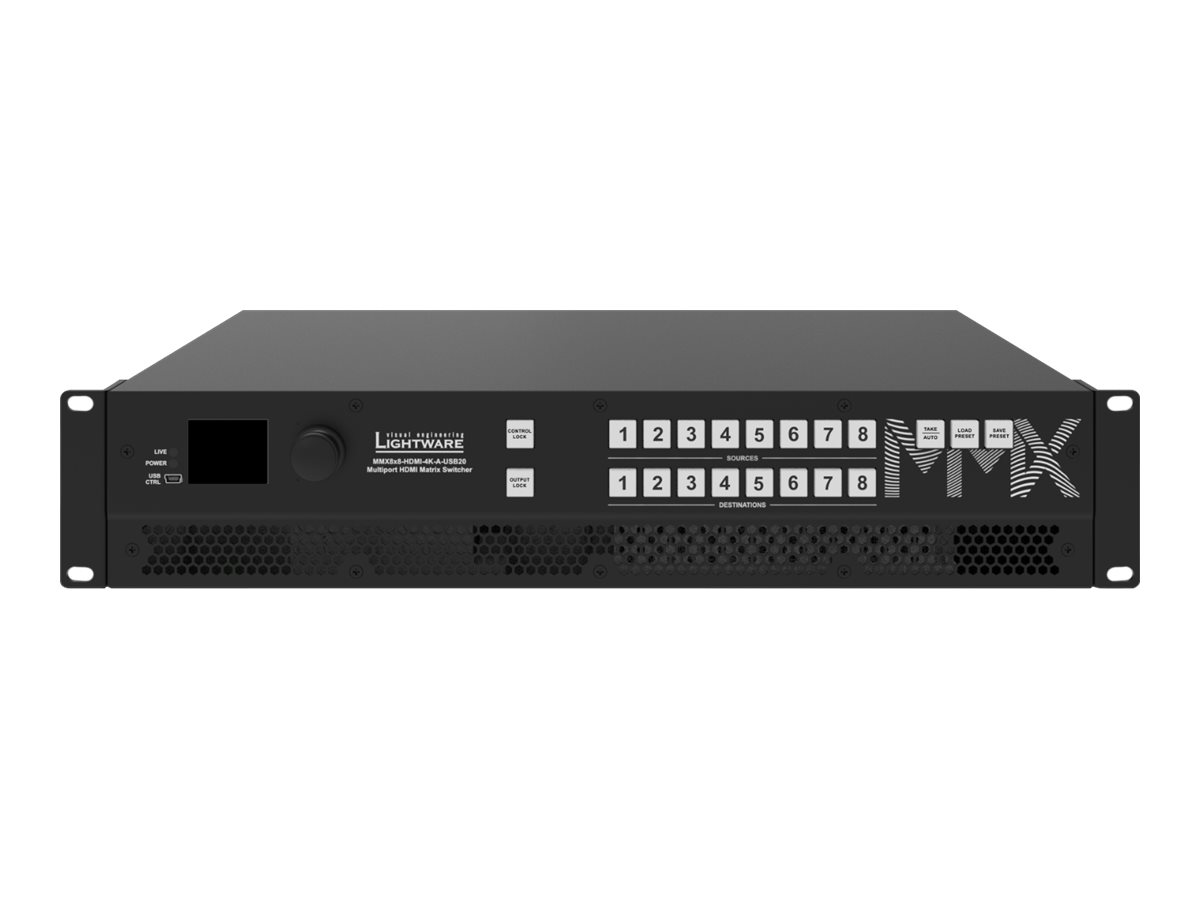

Video/audio/USB switch - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Lightware MMX8x8-HDMI-4K-A-USB20 - video/audio/USB switch - rack-mountable |
| Device Type | Video/audio/USB switch |
| Enclosure Type | Rack-mountable |
| Subtype | HDMI / USB |
| Features | 4K resolution support, Advanced EDID Management, audio embedding/de-embedding, event management |
| Power | AC 100-240 V (50/60 Hz) |
| General | |
| Device Type | Video/audio/USB switch |
| Enclosure Type | Rack-mountable |
| Subtype | HDMI / USB |
| Features | 4K resolution support, Advanced EDID Management, audio embedding/de-embedding, event management |
| Expansion / Connectivity | |

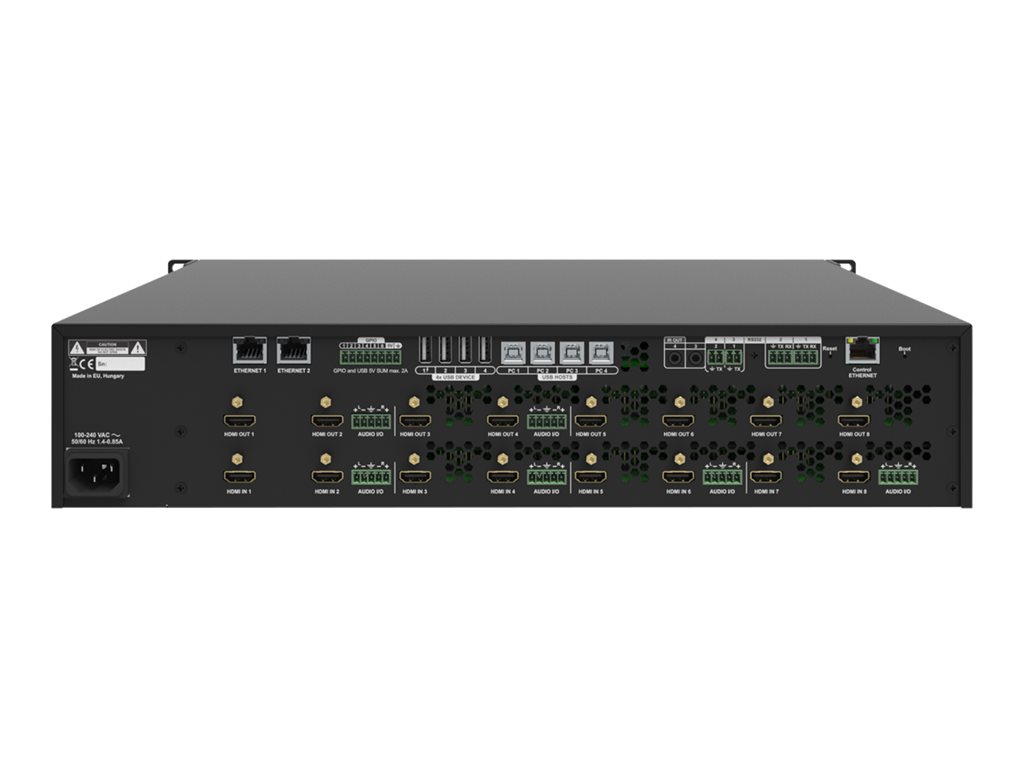

| Interfaces | 8 x HDMI input ¦ 8 x HDMI output ¦ 4 x audio input 5 pin Phoenix ¦ 2 x audio output 5 pin Phoenix ¦ 3 x LAN RJ-45 ¦ 1 x IrDA mini-jack ¦ 1 x IrDA output mini-jack ¦ 2 x serial (RS-232) ¦ 1 x USB mini-USB ¦ 4 x USB 2.0 Type A ¦ 4 x USB 2.0 Type B ¦ 1 x GPIO 8 pin terminal block |
| Miscellaneous | |
| Included Accessories | 4 x IR transmitters, 2 x 3-pin Phoenix connectors, 6 x 5-pin Phoenix connectors, 8-pin Phoenix connector |
| Cables Included | 1 x network cable - 10 ft |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
