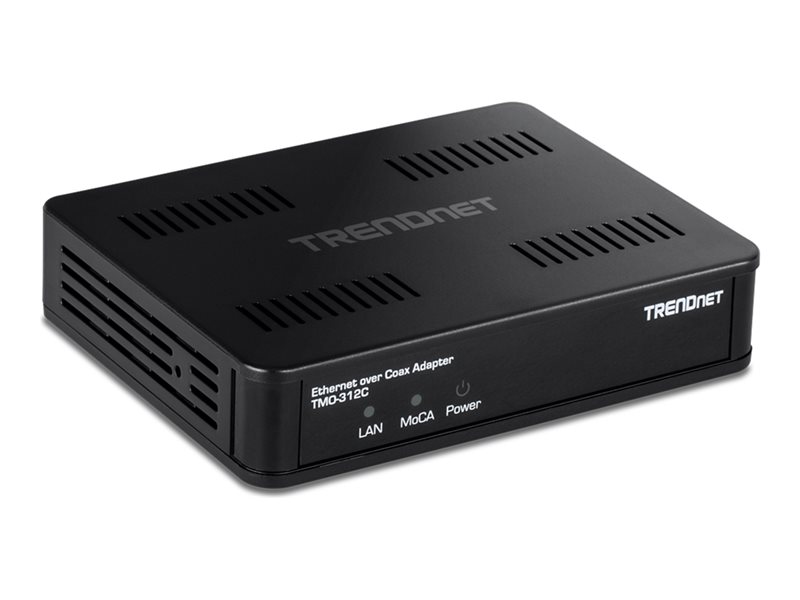

Media converter - 1GbE, MoCA 2.5 - 10Base-T, 100Base-TX, 1000Base-T - F connector / RJ-45 - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TMO-312C - media converter - 10Mb LAN, 100Mb LAN, 1GbE, MoCA 2.5 - TAA Compliant |
| Device Type | Media converter - F connector / RJ-45 |
| Form Factor | External |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, MoCA 2.5 |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 4.4 in x 3.5 in x 1 in |
| Weight | 4.09 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Media converter |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x coaxial (input) - F connector female ¦ 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, MoCA 2.5 |
| Status Indicators | Power, LAN, MoCA |
| Features | Reset button |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, MoCA 1.0, MoCA 1.1, MoCA 2.0, MoCA 2.5 |
| Power | |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 12 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 85% (non-condensing) |
| Dimensions & Weight | |
| Width | 4.4 in |
| Depth | 3.5 in |
| Height | 1 in |
| Weight | 4.09 oz |
