Remote control device - 2 licenses - 1GbE, RS-232, RS-422, RS-485 - 1U
| Main Specifications | |
|---|---|
| Product Description | ATEN VanCryst Control System VK1200 - remote control device |
| Device Type | Remote control device |
| License Qty | 2 licenses |
| Form Factor | External - 1U |
| RAM | 1 GB |
| Flash Memory | 8 GB |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, RS-422, RS-485 |
| Included Accessories | Foot pad set |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 6.5 in x 7.9 in x 1.7 in |
| Weight | 2.71 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Remote control device |
| Height (Rack Units) | 1U |

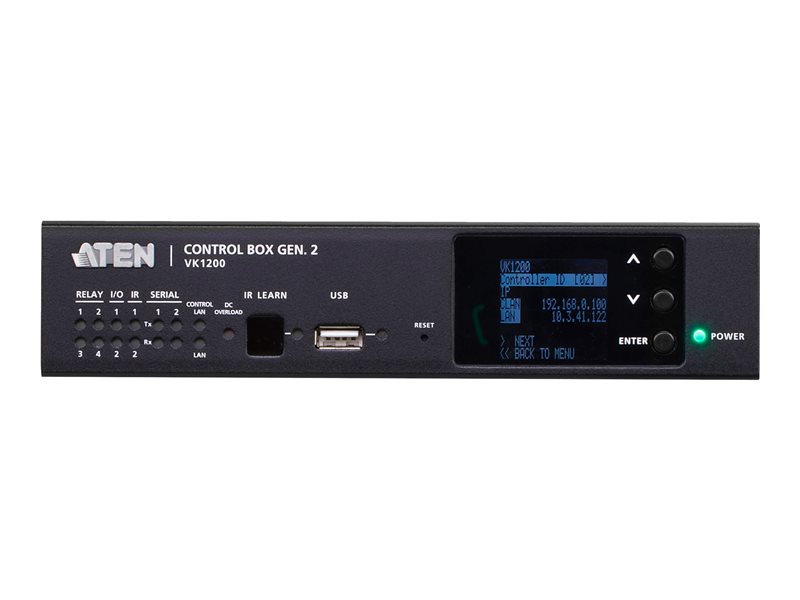

| Built-in Devices | 1.6-inch LCD |
| Width | 6.5 in |
| Depth | 7.9 in |
| Height | 1.7 in |
| Weight | 2.71 lbs |
| Expansion / Connectivity | |

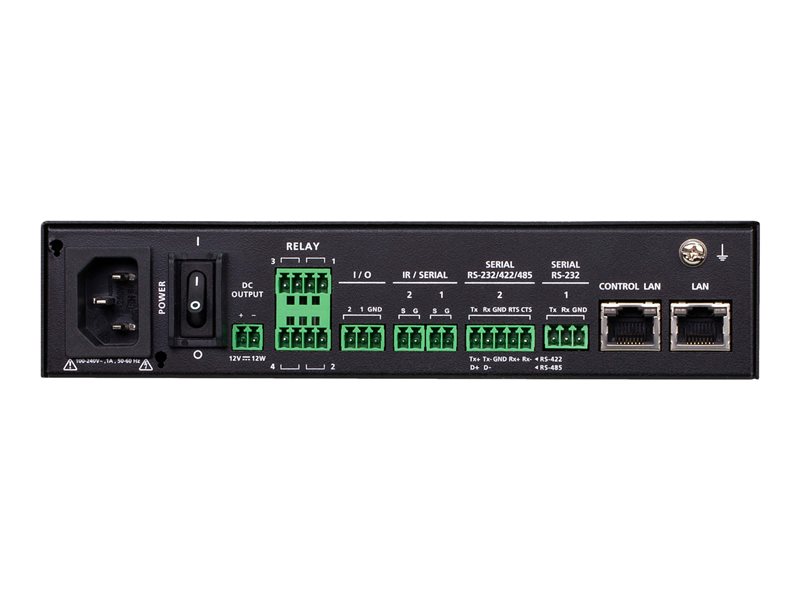

| Interfaces | 1 x RS-232/422/485 - terminal block ¦ 2 x RS-232 - terminal block ¦ 2 x digital input/output - terminal block ¦ 4 x relay - terminal block ¦ 1 x USB - Type A ¦ 2 x 1000Base-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Foot pad set |
| Compliant Standards | RoHS |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, RS-422, RS-485 |
| Network / Transport Protocol | TCP/IP, ICMP/IP, ARP, DHCP |
| Remote Management Protocol | Telnet, HTTP, HTTPS, SSH |
| Status Indicators | Power, USB, serial, infrared, relay |
| Features | DHCP support, manageable, reset button, ONVIF support, metal housing, PJLink compatible, IR learning, bi-directional communication |
| Authentication Method | Secure Shell (SSH) |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 4.7 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Processor / Memory / Storage | |
| RAM | 1 GB |
| Flash Memory | 8 GB |
