Wireless cellular modem - 4G LTE Advanced - USB - 300 Mbps
| Main Specifications | |
|---|---|

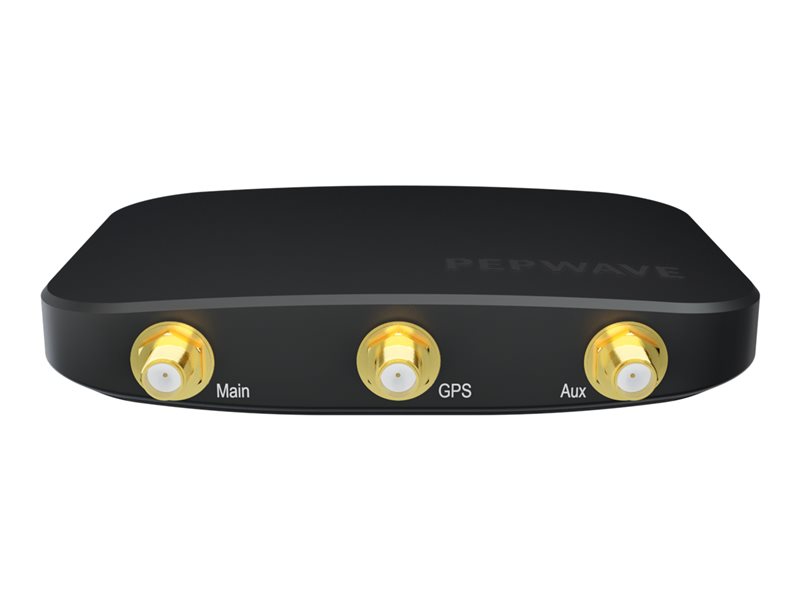

| Product Description | Pepwave MAX - wireless cellular modem - 4G LTE Advanced |
| Device Type | Wireless cellular modem - USB |
| Form Factor | External |
| Localization | EMEA, Americas |
| Max Transfer Rate | 300 Mbps |
| Cellular Band | W-CDMA B1/B2/B3/B4/B5/B8 / DC-HSPA+ B1/B2/B3/B4/B5/B8/B1/B2/B3/B4/B5/B8 / LTE B1/B12/B13/B2/B20/B25/B26/B29/B3/B30/B4/B41/B5/B7/B8 |
| Power | 5 V |
| Dimensions (WxDxH) | 3.9 in x 2.8 in x 0.6 in |
| Weight | 4.23 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Wireless cellular modem |
| Form Factor | External |
| Localization | EMEA, Americas |
| Expansion / Connectivity | |
| Interfaces | 1 x USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| SIM Card Supported | 2 |
| Cables Included | 1 x USB-C cable |
| Included Accessories | 4 LTE Antennas (ACW-813) |
| Compliant Standards | IC, FCC |
| Power | |
| Voltage Required | 5 V |
| Power Consumption Operational | 5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Modem | |
| Bus | USB |
| Connectivity Technology | Wireless |
| Max Transfer Rate | 300 Mbps |
| Cellular Band | W-CDMA B1/B2/B3/B4/B5/B8 / DC-HSPA+ B1/B2/B3/B4/B5/B8/B1/B2/B3/B4/B5/B8 / LTE B1/B12/B13/B2/B20/B25/B26/B29/B3/B30/B4/B41/B5/B7/B8 |
| Antenna | External detachable |
| Antenna Qty | 3 |
| Dimensions & Weight | |
| Width | 3.9 in |
| Depth | 2.8 in |
| Height | 0.6 in |
| Weight | 4.23 oz |
