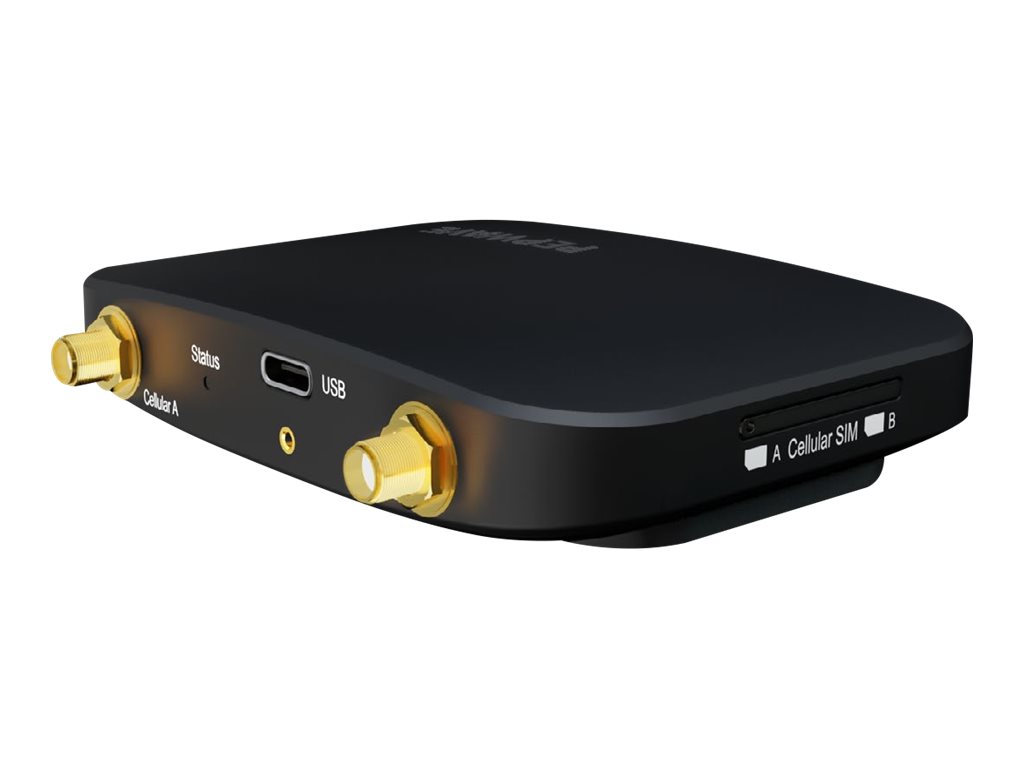

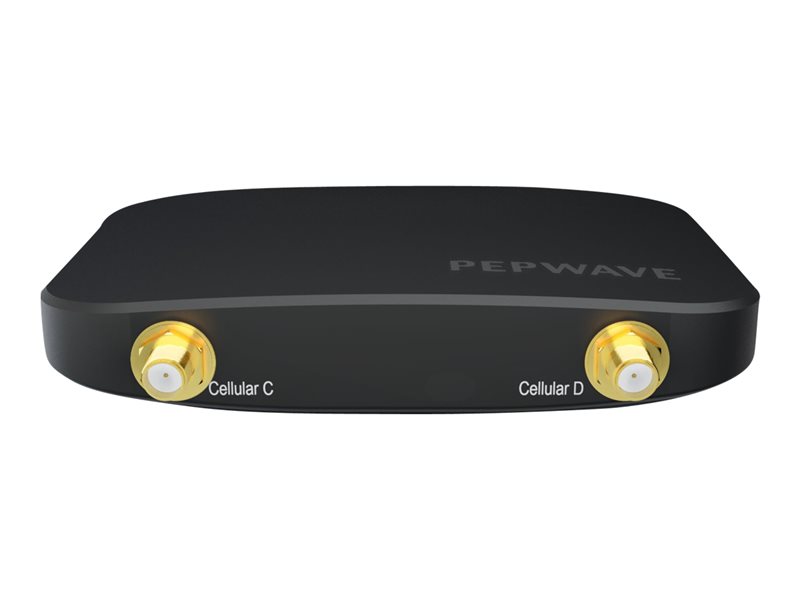

Wireless cellular modem - 5G - USB - 4 Gbps
| Main Specifications | |
|---|---|
| Product Description | Pepwave MAX - wireless cellular modem - 5G |
| Device Type | Wireless cellular modem - USB |
| Form Factor | External |
| Localization | EMEA, Americas |
| Max Transfer Rate | 4 Gbps |
| Cellular Band | LTE B1/B12/B13/B14/B17/B18/B19/B2/B20/B25/B26/B28/B29/B3/B30/B32/B34/B38/B39/B4/B40/B41/B42/B46/B48/B5/B66/B7/B71/B8 / 5G n1/n2/n28/n3/n41/n5/n66/n71/n77/n78/n79 |
| Power | 5 V |
| Dimensions (WxDxH) | 3.9 in x 2.8 in x 0.6 in |
| Weight | 4.23 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Wireless cellular modem |
| Form Factor | External |
| Localization | EMEA, Americas |
| Expansion / Connectivity | |
| Interfaces | 1 x USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| SIM Card Supported | 2 |
| Cables Included | 1 x USB-C cable |
| Included Accessories | 4 LTE/5G LTE Antennas (ACW-234) |
| Compliant Standards | IC, FCC |
| Power | |
| Voltage Required | 5 V |
| Power Consumption Operational | 5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Modem | |
| Bus | USB |
| Connectivity Technology | Wireless |
| Max Transfer Rate | 4 Gbps |
| Cellular Band | LTE B1/B12/B13/B14/B17/B18/B19/B2/B20/B25/B26/B28/B29/B3/B30/B32/B34/B38/B39/B4/B40/B41/B42/B46/B48/B5/B66/B7/B71/B8 / 5G n1/n2/n28/n3/n41/n5/n66/n71/n77/n78/n79 |
| Antenna | External detachable |
| Antenna Qty | 4 |
| Dimensions & Weight | |
| Width | 3.9 in |
| Depth | 2.8 in |
| Height | 0.6 in |
| Weight | 4.23 oz |
