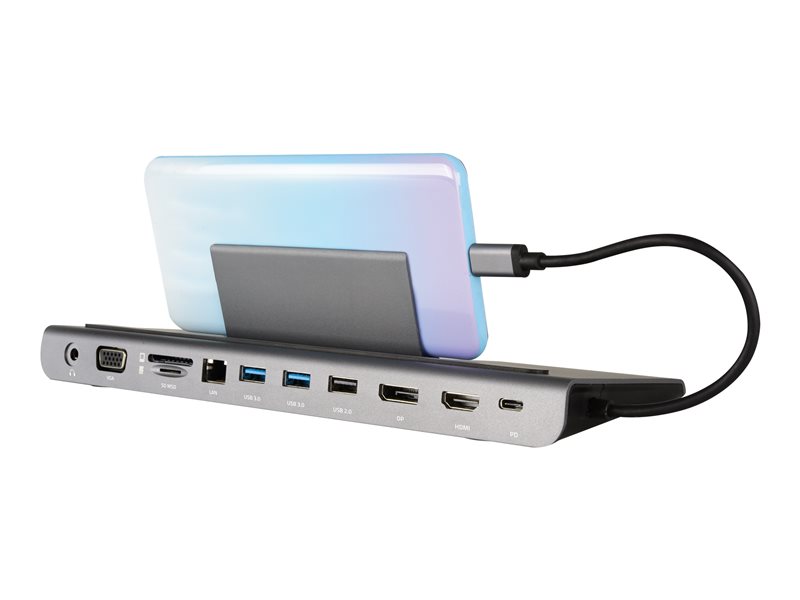

Docking station - USB-C - VGA, HDMI, DP - 1GbE
| Main Specifications | |
|---|---|
| Product Description | Kramer KDock-4 - docking station - USB-C - VGA, HDMI, DP - 1GbE |
| Product Type | Docking station |
| Docking Interface | USB-C |
| Video Interfaces | VGA, HDMI, DP |
| Dimensions (WxDxH) | 10.2 in x 3.5 in x 1 in |
| Weight | 14.11 oz |
| Networking | Gigabit Ethernet |
| General | |
| Product Type | Docking station |
| Width | 10.2 in |
| Depth | 3.5 in |
| Height | 1 in |
| Weight | 14.11 oz |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card ¦ 1 (total) / 1 (free) x microSD |
| Interfaces | 1 x audio / video - HDMI - 19 pin HDMI Type A ¦ 2 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x USB-C with Power Delivery (100 W) - 24 pin USB-C ¦ 1 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x video - VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x audio - line-out - mini-phone stereo 3.5 mm ¦ 1 x USB 2.0 - 4 pin USB Type A |
| Miscellaneous | |
| Cables Included | 1 x USB-C cable - integrated - 7.9 in |
| Features | Aluminum enclosure |
| Compliant Standards | FCC, RoHS, BC1.2, HDCP 1.4 |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Video | |
| Max Resolution Details | 3840 x 2160 - 30 Hz ¦ 1920 x 1080 - 60 Hz (DisplayPort and HDMI simultaneously) ¦ 1920 x 1080 - 60 Hz (VGA only) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 12.5 in |
| Shipping Depth | 5.1 in |
| Shipping Height | 1.2 in |
| Shipping Weight | 17.64 oz |
