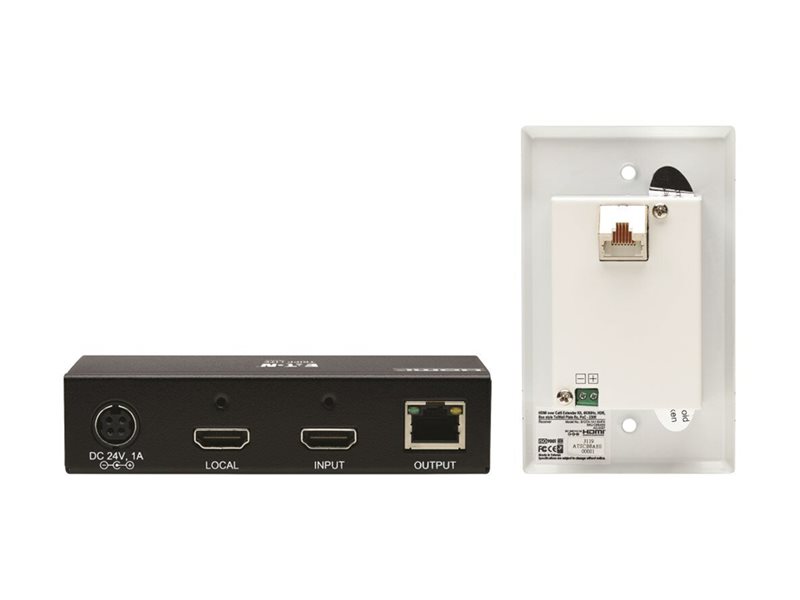

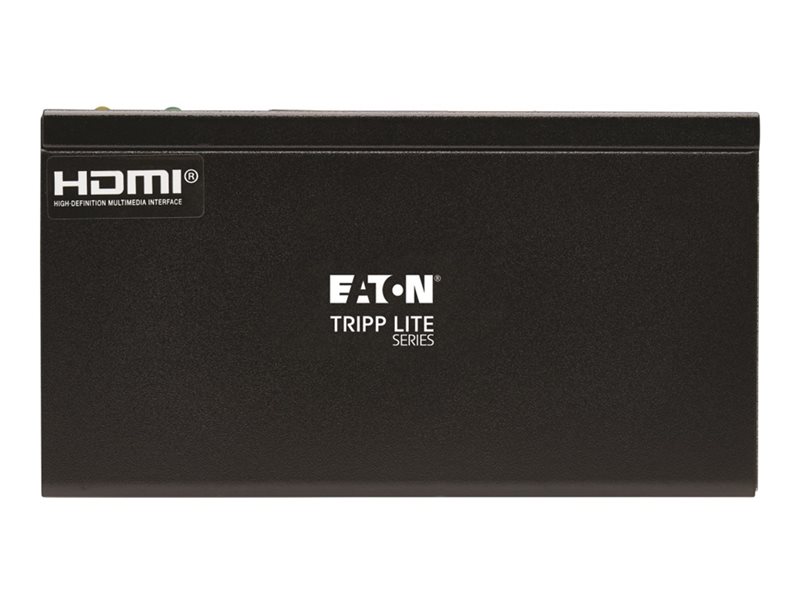

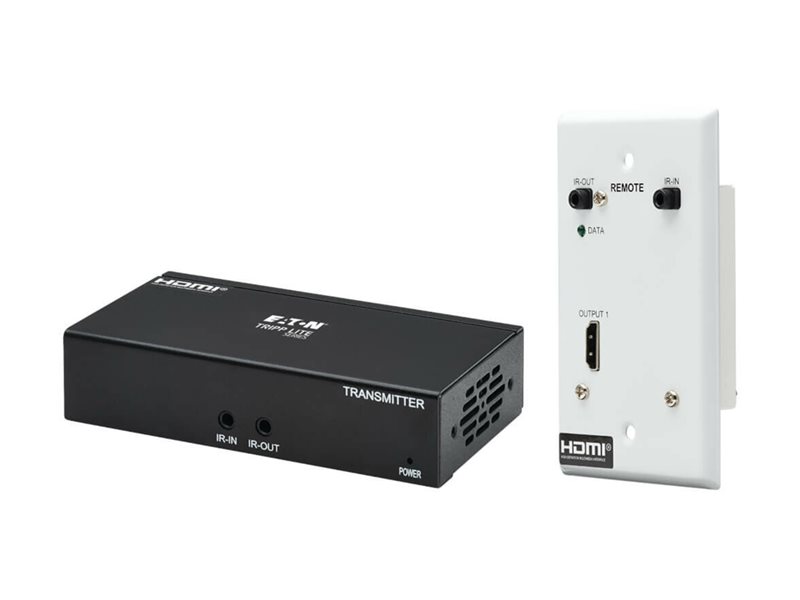

Video/audio extender - HDMI - over CAT 6 - up to 230 ft - TAA Compliant - for P/N: B127A-1A0-FH
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series HDMI over Cat6 Extender Kit, Box Transmitter/Wall Plate Receiver, 4K 60 Hz, 4:4:4, IR, PoC, HDR, HDCP 2.2, 230 ft., TAA - video/audio extender - HDMI - TAA Compliant |
| Device Type | Video/audio extender |
| Form Factor | Wall mountable |
| Localization | Australia, North America, United Kingdom, Europe |
| Data Link Protocol | HDMI |
| Transmission Medium | CAT 6 |
| Max Transfer Distance | 230 ft |
| Power Over Ethernet (PoE) | PoC |
| Power | AC 100-240 V |
| TAA Compliant | Yes |
| Manufacturer Warranty | 1-year warranty |
| Designed For | P/N: B127A-1A0-FH |
| General | |
| Device Type | Video/audio extender |
| Form Factor | Wall mountable |
| Color | White, black |
| Localization | Australia, North America, United Kingdom, Europe |
| Expansion / Connectivity | |
| Interfaces | 1 x audio / video (transmitter input) - 19 pin HDMI Type A female ¦ 1 x audio / video (local unit) - 19 pin HDMI Type A female ¦ 1 x network (transmitter) - RJ-45 female ¦ 2 x IR (input) - phone 3.5 mm female ¦ 2 x IR (output) - phone 3.5 mm female ¦ 1 x network (receiver) - RJ-45 female ¦ 1 x audio / video (receiver output) - 19 pin HDMI Type A female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | 2 mounting brackets, 6 screws, 4 power plug adapters |
| Cables Included | 1 x power cable - 4.5 ft ¦ 2 x IR cable |
| Compliant Standards | CCC, FCC, GS, TUV, UL, cUL, RoHS, REACH |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Max Transfer Distance | 230 ft |
| Status Indicators | Data |
| Features | 3D support, 4K resolution support, 7.1 channel audio support, power over cable (PoC), Dolby TrueHD support, DTS-HD support, HDR support, zero transition delay, 4:4:4 chroma subsampling support, 36-bit True Color support |
| Compliant Standards | HDCP 2.2 |
| Power | |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Installed Qty | 1 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 85% (non-condensing) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Transmitter: 4.5 in x 2.5 in x 1.1 in / 22.9 oz ¦ Receiver: 2.8 in x 1.3 in x 4.5 in / 22.9 oz |
| Compatibility Information | |
| Designed For | P/N: B127A-1A0-FH |
