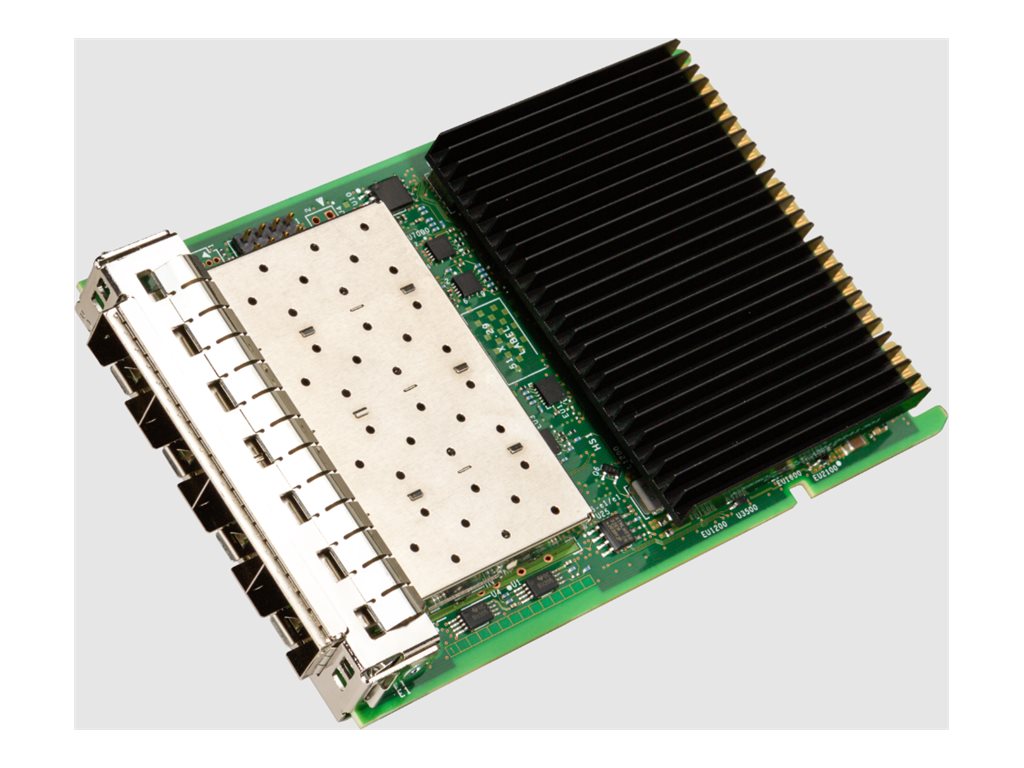

Network adapter - OCP 3.0 - 10Gb Ethernet / 25Gb Ethernet SFP28 x 4
| Main Specifications | |
|---|---|
| Product Description | Intel Ethernet Network Adapter E810-XXVDA4 - network adapter - OCP 3.0 - 10Gb Ethernet / 25Gb Ethernet SFP28 x 4 |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| PCI Specification Revision | PCIe 4.0 |
| Ports | 10Gb Ethernet / 25Gb Ethernet SFP28 x 4 |
| Dimensions (WxDxH) | 4.6 in x 3 in |
| Data Link Protocol | 1GbE, 10GbE, 25GbE |
| Network / Transport Protocol | TCP/IP, UDP/IP, iWARP, MCTP, HTTPs, RBT |
| Processor | 1 x Intel E810-CAM1 |
| Compliant Standards | OCP 3.0, IEEE 1588v1, IEEE 1588v2, IEEE 802.1p, IEEE 802.3by |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| PCI Specification Revision | PCIe 4.0 |
| Expansion / Connectivity | |
| Interfaces | 4 x 25Gb Ethernet - SFP28 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 90 day money back guarantee - lifetime |
| Miscellaneous | |
| Compliant Standards | NIST, CRC, DMTF, UEFI, FCC Class A certified, UL, VCCI, BSMI, C-Tick, KCC, ROHS Directive 2011/65/EU, ROHS Directive 2015/863/EU |
| Networking | |
| Ports | 10Gb Ethernet / 25Gb Ethernet SFP28 x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, iWARP, MCTP, HTTPs, RBT |
| Remote Management Protocol | SMBus, SNMP, RMON, PLDM, HTTPS |
| Status Indicators | Link/activity/speed |
| Features | ADQ, DDP, RDMA support, RoCE v2, DPDK, PTP, IP SLAs, NVMe-oF, IETF mapping, flow control, congestion management, NFV, ZTNA, ACL support, Storm Control, Intel Flow Director, VLAN support, VMDq, SR-IOV, VMLB, Advanced Packet Filtering, VLAN Tagging, VXLAN, GENEVE support, NVGRE, MPLS, VxLAN-GPE with NSH, QoS, WFQ, DSCP support, WDT, On-chip QoS and Traffic Management, FPP, intelligent offloads, DDIO Technology, Adaptive Virtual Function, UEFI support, NC-SI |
| Compliant Standards | OCP 3.0, IEEE 1588v1, IEEE 1588v2, IEEE 802.1p, IEEE 802.3by |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 90% RH (non-condensing) |
| Processor / Memory | |
| Processor | 1 x Intel E810-CAM1 |
| Dimensions & Weight | |
| Depth | 4.6 in |
| Height | 3 in |
