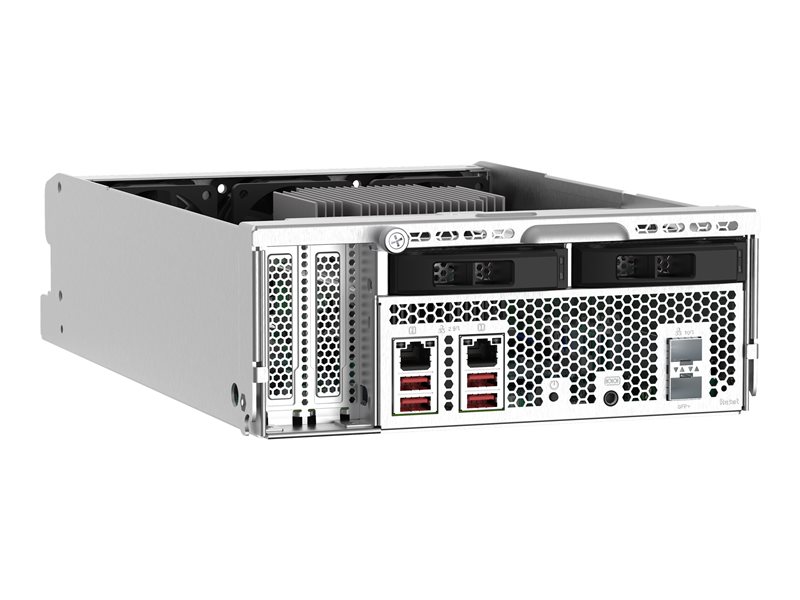

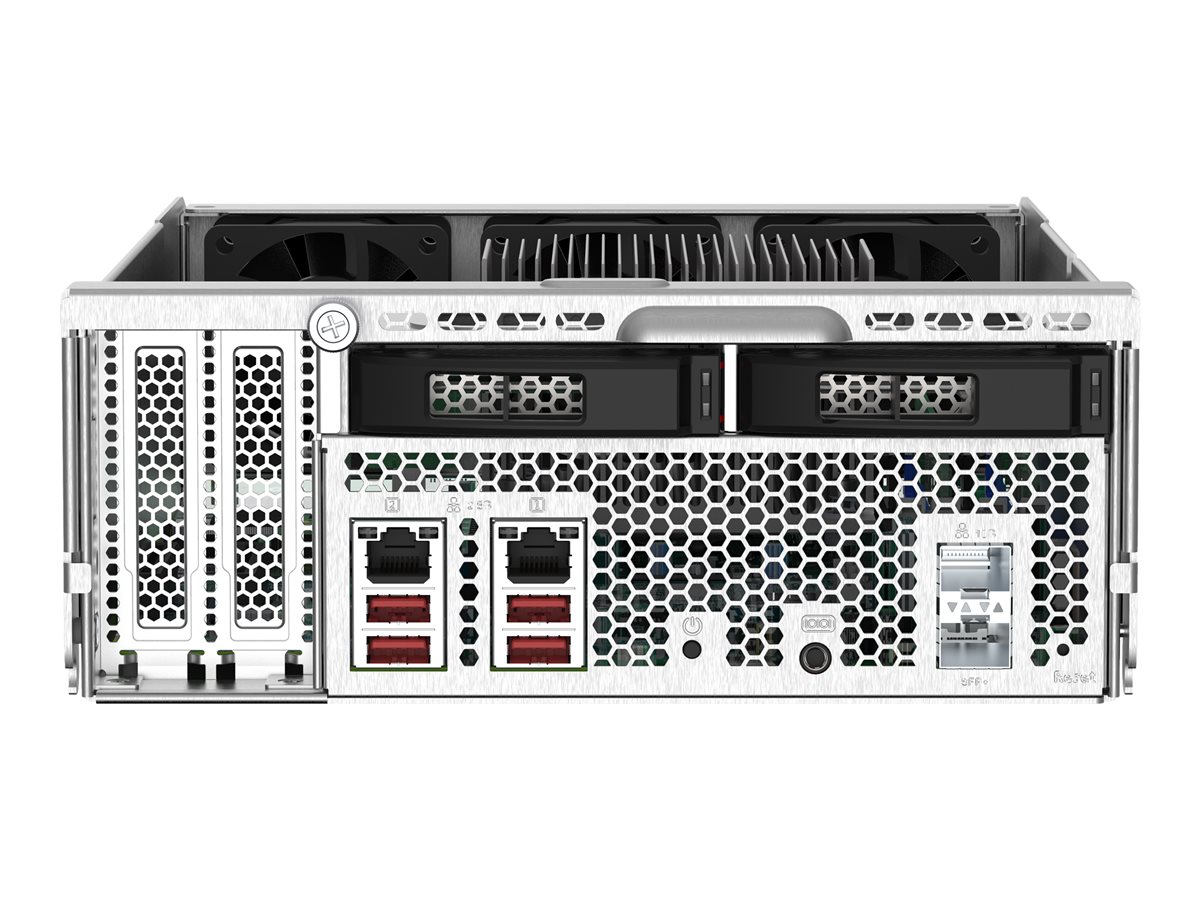

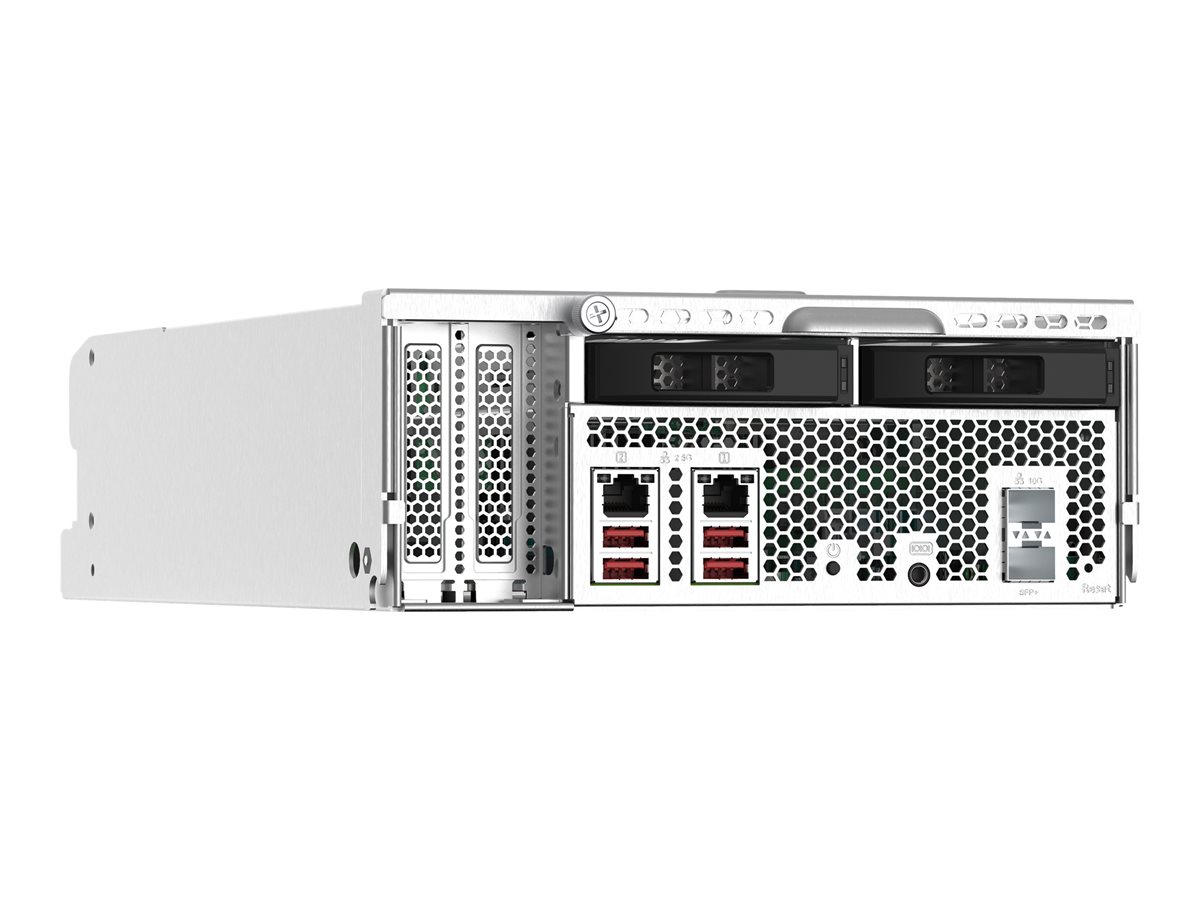

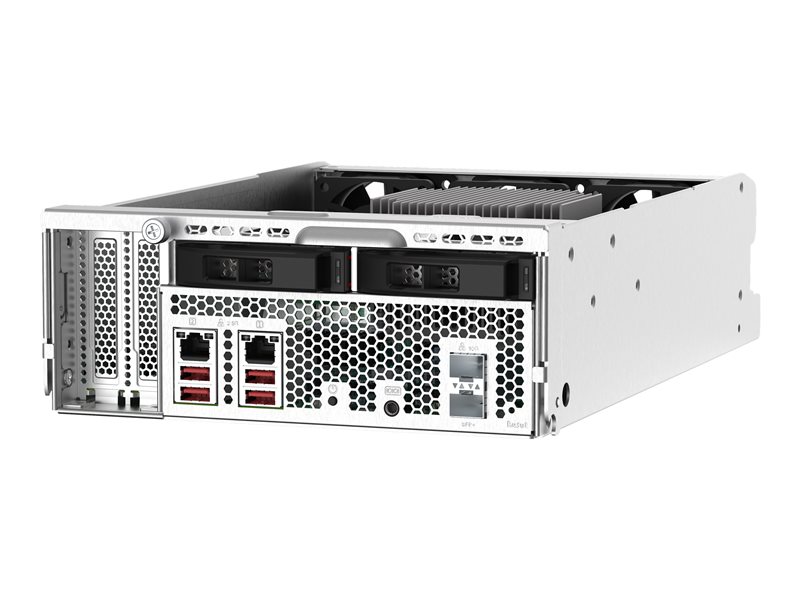

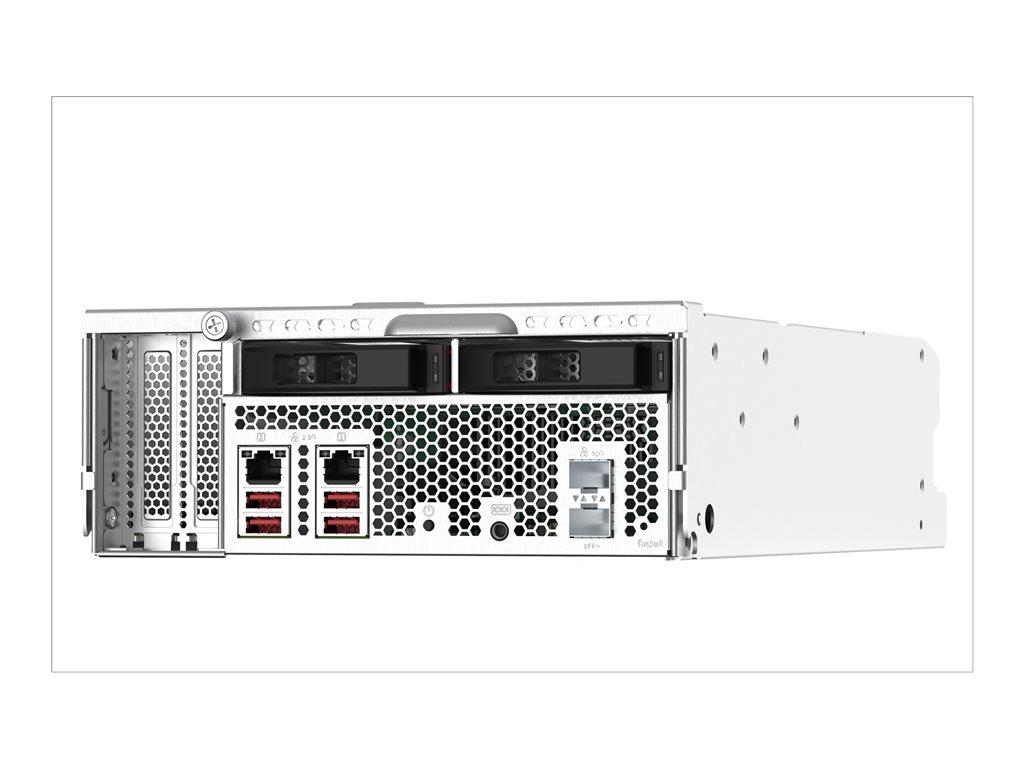

NAS server - 2 bays - RAM 16 GB - 2.5 Gigabit Ethernet / 10 Gigabit Ethernet
| Main Specifications | |
|---|---|
| Product Description | QNAP TNS-H1083X-E2236-16G - NAS server |
| Device Type | NAS server |
| Host Connectivity | 2.5 Gigabit Ethernet / 10 Gigabit Ethernet |
| Installed Devices / Modules Qty | 0 (installed) / 2 (max) |
| Weight | ) |
| Processor | 1 x Intel Xeon E-2236 3.4 GHz (6-core) |
| Networking | 100Mb LAN, 1GbE, 10GbE, 2.5GbE |
| RAM | 16 GB |
| Storage Operating System | QNAP QuTS hero 4.5.3 |
| General | |
| Device Type | NAS server |
| Host Connectivity | 2.5 Gigabit Ethernet / 10 Gigabit Ethernet |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 2 (max) |
| Weight | ) |
| Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 2 (free) x hot-swap - 2.5" |
| Expansion Slots | 4 (total) / 2 (free) x DIMM 288-pin ¦ 2 x PCI Express ¦ 2 x M.2 |
| Interfaces | 4 x USB 3.2 Gen 2 - Type A ¦ 2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 2 x Ethernet 10Gb - SFP+ |
| Miscellaneous | |

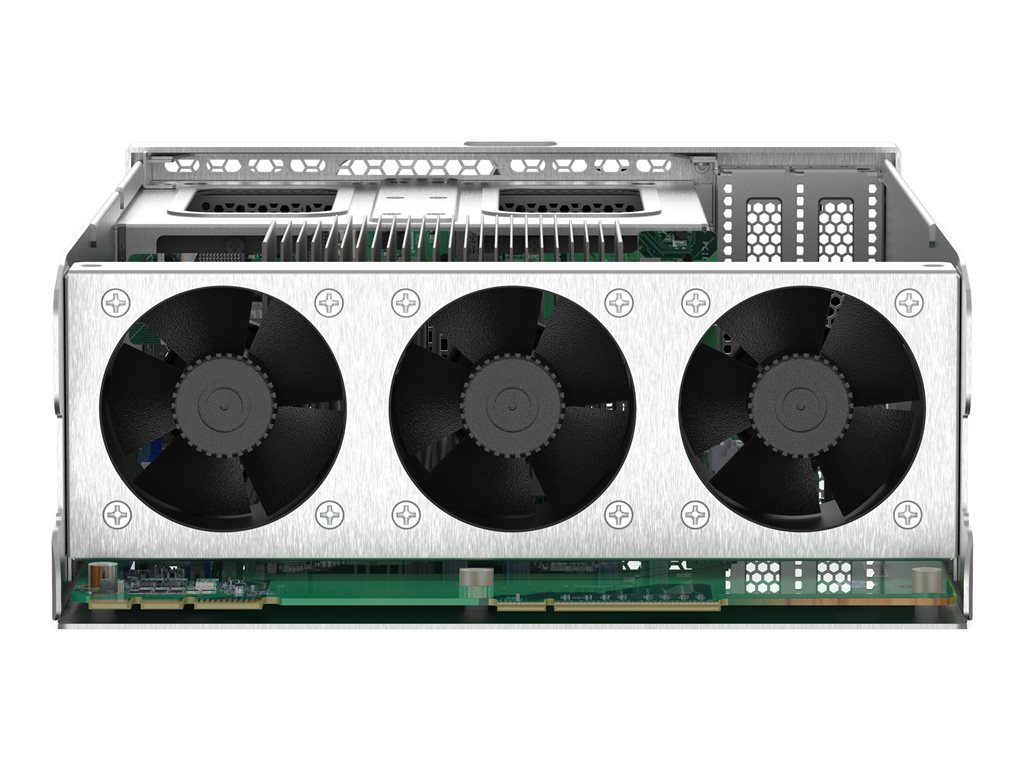

| Features | Built-in 3 cooling fans |
| Networking | |
| Data Link Protocol | 100Mb LAN, 1GbE, 10GbE, 2.5GbE |
| Features | Jumbo Frames support, failover protection, port trunking |
| Encryption Algorithm | AES-NI |
| Software / System Requirements | |
| Storage Operating System | QNAP QuTS hero 4.5.3 |
| Processor / Memory | |
| Processors Installed | 1 x Intel Xeon E-2236 3.4 GHz |
| Number of Cores | 6-core |
| Max Supported Qty | 1 |
| Max Turbo Speed | 4.8 GHz |
| RAM | 16 GB (installed) / 128 GB (supported) - DDR4 |
| Features | Unbuffered, ECC |
