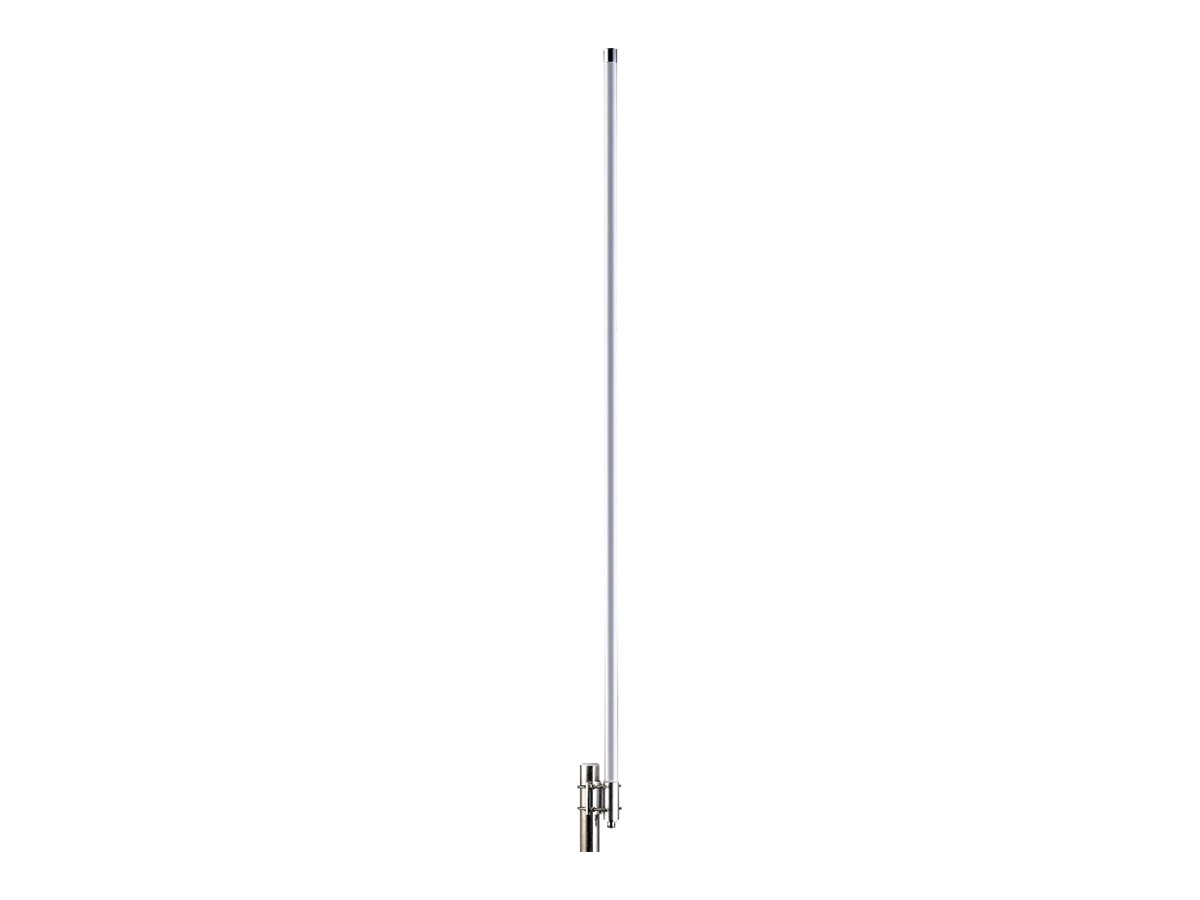

Antenna - collinear dipole array - 12 dBi - omni-directional - outdoor, wall-mountable, pole mount, indoor - white
| Main Specifications | |
|---|---|
| Product Description | Barracuda antenna |
| Product Type | Antenna |

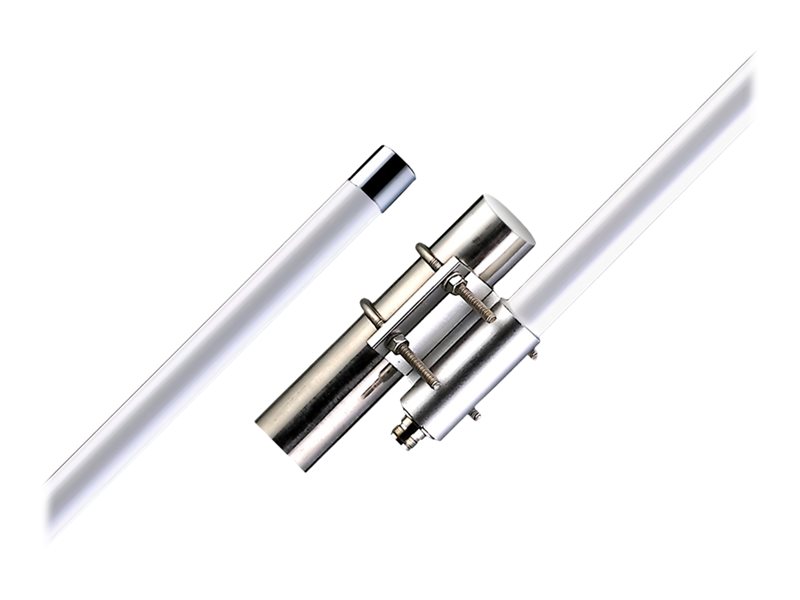

| Package Content | Pole/wall brackets, U-bolt |
| Dimensions (WxDxH) | 0.9 in x 0.9 in x 88.2 in |
| Weight | 35.06 oz |
| Product Material | Aluminum, fiberglass |
| Color | White |
| Form Factor | Collinear dipole array |
| Antenna Placing / Mounting | Outdoor, wall-mountable, pole mount, indoor |
| Compatibility | LoRa 915 MHz, Sigfox, LPWA |
| Frequency Range | 902 - 928 MHz |
| Gain | 12 dBi |
| Directivity | Omni-directional |
| Compliant Standards | RoHS |
| General | |
| Product Type | Antenna |
| Package Content | Pole/wall brackets, U-bolt |
| Product Material | Aluminum, fiberglass |
| Width | 0.9 in |
| Depth | 0.9 in |
| Height | 88.2 in |
| Weight | 35.06 oz |
| Enclosure Color | White |
| Miscellaneous | |
| Features | UV protection, vertical polarisation |
| Compliant Standards | RoHS |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Cabling & Wiring | |
| Connector Provided | 1 x N-Series connector female |
| Antenna | |
| Form Factor | Collinear dipole array |
| Antenna Placing / Mounting | Outdoor, wall-mountable, pole mount, indoor |
| Compatibility | LoRa 915 MHz, Sigfox, LPWA |
| Frequency Range | 902 - 928 MHz |
| Gain | 12 dBi |
| Directivity | Omni-directional |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 12° |
| Impedance | 50 Ohm |
