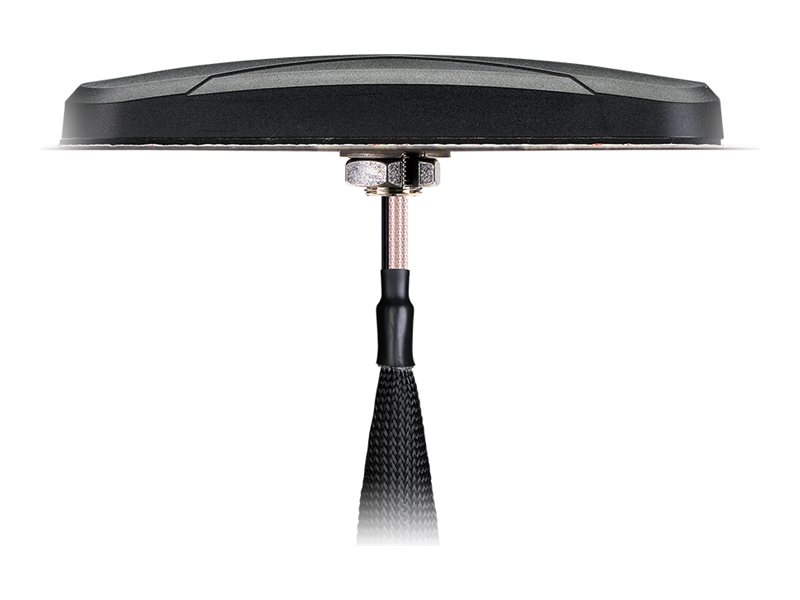

Antenna - cellular, Wi-Fi, navigation - permanent mount, screw mount
| Main Specifications | |
|---|---|
| Product Description | Taoglas Storm MA460 - antenna |
| Device Type | Antenna |
| Intended For | Cellular, Wi-Fi, navigation |
| Antenna Placing / Mounting | Permanent mount, screw mount |
| Dimensions (WxDxH) | 8.5 in x 3.7 in x 1.2 in |
| Weight | 2.47 lbs |
| Compatibility | LTE, Wi-Fi, GPS, GLONASS, GALILEO, BeiDou, 2G, 3G, 4G |
| Frequency Range | 1575.42 MHz, 1602 MHz, 1561.098 MHz, 698 - 803 MHz, 824 - 894 MHz, 880 - 960 MHz, 1.71 - 1.88 GHz, 1850 - 1990 MHz, 1920 - 2170 MHz, 2490 - 2690 MHz, 3300 - 3600 MHz, 2.4 - 2.5 GHz, 4.9 - 5.85 GHz |
| Features | IP67, waterproof, VSWR < 2:1, low profile, MIMO technology, vandal resistant, right-hand circular polarization (RHCP), linear polarization, RoHS, ground plane independent |
| General | |
| Product Type | Antenna |
| Intended For | Cellular, Wi-Fi, navigation |
| Antenna Placing / Mounting | Permanent mount, screw mount |
| Width | 8.5 in |
| Depth | 3.7 in |
| Height | 1.2 in |
| Weight | 2.47 lbs |
| Product Material | PC/ABS, nickel-plated aluminum |
| Miscellaneous | |
| Cables Included | 4 x antenna cable - 10 ft |
| Antenna | |
| Compatibility | LTE, Wi-Fi, GPS, GLONASS, GALILEO, BeiDou, 2G, 3G, 4G |
| Frequency Range | 1575.42 MHz, 1602 MHz, 1561.098 MHz, 698 - 803 MHz, 824 - 894 MHz, 880 - 960 MHz, 1.71 - 1.88 GHz, 1850 - 1990 MHz, 1920 - 2170 MHz, 2490 - 2690 MHz, 3300 - 3600 MHz, 2.4 - 2.5 GHz, 4.9 - 5.85 GHz |
| Impedance | 50 Ohm |
| Features | IP67, waterproof, VSWR < 2:1, low profile, MIMO technology, vandal resistant, right-hand circular polarization (RHCP), linear polarization, RoHS, ground plane independent |
| Connector Provided | |
| Type | 2 x antenna - SMA (male) ¦ Wi-Fi antenna - RP-SMA (male) ¦ GPS antenna - SMA (male) |
