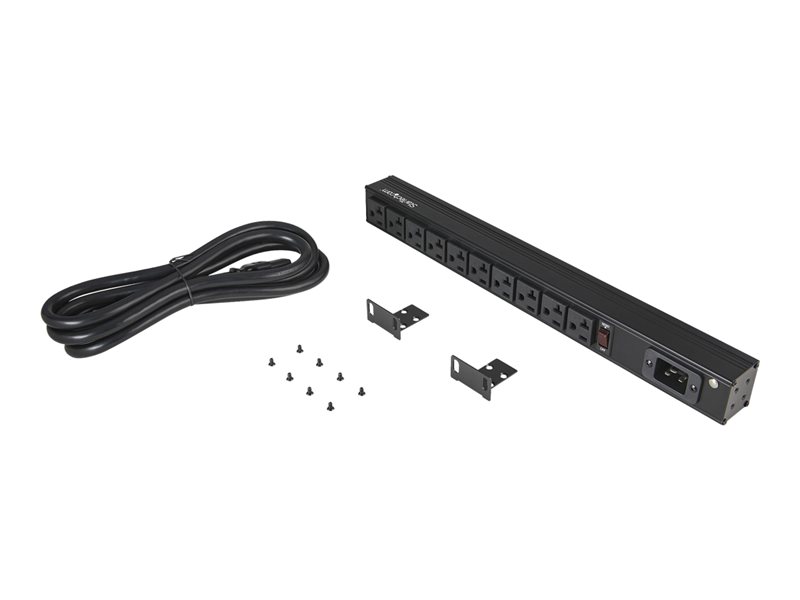

Power Distribution Unit (RKPW101920) - Power strip (rack-mountable) - 125 V - 2500 VA - input: IEC 60320 C20 - output connectors: 11 (IEC 60320 C19, 10 x NEMA 5-20R) - 1U - 19" - 8 ft cord - black
| Main Specifications | |
|---|---|
| Product Description | StarTech 10 Outlet Rack Mount Power Strip 125V/16 Amp, 1U Horizontal 19" Rackmount PDU, NEMA 5-20P Input, NEMA 5-15R/20R Outlets, UL Listed, Rack Mount PDU/Power Bar, 8ft Power Cord - Power Distribution Unit (RKPW101920) - power strip - 2500 VA |
| Device Type | Power strip - rack-mountable |
| Cord Length | 8 ft |
| Rack Size | 19" - 1U |
| Weight | 2.65 lbs |
| Input Voltage | 125 V |
| Output Voltage | 125 V |
| Power Capacity | 2500 VA |
| Input Connectors | 1 x power IEC 60320 C20 |
| Output connectors | 10 x power NEMA 5-20R ¦ 1 x power IEC 60320 C19 |
| Color | Black |
| Dimensions (WxDxH) | 17.5 in x 5.1 in x 2 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power strip - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Cord Length | 8 ft |
| Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable - external - 8 ft |
| Features | Horizontal mount, 4-post, 2-post |
| Compliant Standards | UL, RoHS, ANSI/EIA-RS-310-D |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% |
| Power Device | |
| Input Voltage | 125 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C20 |
| Power Output Connectors Details | 10 x power NEMA 5-20R ¦ 1 x power IEC 60320 C19 |
| Output Voltage | 125 V |
| Max Electric Current | 16 A |
| Power Capacity | 2500 VA |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 5.1 in |
| Height | 2 in |
| Weight | 2.65 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 17.7 in |
| Shipping Depth | 5.2 in |
| Shipping Height | 2.4 in |
| Shipping Weight | 2.65 lbs |
